Wood log splitter needs professional skill to operate, for your safety usage, please read our usage manual.
STRONGPOINTS FOLLOWING: PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL TELESCOPING CYLINDER USAGE BETTER LEVEL OF 1050MM CYLINDER ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN | ||

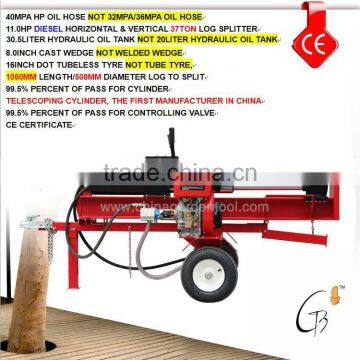

MODEL NO. | LS37T-B1-1050MM (DIESEL ENGINE) | |
LOG SPLITTER SPECIFICATION FOLLOWING | ||
OPERATING TYPE | HORIZONTAL TYPE AND VERTICAL TYPE | |
MAX. FORCE | 37TON | |
COUPLER | 2.0INCH | |
WEDGE | 8.0" CAST WEDGE | |
CYLINDER | 5.0INCH | |
PUMP FLOW | 2-STAGE, 16GPM (GALLON PER MINUTE) | |
LOG LENGTH TO SPLIT | 1100MM/44INCH | |
LOG DIAMETER TO SPLIT | 508MM/20INCH | |
AUTOMATIC CYLINDER RETURN | YES | |
JACK STAND (FRONT AND REAR) | YES | |
TIRE | DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR TRAILER USE ONLY | |
HP OIL HOSE | 2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY | |
H-BEAM | INDUSTRIAL STANDARD, 175MM*175MM | |
HYDRAULIC TANK CAPACITY | 30.5LITER | |
N.W./PC | 300.50KGS | |
G.W./PC | 310.50KGS | |
WHOLE MACHINE CERTIFICATE | CE | |
PACKING SIZE | 2050MM*560MM*540MM | |
QUANTITY IN CONTAINER | 40PCS/20FT; 88PCS/40FT/40HQ | |
ENGINE SPECIFICATION FOLLOWING | ||
ENGINE | 186F, 11.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT | |
ENGINE CERTIFICATE | CE,EPA, EUROII | |
ENGINE SPEED | 3600RPM | |
POWER TAKE OFF | CRANKSHAFT OR CAMSHAFT | |
BORE*STROKE | 86MM*70MM | |
DISPLACEMENT | 418ML | |
FUEL TANK CAPACITY | 5.5L | |
LUBE OIL CAPACITY | 1.65L | |
NET WEIGHT OF ENGINE | 48.00KGS | |
START TYPE | RECOIL OR RECOIL/ELECTRIC | |
GOOD QUALITY IS FROM COMPARISON. | ||
NO. | OUR MACHINE | MACHINE OF OTHER SUPPLIERS |
WEDGE | We use cast wedge which can support 3800PSI pressure | Other suppliers use welded wedge which can support less 2500PSI pressure |
H-BEAM | We use 175mm*175mm industrial standard H-beam | Some suppliers use 150mm*150mm H-beam or even use welded iron plate as beam which is easy bended |
END-PLATE | We use 40mm or 50mm thickness steel plate as end-plate | Other suppliers use U-steel or 20mm thickness steel plate and some filler as end-plate |
TIRE | We use DOT standard tubeless tire which is for trailer use only | Other suppliers use tube tire which can't be used for highway usage. |
HYDRAULIC TANK | We use 30.5liter volume hydraulic tank, big volume tank can let the machine work for long time and keep normal pressure | Other suppliers use 20liters volume hydraulic tank. Small volume tank leads to machine being high temperature in short time |
OUTRIGGER LEG | We supply 2 outrigger legs with same size for each one machine | Other suppliers supply 1 outrigger leg |
CYLINDER | We promise that our hydraulic cylinder is with at most 1% leaking oil percentage | Other suppliers can't promise same. |
OIL PUMP | We promise our 2-stage pump in good quality, at least 99.5% percent of pass | Other suppliers can't promise same |
CONTROLLING VALVE | We promise our controlling valve in good quality, at least 98% percent of pass | Other suppliers can't promise same.
|
HYDRAULIC TANK | We promise our hydraulic tank 100% w/o leaking oil | Other suppliers can't promise same. |
HERE ONLY ONE IS! | ||
JUST WE MAKE LOG STRIP FOR LOG SPLITTER | ||
JUST WE MAKE TELESCOPING CYLINDER FOR 1050MODEL | ||
JUST WE MAKE TELESCOPING CYLINDER FOR 1050MODEL | ||
WE DARE SAY | ||
We make what they are making and what they can’t make | ||
Fewer suppliers can meet you quality if we can’t’ | ||
Here you can know what profession for both log splitter and log saw is. | ||
