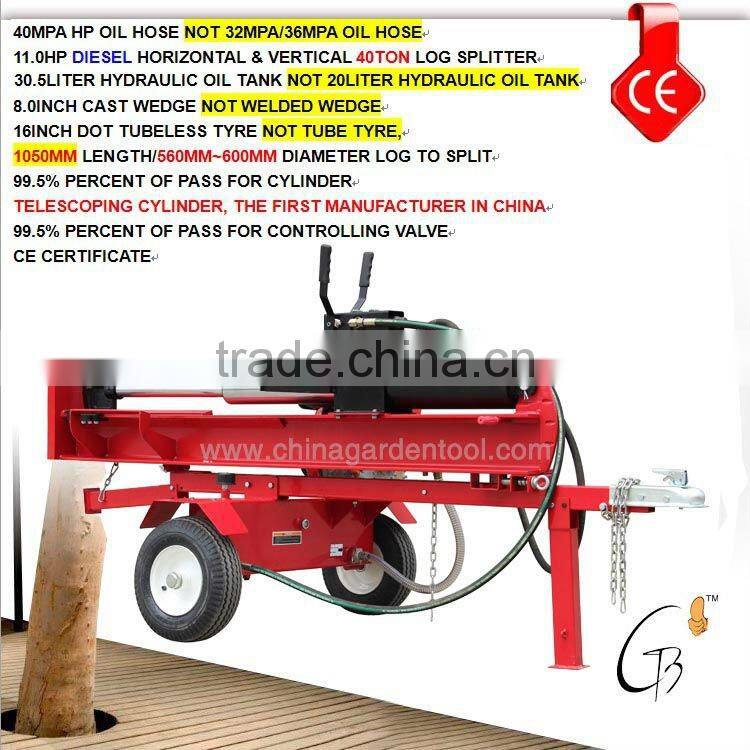

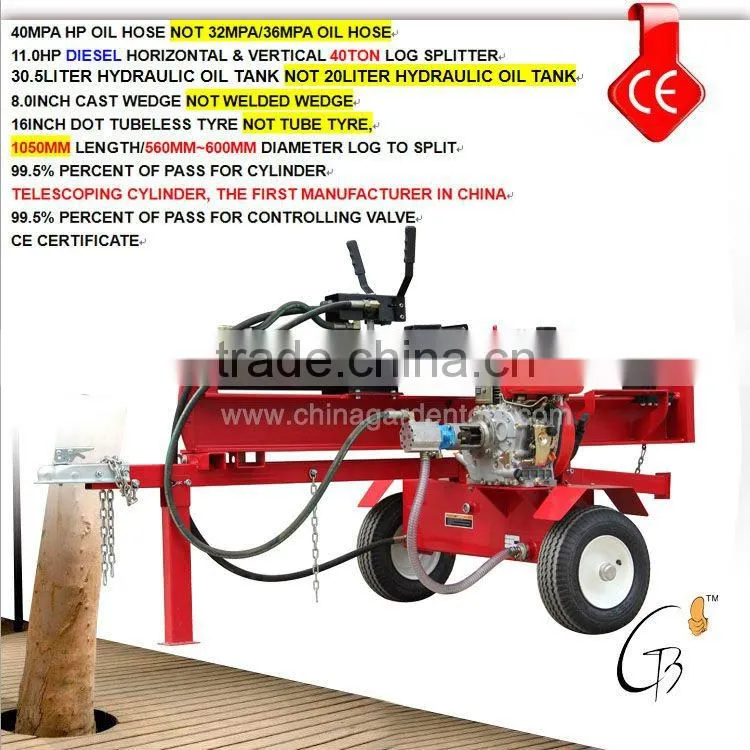

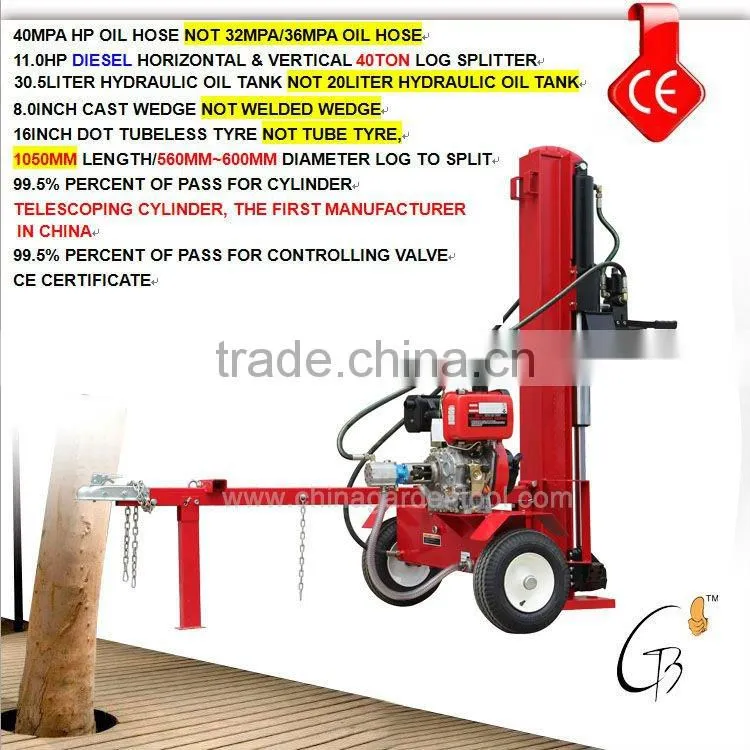

Help CenterLog Cutter and Splitter Machine (LS40T-B1-1050MM)
Related Products
-
Home Usage High Quality Professional Manufacturer Wood Splitter Machine(24ton,30ton,37ton,40ton)US$ 920 - 1,200MOQ: 10 Pallets -
Wood Cutter Splitter (LS37T-B1-1050MM)US$ 900 - 1,180MOQ: 10 Pallets
-
37ton Wood Log Splitter (LS37T-B1-1050MM)US$ 900 - 1,180MOQ: 10 Pallets
-
Gasoline Engine Log Splitter (LS37T-B3-1050mm)US$ 750 - 1,000MOQ: 10 Pallets
-
Gas Log Splitter (LS37T-B3-1050mm)US$ 750 - 1,000MOQ: 10 Pallets
Specifications
log splitter,screw log splitter,wood splitter,screw log splitter for sale,log splitter for sale,tempest wood splitter,diesel loglog cutter and splitter machine is heavy-duty log splitter
wood cutter splitter can split 1050mm to 1080mm long log
|
STRONGPOINTS FOLLOWING: PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL TELESCOPING CYLINDER USAGE BETTER LEVEL OF 1050MM CYLINDER ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN | ||
MODEL NO. |
LS40T-B1-1050MM (DIESEL ENGINE) |
|
LOG SPLITTER SPECIFICATION FOLLOWING | ||
OPERATING TYPE |
HORIZONTAL TYPE AND VERTICAL TYPE |
|
MAX. FORCE |
40TON |
|
COUPLER |
2.0INCH |
|
WEDGE |
8.0" CAST WEDGE |
|
CYLINDER |
5.0INCH |
|
PUMP FLOW |
2-STAGE, 16GPM (GALLON PER MINUTE) |
|
LOG LENGTH TO SPLIT |
1100MM/44INCH |
|
LOG DIAMETER TO SPLIT |
560MM~650MM |
|
AUTOMATIC CYLINDER RETURN |
YES |
|
JACK STAND (FRONT AND REAR) |
YES |
|
TIRE |
DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR HIGHWAY USAGE |
|
HP OIL HOSE |
2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY |
|
H-BEAM |
INDUSTRIAL STANDARD, 175MM*175MM |
|
HYDRAULIC TANK CAPACITY |
30.5LITER |
|
N.W./PC |
304.50KGS |
|
G.W./PC |
314.50KGS |
|
WHOLE MACHINE CERTIFICATE |
CE |
|
PACKING SIZE |
2050MM*560MM*540MM |
|
QUANTITY IN CONTAINER |
40PCS/20FT; 88PCS/40FT/40HQ |
|
ENGINE SPECIFICATION FOLLOWING | ||
ENGINE |
186F, 11.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT |
|
ENGINE CERTIFICATE |
CE,EPA, EUROII |
|
ENGINE SPEED |
3600RPM |
|
POWER TAKE OFF |
CRANKSHAFT OR CAMSHAFT |
|
BORE*STROKE |
86MM*70MM |
|
DISPLACEMENT |
418ML |
|
FUEL TANK CAPACITY |
5.5L |
|
LUBE OIL CAPACITY |
1.65L |
|
NET WEIGHT OF ENGINE |
48.00KGS |
|
START TYPE |
RECOIL OR RECOIL/ELECTRIC |
|
