Specifications

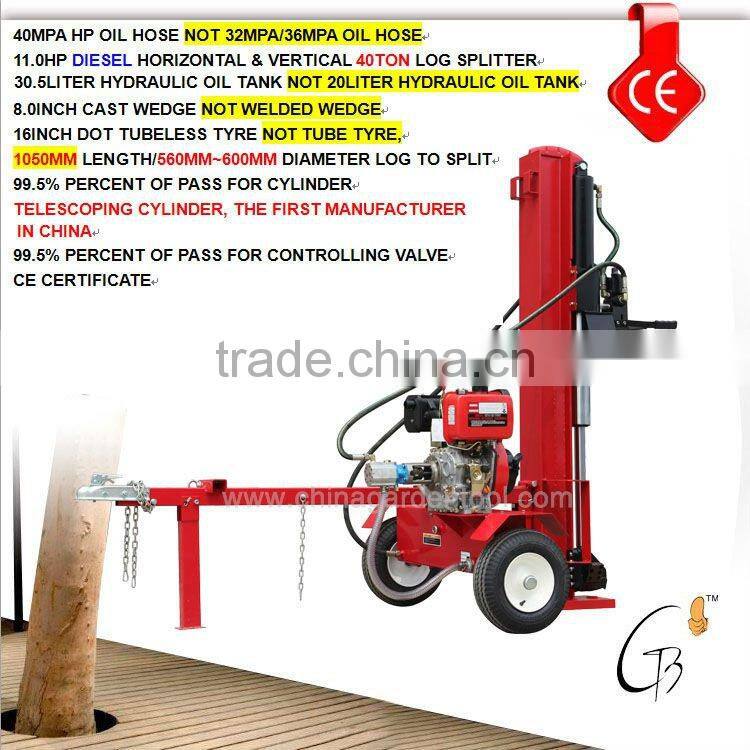

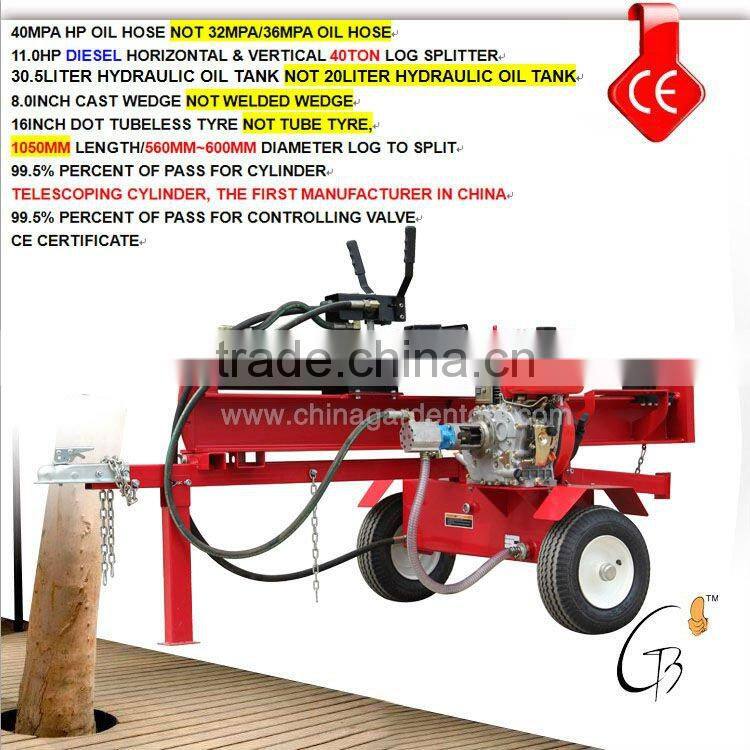

home usage high quality professional manufacturer wood splitter machine,log splitter,screw log splitter,wood splitterhome usage high quality professional manufacturer wood splitter machine(24ton,30ton,37ton,40ton)
wood splitter machine is one kind of diesel engine log splitter.
It is heavy duty log splitter to split 1050mm to 1080mm long log and 650mm diameter log.
the wood splitter machine'S MOQ is 10pcs
STRONGPOINTS FOLLOWING: PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL TELESCOPING CYLINDER USAGE BETTER LEVEL OF 1050MM CYLINDER ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN | ||
MODEL NO. | LS40T-B1-1050MM (DIESEL ENGINE) | |
LOG SPLITTER SPECIFICATION FOLLOWING | ||
OPERATING TYPE | HORIZONTAL TYPE AND VERTICAL TYPE | |
MAX. FORCE | 40TON | |
COUPLER | 2.0INCH | |
WEDGE | CAST WEDGE | |
CYLINDER | 5.0INCH | |
PUMP FLOW | 2-STAGE, 16GPM (GALLON PER MINUTE) | |
LOG LENGTH TO SPLIT | 1100MM/44INCH | |
LOG DIAMETER TO SPLIT | 560MM~650MM | |
AUTOMATIC CYLINDER RETURN | YES | |
JACK STAND (FRONT AND REAR) | YES | |
TIRE | DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR HIGHWAY USAGE | |
HP OIL HOSE | 2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY | |
H-BEAM | INDUSTRIAL STANDARD, 175MM*175MM, 2M | |
HYDRAULIC TANK CAPACITY | 30.5LITER | |
N.W./PC | 304.50KGS | |
G.W./PC | 314.50KGS | |
WHOLE MACHINE CERTIFICATE | CE | |
PACKING SIZE | 2050MM*560MM*540MM | |
QUANTITY IN CONTAINER | 40PCS/20FT; 88PCS/40FT/40HQ | |
ENGINE SPECIFICATION FOLLOWING | ||
ENGINE | 186F, 11.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT | |
ENGINE CERTIFICATE | CE,EPA, EC-II, EMC | |
ENGINE SPEED | 3600RPM | |
POWER TAKE OFF | CRANKSHAFT OR CAMSHAFT | |
BORE*STROKE | 86MM*70MM | |
DISPLACEMENT | 418ML | |
FUEL TANK CAPACITY | 5.5L | |
LUBE OIL CAPACITY | 1.65L | |
NET WEIGHT OF ENGINE | 48.00KGS | |
START TYPE | RECOIL OR RECOIL/ELECTRIC | |
