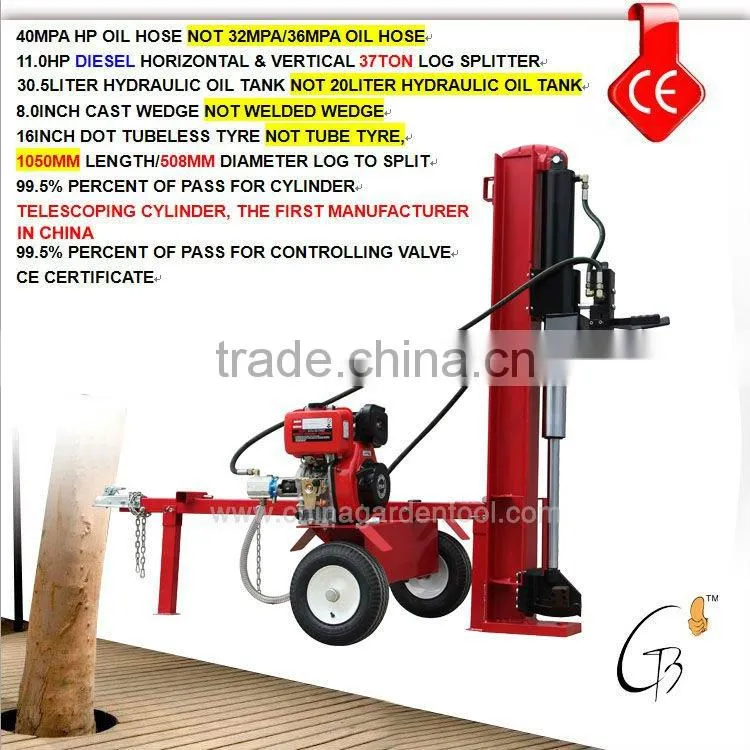

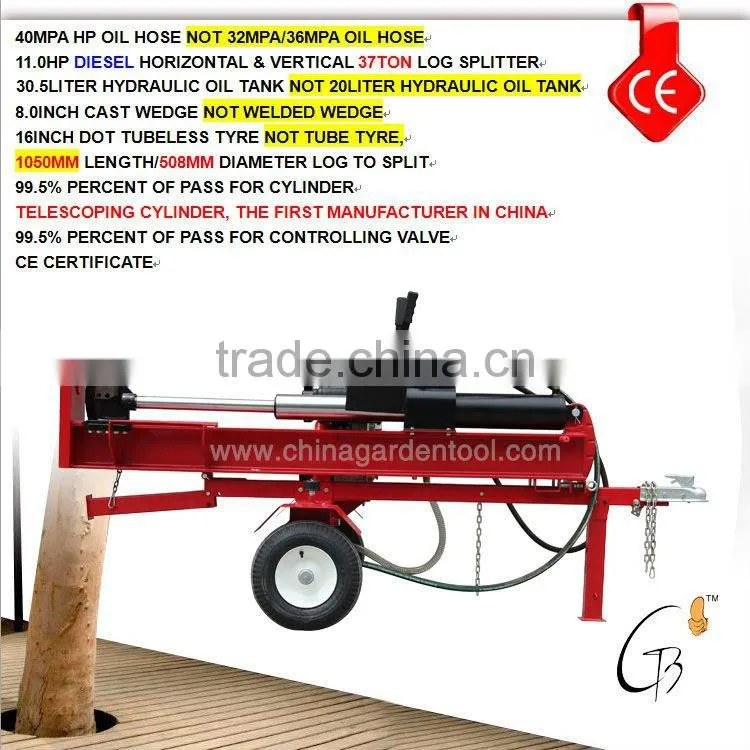

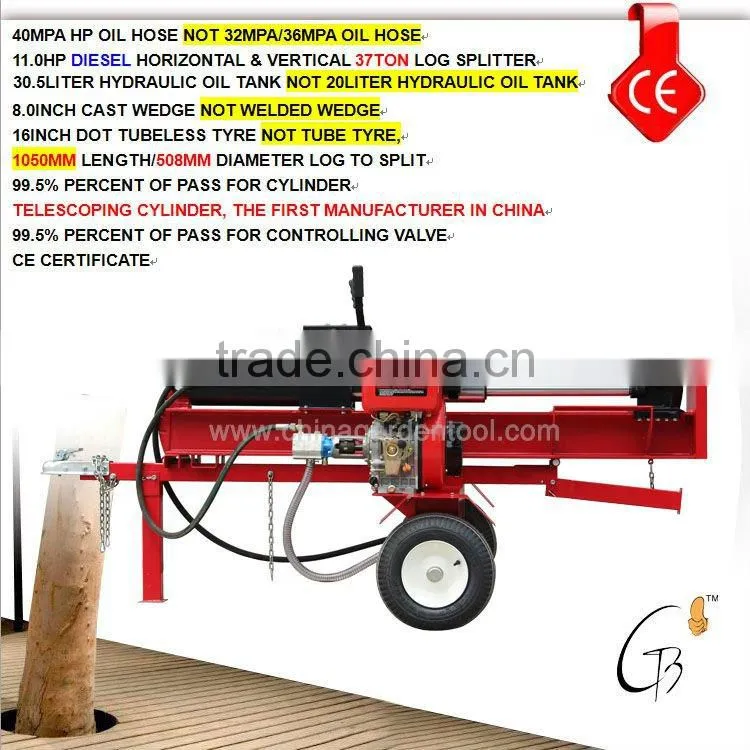

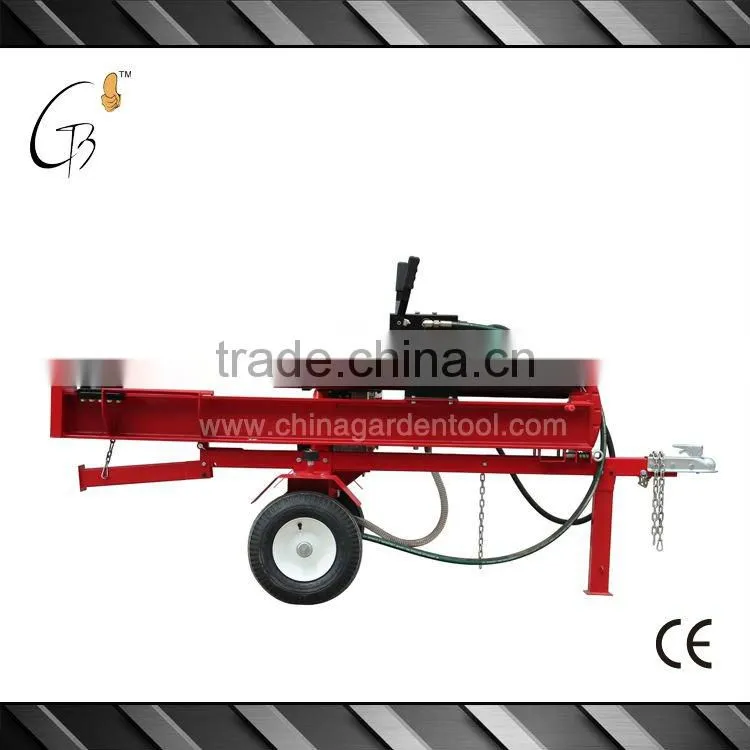

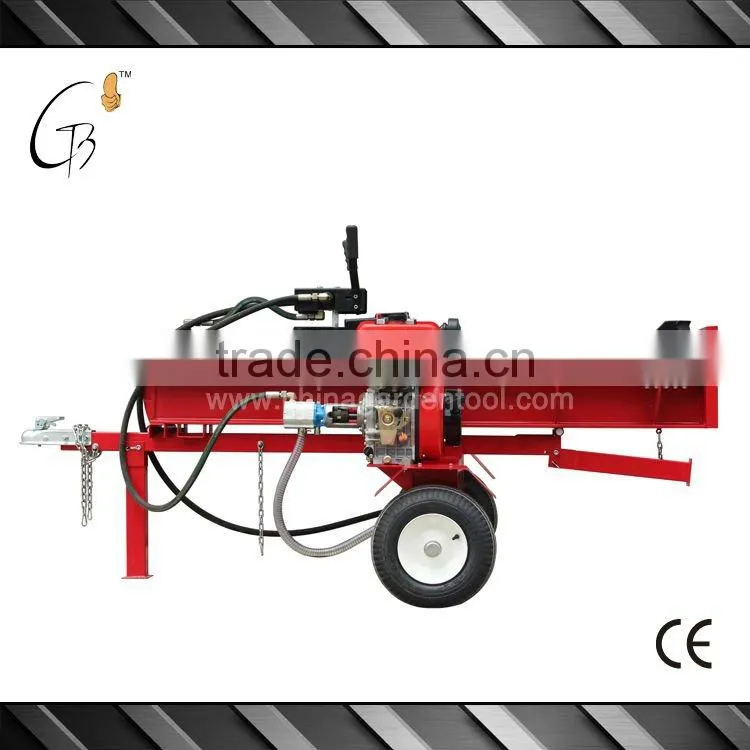

wood cutter splitter (LS37T-B1-1050MM)

STRONGPOINTS FOLLOWING:

PATENT DESIGN, ONLY ONE SUPPLIER IN CHINA, OEM DESIGN

SPECIAL H-BEAM, SPECIAL STRENGTHEN MODEL

TELESCOPING CYLINDER USAGE

BETTER LEVEL OF 1050MM CYLINDER

ONLY ONE SUPPLIER OF LOG STRIP, PROFESSIONAL DESIGN

MODEL NO.

LS37T-B1-1050MM (DIESEL ENGINE)

LOG SPLITTER SPECIFICATION FOLLOWING

OPERATING TYPE

HORIZONTAL TYPE AND VERTICAL TYPE

MAX. FORCE

37TON

COUPLER

2.0INCH

WEDGE

8" CAST WEDGE

CYLINDER

5.0INCH

PUMP FLOW

2-STAGE, 16GPM (GALLON PER MINUTE)

LOG LENGTH TO SPLIT

1100MM/44INCH

LOG DIAMETER TO SPLIT

508MM/20INCH

AUTOMATIC CYLINDER RETURN

YES

JACK STAND (FRONT AND REAR)

YES

TIRE

DOT AND E9 CERTIFICATE, 8INCH RIM, 16INCH WHEEL, TUBELESS, FOR HIGHWAY USAGE

HP OIL HOSE

2-LAYERS STEEL-WIRE NET, 13MM INNER SIZE; 40MPA PRESSURE CAPACITY

H-BEAM

INDUSTRIAL STANDARD, 175MM*175MM

HYDRAULIC TANK CAPACITY

30.5LITER

N.W./PC

300.50KGS

G.W./PC

310.50KGS

WHOLE MACHINE CERTIFICATE

CE

PACKING SIZE

2050MM*560MM*540MM

QUANTITY IN CONTAINER

40PCS/20FT; 88PCS/40FT/40HQ

ENGINE SPECIFICATION FOLLOWING

ENGINE

186F, 11.0HP, SINGLE-CYLINDER, AIR-COOLED, 4 STROKE,SINGLE CYLINDER, HORIZONTAL SHAFT

ENGINE CERTIFICATE

CE,EPA, EC-II,

ENGINE SPEED

3600RPM

POWER TAKE OFF

CRANKSHAFT OR CAMSHAFT

BORE*STROKE

86MM*70MM

DISPLACEMENT

418ML

FUEL TANK CAPACITY

5.5L

LUBE OIL CAPACITY

1.65L

NET WEIGHT OF ENGINE

48.00KGS

START TYPE

RECOIL OR RECOIL/ELECTRIC
