Specifications

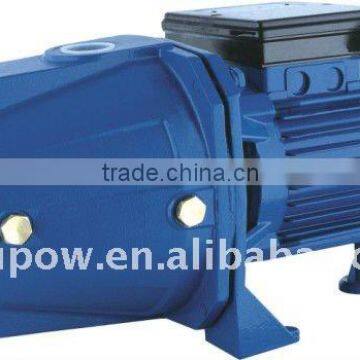

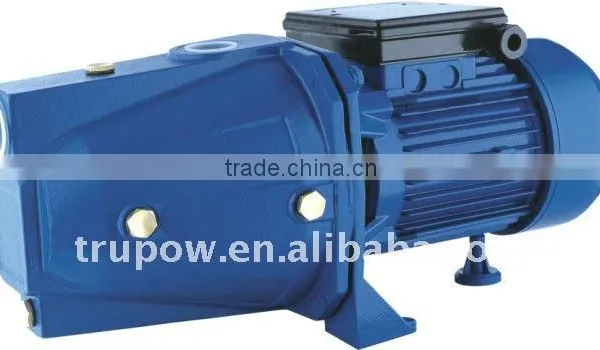

Self-priming Jet Pumps ,with a very high hydraulic performance and a considerable pressure capacity.Household Self-priming Jet Pumps Specification
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Model |
Power |
Max. Flow(L/h) |
Max.Head(m) |
Max.Suct. (m) |
Inlet/Outlet (inch) |
G.W./N/W.(kg) |
Packing size(mm) |
QTY/20”CTR(pc) |
|
KW |
HP |
||||||||
JET60B |
0.37 |
0.5 |
2400 |
35 |
9 |
1”x1” |
14/13 |
455x220x225 |
1540 |
JET80B |
0.55 |
0.75 |
3000 |
40 |
9 |
1”x1” |
15/14 |
455x220x225 |
1540 |
JET100B |
0.75 |
1.0 |
3600 |
45 |
9 |
1”x1” |
16/15 |
455x220x225 |
1250 |
