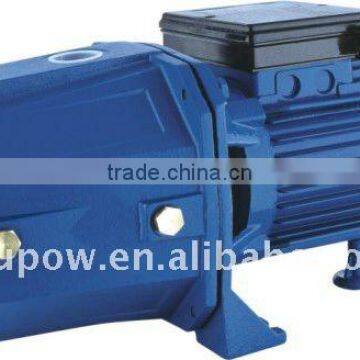

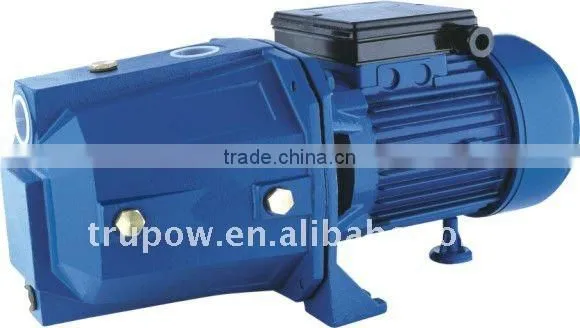

Cast Iron Pump

Cast Iron Pump thumbnail-1
Cast Iron Pump photo-1
US$ 40 - 52 MOQ: 200 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
TRUPOW
Model Number:
JET60A-JET100A
Contact Supplier Request Quote Chat Now
Trupow Industrial Stock Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name TRUPOW
Model Number JET60A-JET100A
Theory Jet Pump
Structure Single-stage Pump
Usage Water
Power Electric
Standard or Nonstandard Standard
Fuel Other, Electric
Pressure High Pressure
Application Other, Gardening

Specifications

Cast Iron Pump, with a very high hydraulic performance and a considerable pressure capacity.

Cast Iron Pump Specification



Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m
5. Continuous duty

Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44

Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic

Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.


Model
Power
Max. Flow
(L/h)
Max.Head
(m)
Max.Suct.
(m)
Inlet/Outlet
(inch)
G.W./N/W.
(kg)
Packing size(mm)
QTY/20”CTR(pc)
KW
HP
JET60A
0.45
0.6
3200
44
9
1”x1”
12/11
390x210x230
1540
JET80A
0.60
0.80
3400
48
9
1”x1”
14/13
440x200x230
1540
JET100A
0.75
1.0
3600
50
9
1”x1”
15/14
440x200x230
1250
