Help CenterSelf-Priming Jet Pump
Related Products
Specifications

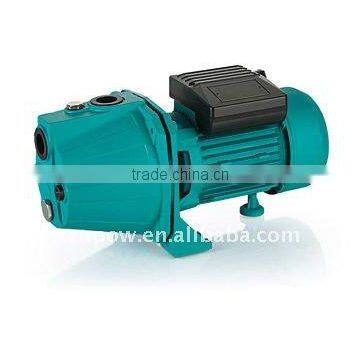

Self-Priming Jet Pump,with a very high hydraulic performance and a considerable pressure capacity.Self-Priming Jet Pump Specification:
Operating conditions:
1. ing pressure 8 bar
2. Liquid temperature up to 60ìC
3. Ambient temperature up to 40ìC
4. Total suction lift up to 9m
5. Continuous duty
Motor:
1. Two-Pole induction motor(n=2900r.p.m.)
2. Insulation Class B/F
3. Protection IP44
Material:
1. Pump body: Cast Iron
2. Motor Support: Cast Iron
3. Impeller: Brass/Noryl
4. Diffuser: Noryl
5. Shaft with rotor: Hi-Cr plated 45# Steel/Stainless Steel
6. Mechanical seal: Carbon/Ceramic
Application:
-Self priming jet water pumps with a very high hydraulic performance and a considerable pressure capacity.
-Able to pump up to mt.9 depth and work perfectly even in soda-water
-Suitable for water lifting and distribution in domestic fittings by small and medium sized tanks.
Model | Power | Max. Flow (L/h) | Max.Head (m) | Max.Suct. (m) | Inlet/Outlet (inch) | G.W./N/W. (kg) | Packing size(mm) | QTY/20”CTR(pc) | |
KW | HP | ||||||||
CGP900-JF1 | 0.9 | 1.2 | 3200 | 42 | 8 | 1”x1” | 12.7/12.5 | 420x210x220 | 1420 |
CGP1100-JF1 | 1.1 | 1.5 | 3400 | 45 | 8 | 1”x1” | 13.1/12.8 | 420x210x220 | 1420 |
CGP1300-JF1 | 1.3 | 1.7 | 3600 | 48 | 8 | 1”x1” | 13.6/13.0 | 420x210x220 | 1420 |
