Specifications
pneumatic engine hydraulic rock splitter1.Professional manufacturer
2.Have patent right
3.High efficienct
4,moq:1
pneumatic engine hydraulic rock splitter
Instruction

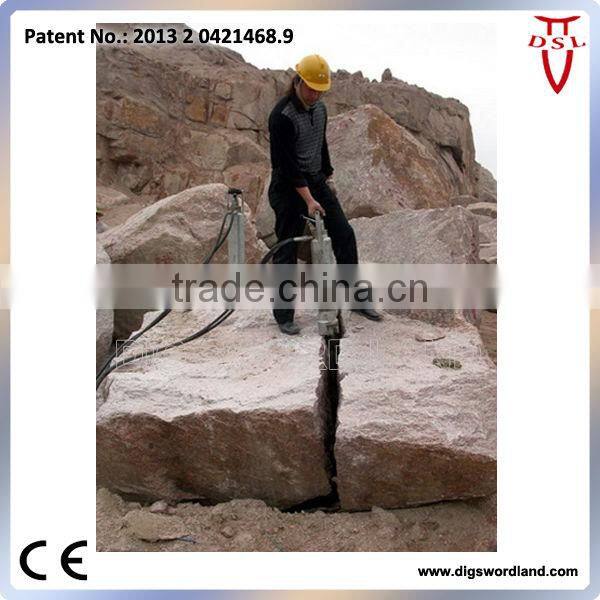

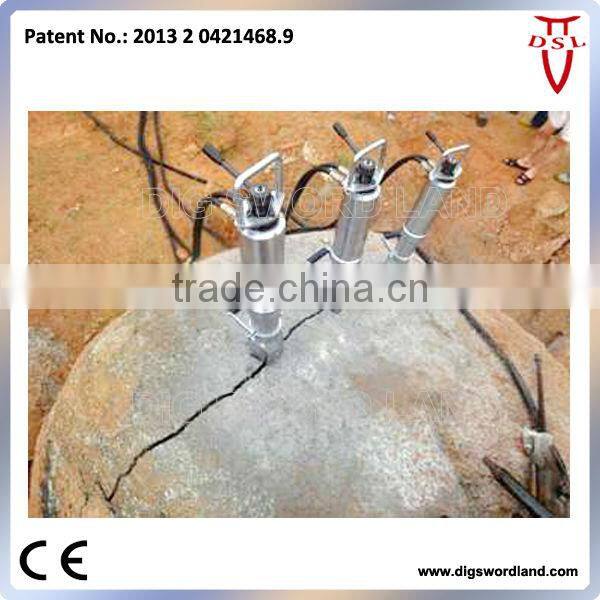

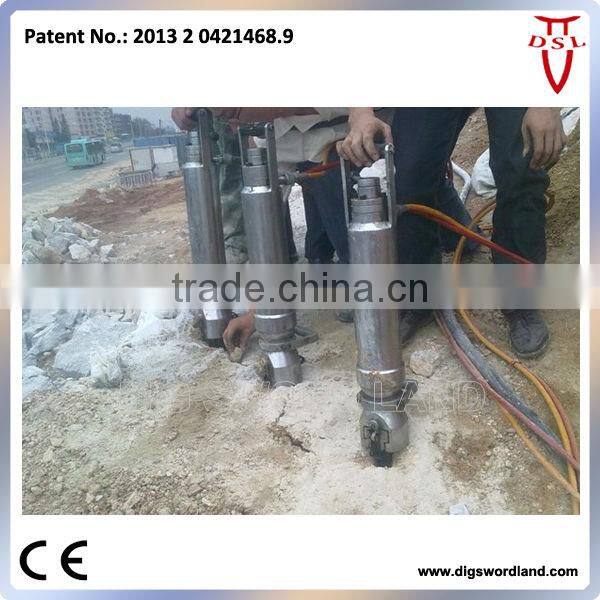

The rock splitter is a kind of hand-hold splitting and demolition tool.It can controllably split rock or concrete.Especially suit for cabined area where large machine can not work.Such as hydraulic breaker and place where is strictly limited of noise,dust,flying debris,shake,exhaust gas,also wodely use in the place where need non-explosive and blast forbidden.
motor engine powerpack hydraulic rock splitter
|
power model |
overall size(MM) |
weight(KG) |
oil pumping station reserves (L) |
engine power |
working pressure (Mpa) |
flux (L/Min) |
Towable of splitter quantity (pc) |
|
electric motor |
360*240*410 |
23 |
5 |
0.75KW(220V/380V) |
55~60 |
0.7 |
1 |
380*240*410 |
60 |
25 |
2.2KW(380V) |
55~60 |
2~13 |
1~3 |
|
384*280*620 |
75 |
30 |
4KW(380V) |
55~60 |
2~13 |
1~6 |
|
450*410*700 |
100 |
40 |
7.5KW(380V) |
55~60 |
13 |
1~10 |
|
we also can supply other engine hydraulic rock splitter powerpack
Engine |
Size (mm) |
Weight(kg) |
Oil Capacity(L) |
Power |
Working pressure (MPa) |
Flow (L/m) |
Splitter qty(Pc) |
Diesel engine |
1150*1180*940 |
120 |
40 |
4.2KW |
55-60 |
2--13 |
1--10 |
Gasoline engine |
1200*1170*800 |
100 |
40 |
7.5Hp |
55-60 |
2--13 |
1--10 |
Pneumatic engine |
364*280* 620 |
100 |
40 |
4.04KW/5.5HP |
55-60 |
13 |
1~10 |
rock splitter
| Model | Hole diameter | Piston inside diameter | Min. drilling depth |
Wedge length | Crack width | Splitting time | Theory division force | Actual division force | Single weight |
| (MM) | (MM) | (MM) | (MM) | (MM) | (S) | (T) | (T) | (KG) | |
| DS80A | Φ38~42 | 80 | ≥450 | 150 | 10~40 | 5~12 | 500 | 280 | 20 |
| DS80B | Φ40~42 | 80 | ≥500 | 200 | 10~40 | 5~12 | 600 | 300 | 21 |
| DS80C | Φ40~42 | 80 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 | 25 |
| DS80D | Φ45~48 | 80 | ≥800 | 450 | 10~40 | 5~12 | 720 | 450 | 27 |
| DS90A | Φ38~42 | 90 | ≥450 | 150 | 10~40 | 5~12 | 680 | 420 | 26 |
| DS90B | Φ40~42 | 90 | ≥500 | 200 | 10~40 | 5~12 | 720 | 450 | 26.5 |
| DS90D | Φ40~42 | 90 | ≥600 | 300 | 10~40 | 5~12 | 780 | 480 | 27 |
| DS90E | Φ45~48 | 90 | ≥700 | 380 | 10~40 | 5~12 | 820 | 500 | 28 |

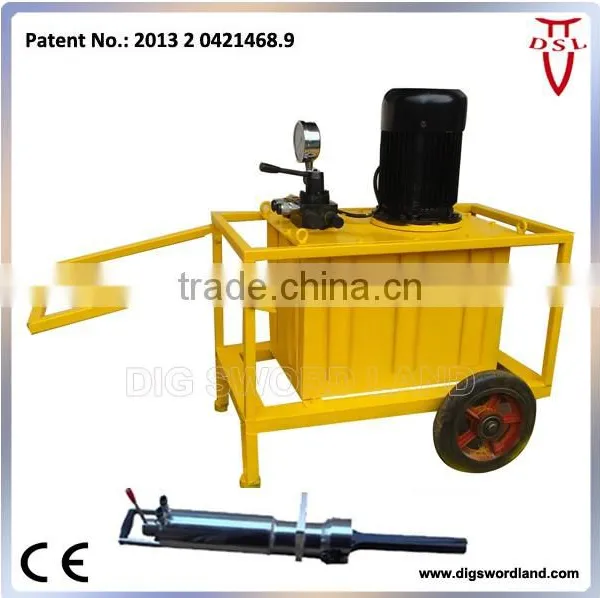

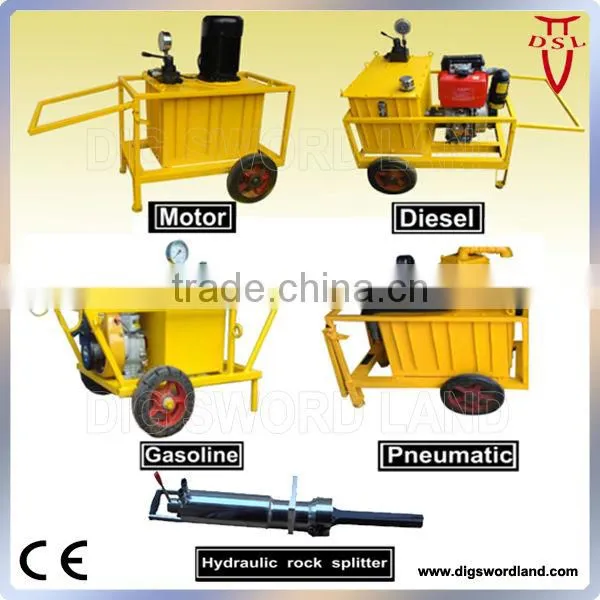

motor engine hydraulic rock splitter powerpack

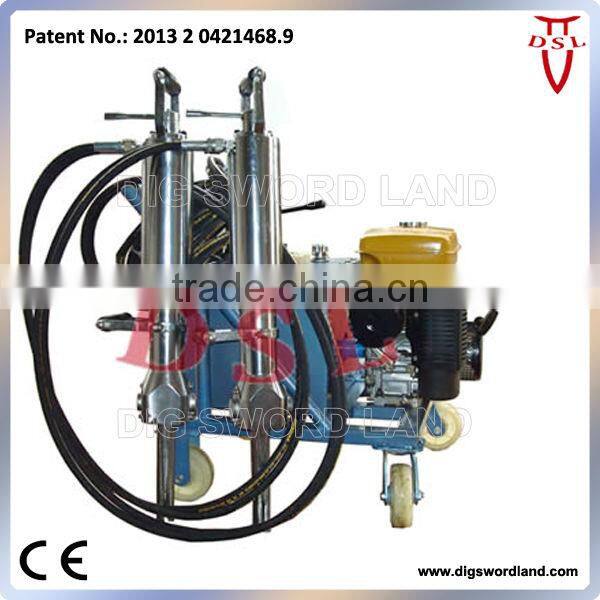

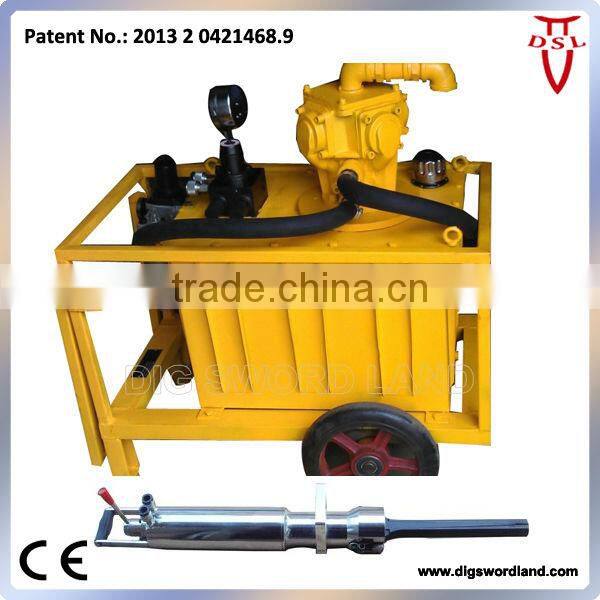

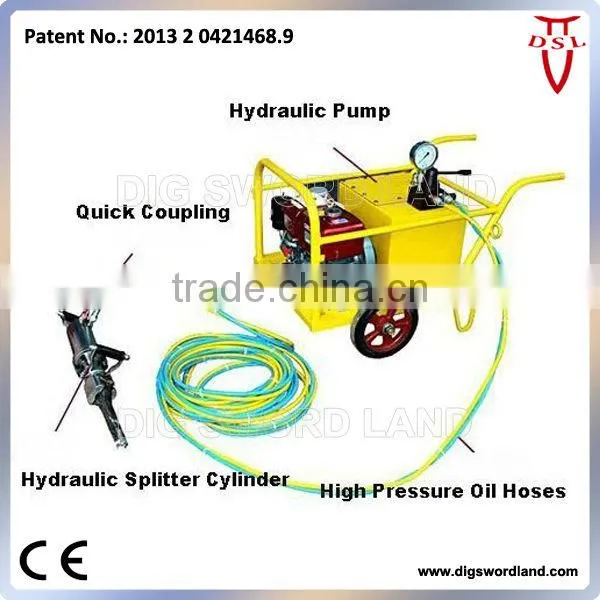

pneumatic engine hydraulic rock splitter machine powerpack

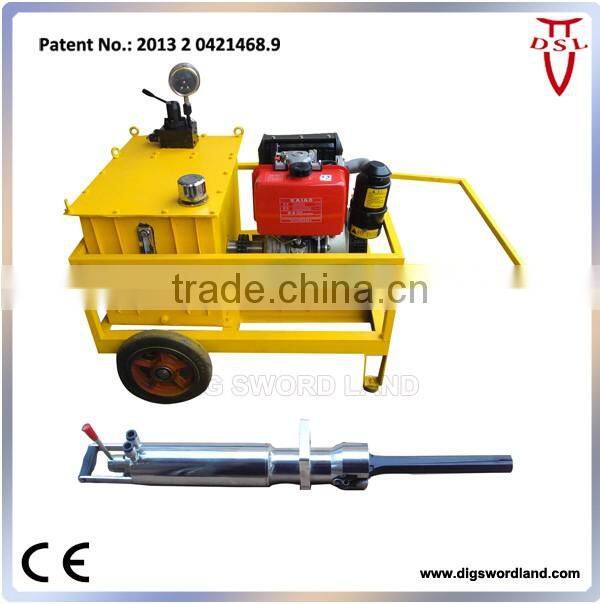

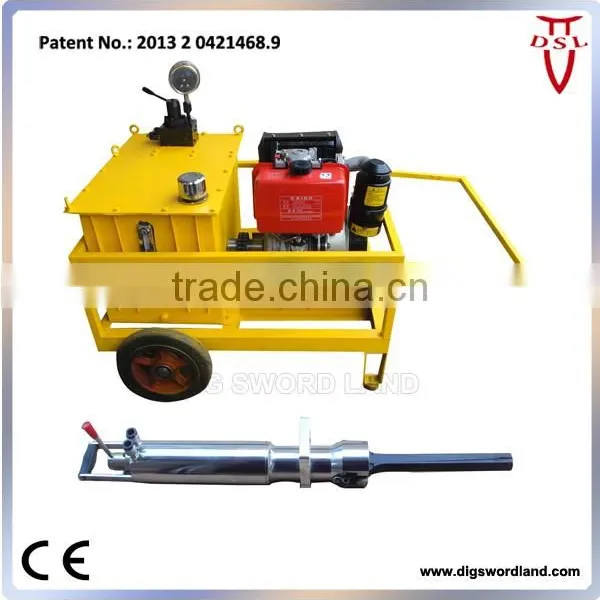

diesel engine hydraulic rock splitter machine powerpack
gasoline engine hydraulic rock splitter machine powerpack

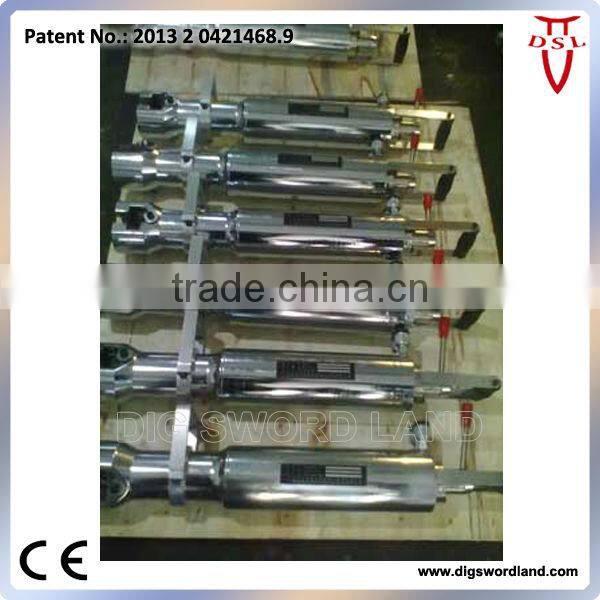

hydraulic rock splitter machine

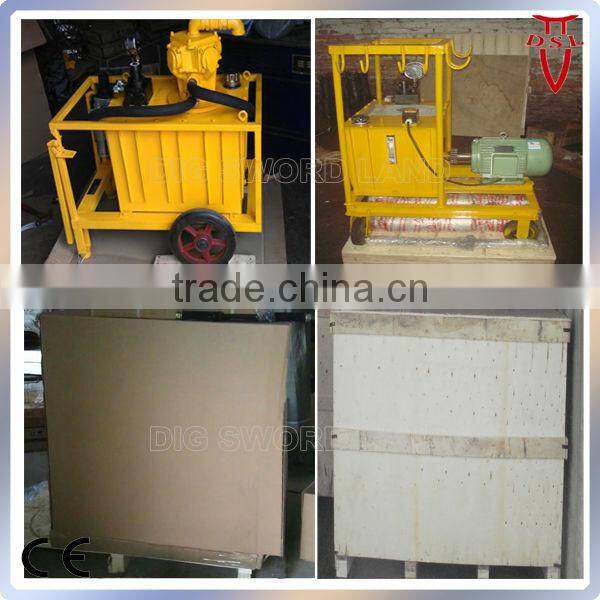

package
our company introduction
we also can produce other mining machine
about our certifications
