XY-200 Water Well Drilling Rig Machine

XY-200 Water Well Drilling Rig Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Fuzhou Port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Core Drilling Rig
Power Type Diesel
Place of Origin Fujian, China
Brand Name DSL-water well drilling rig
Model Number XY-100,XY-150,XY-200 water well drilling rig machine
Usage Water Well
Voltage 380v
Power(W) 75kw
Dimension(L*W*H) 2.75*0.95*1.6m
Weight 910kg
Certification ISO9001&CE, ISO9001&CE

Specifications

Water well drilling rig
1,moq:1
2,approved ISO9001&CE
3,delivery time:5-7days
4,easy-operated

 XY-200 water well drilling rig machine



 Instruction

1.The water well drilling machine is used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.



2.This core well drilling machine with hydro-automatic feeding device, and high drilling efficiency.



3.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.



4.Close levers, convenient to operate, safe and reliable operations.



5.Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.



6.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.





specification



Spindle speed142,285,570 r/min
Spindle stroke450mm
Hoist
Max.single line hoisting capacity12KN
Reel lifting speed1.68m/s
Tightrope caliber145mm
Tightrope cubic measure35mm
Hug floodgate caliber230mm
Hug floodgate belt width50mm
Mud pump
TypeHorizontal single urn twin action
Displacement99(77)L/min
Power
Diesel engineS1105 18HP
Electric motorY160M-4 15kw 1440r/min
Maximum pressure1.2Mpa
Work pressure0.7Mpa
Water inlet caliber40mm
Water to exit caliber30mm
Triangle conveyer beltB1728mm

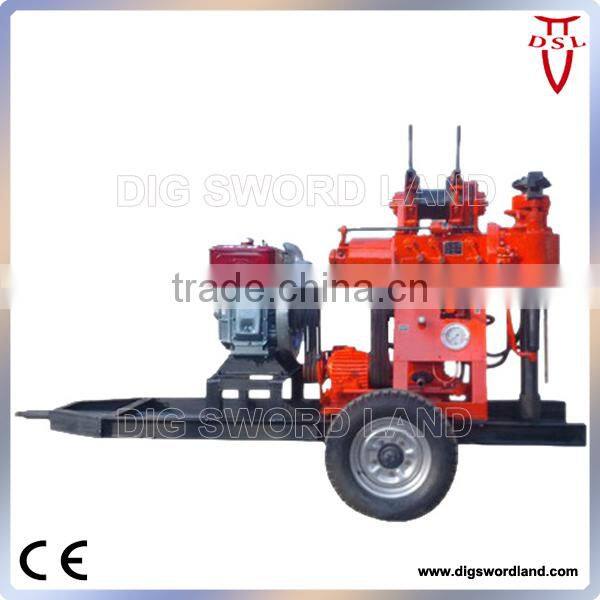

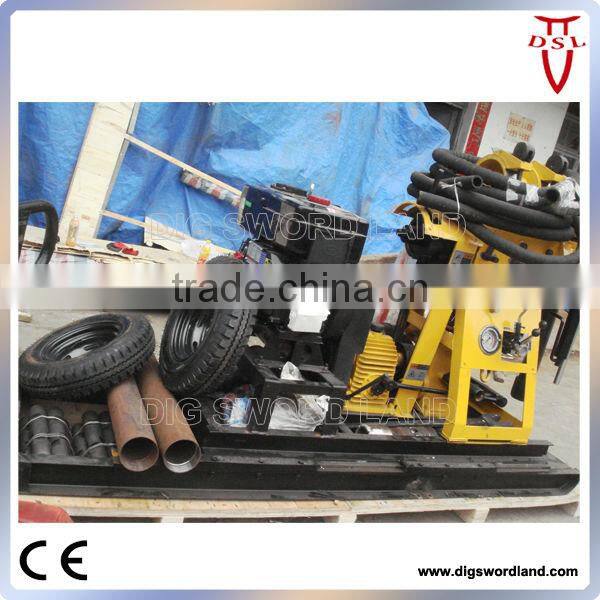

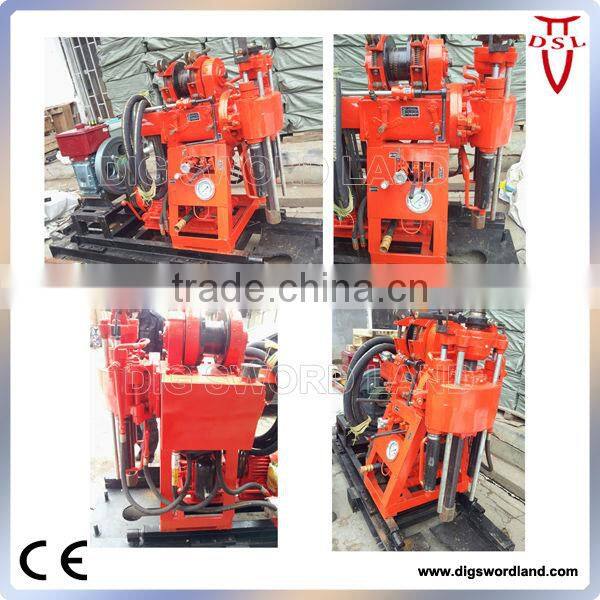

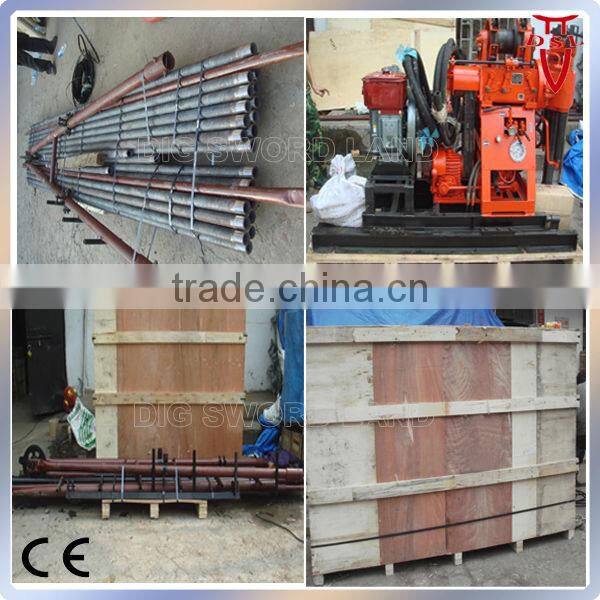

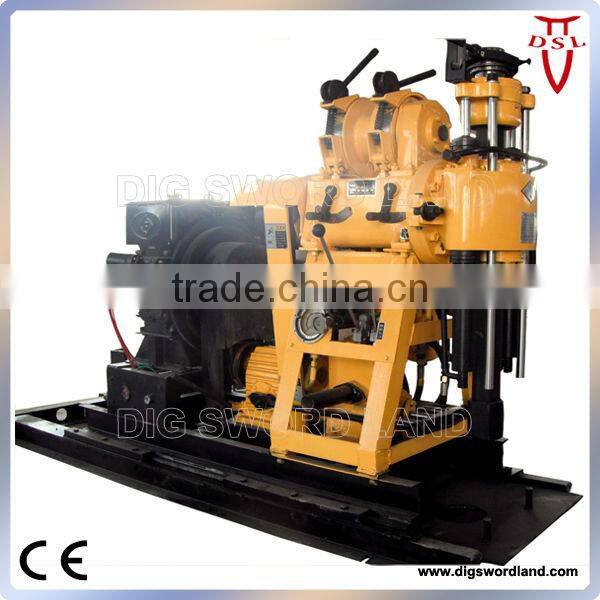

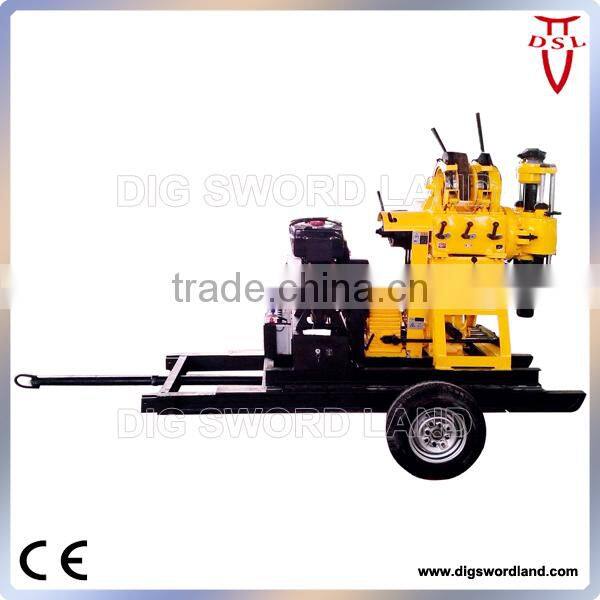

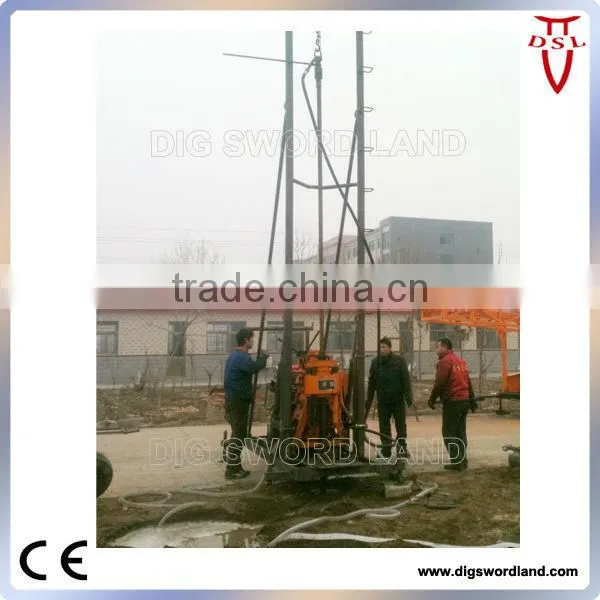

Pictures of water well drilling rig machine



XY-200 water well drilling rig machineXY-200 water well drilling rig machine



 XY-200 water well drilling rig machineXY-200 water well drilling rig machine

XY-200 water well drilling rig machineXY-200 water well drilling rig machineXY-200 water well drilling rig machine
