Hydraulic stone splitter DS80A-DS90E

FOB Price

USD $1 - $2 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port fuzhou port
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Rock or stone, Granite, stone	Motor Type:	Other, Motor
Power(W):	2.2kw-7.5kw	Place of Origin:	Fujian, China	Brand Name:	DSL
Model Number:	DS80A-DS90E	Dimension(LWH):	1M1M1.3M	Certification:	CE
Warranty:	THREE MONTH	After-sales Service Provided:	Overseas third-party support available

Product Description

FUZHOU DIG SWORD LAND MACHINE CO.,LTD

Hydraulic stone splitter:

One of the efficient, safest and easiest ways of mining, quarring, demolition & removing mass and reinforced concrete.

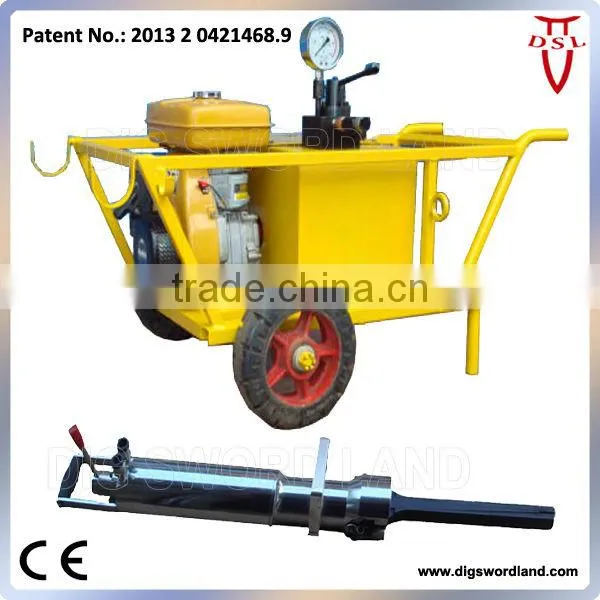

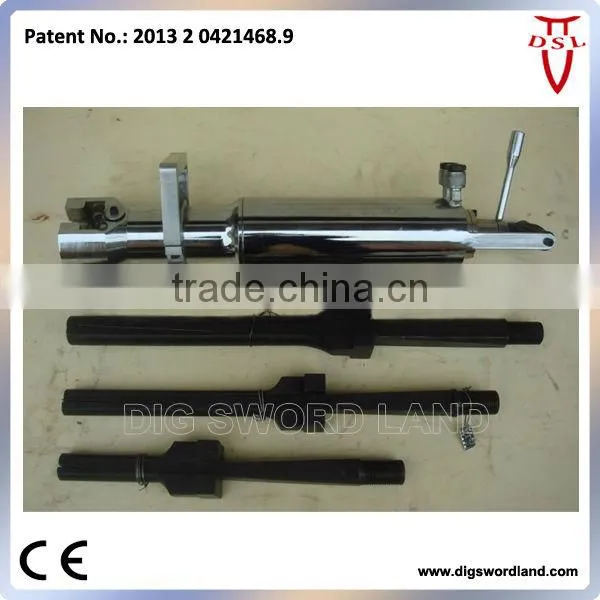

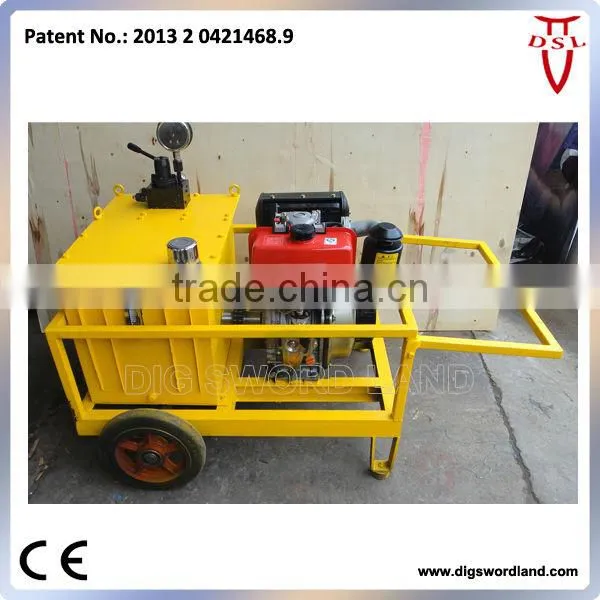

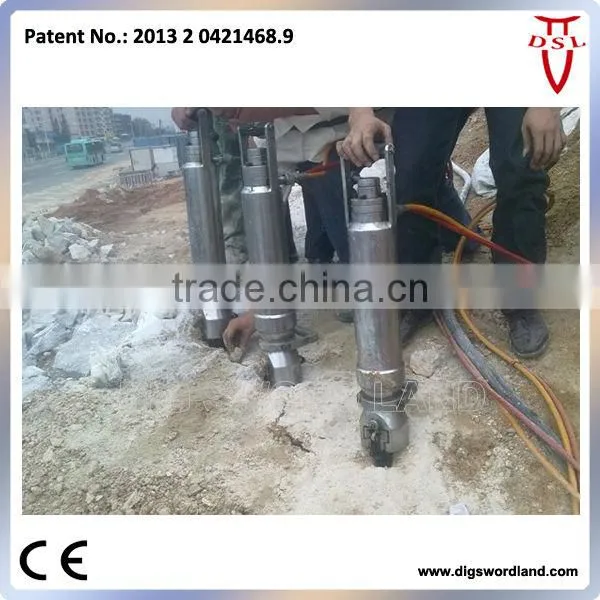

Holes are drilled in the granite, marble, natural stone, rock & concrete structure and the splitter head, which contains a counter wedges & center wedge, is inserted. Hydraulic pressure is provided by a motor, powered by electricity, diesel or petrol. The build up of lateral forces against the inside of the holes induces cracks in the natural sonte, rock & concrete. The cracking follows the plane of weakness created by the holes that were drilled previously. The process is repeated until the whole structure is fractured into smaller sections and ready for removal.

Air and gas tools is favoured in instances where vibration, dust and noise must be limited due to other surrounding working environments (offices, workshop, Hospitals etc), and is more effective than hand held pneumatic tools.

Advantage of Hydraulic rock splitter:
1. Enormous splitting force up to 500 tons
2. Dust free and near silent operation
3. Vibration free
4. Light weight
5. Precision work
6. Always controllable
7. For use in close quarters and hard to access places
8. Easy handling
9. Different size counter wedge and center wedge can use on the same splitter

Typical Applications:

All kinds of natural stones, rock, granite, marble mining & quarrying
Machine bases
Bridge columns
Reinforced concrete structures
Mass foundations
Controlled demolition of pillars, concrete and walls where heavy equipment is impractical
Staircase removal
Premises that may be in continual use such as hospitals, factories, offices and hotels
removing redundant reinforced concrete structures, concrete machine beds and plinths, mass filled concrete etc.
Underwater demolition
Demolition in a restricted space
Tunnel work
Trench excavation

Specification

Model	Hole diameter (MM)	Piston inside diameter (MM)	Minimum drilling depth (MM)	Wedge length (MM)	Crack width (MM)	Splitting time (S)	Theory division force (T)	Actual division force (T)	Single weight (KG)
DS80A	Φ38~42	80	≥450	150	10~40	5~12	500	280	20
DS80B	Φ40~42	80	≥500	200	10~40	5~12	600	300	21
DS80C	Φ40~42	80	≥600	300	10~40	5~12	680	420	25
DS80D	Φ45~48	80	≥800	450	10~40	5~12	720	450	27
DS90A	Φ38~42	90	≥450	150	10~40	5~12	680	420	26
DS90B	Φ40~42	90	≥500	200	10~40	5~12	720	450	26.5
DS90D	Φ40~42	90	≥600	300	10~40	5~12	780	480	27
DS90E	Φ45~48	90	≥700	380	10~40	5~12	820	500	28
