Home > Manufacturing & Processing Machinery > Mining Machinery > Rock Splitter > Hydraulic Stone Splitter DS80A-DS90E
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Rock or stone, Granite, stone
Motor Type:
Other, Motor
Payment & Shipping
Payment Methods:
Port of Shipment:
fuzhou port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Rock Splitter MachineUS$ 1 - 1,500MOQ: 1 Unit -
Pneumatic Engine Hydraulic Stone Split Tool for MarbleUS$ 1 - 1,000MOQ: 1 Set
-
Diesel Engine Hydraulic Rock Split Tool for DemolitionNegotiableMOQ: 1 Set
-
Hydraulic Rock Splitter With Power Pack for Natural StoneNegotiableMOQ: 1 Set
-
Portable Hydraulic Metal Cutting MachineUS$ 100 - 2,000MOQ: 1 Set
Condition
New
Application
Rock or stone, Granite, stone
Motor Type
Other, Motor
Power(W)
2.2kw-7.5kw
Place of Origin
Fujian, China
Brand Name
DSL
Model Number
DS80A-DS90E
Dimension(L*W*H)
1M*1M*1.3M
Certification
CE
Warranty
THREE MONTH
After-sales Service Provided
Overseas third-party support available
FUZHOU DIG SWORD LAND MACHINE CO.,LTD

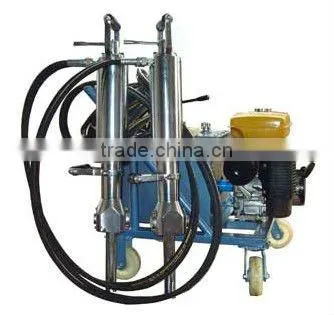

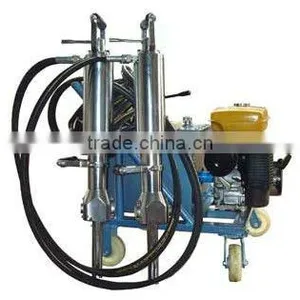

Hydraulic stone splitter:
One of the efficient, safest and easiest ways of mining, quarring, demolition & removing mass and reinforced concrete.
Holes are drilled in the granite, marble, natural stone, rock & concrete structure and the splitter head, which contains a counter wedges & center wedge, is inserted. Hydraulic pressure is provided by a motor, powered by electricity, diesel or petrol. The build up of lateral forces against the inside of the holes induces cracks in the natural sonte, rock & concrete. The cracking follows the plane of weakness created by the holes that were drilled previously. The process is repeated until the whole structure is fractured into smaller sections and ready for removal.
Air and gas tools is favoured in instances where vibration, dust and noise must be limited due to other surrounding working environments (offices, workshop, Hospitals etc), and is more effective than hand held pneumatic tools.
Advantage of Hydraulic rock splitter:
1. Enormous splitting force up to 500 tons
2. Dust free and near silent operation
3. Vibration free
4. Light weight
5. Precision work
6. Always controllable
7. For use in close quarters and hard to access places
8. Easy handling
9. Different size counter wedge and center wedge can use on the same splitter
1. Enormous splitting force up to 500 tons
2. Dust free and near silent operation
3. Vibration free
4. Light weight
5. Precision work
6. Always controllable
7. For use in close quarters and hard to access places
8. Easy handling
9. Different size counter wedge and center wedge can use on the same splitter
Typical Applications:
- All kinds of natural stones, rock, granite, marble mining & quarrying
- Machine bases
- Bridge columns
- Reinforced concrete structures
- Mass foundations
- Controlled demolition of pillars, concrete and walls where heavy equipment is impractical
- Staircase removal
- Premises that may be in continual use such as hospitals, factories, offices and hotels
- removing redundant reinforced concrete structures, concrete machine beds and plinths, mass filled concrete etc.
- Underwater demolition
- Demolition in a restricted space
- Tunnel work
- Trench excavation
Specification
| Model | Hole diameter (MM) | Piston inside diameter (MM) | Minimum drilling depth (MM) | Wedge length (MM) | Crack width (MM) | Splitting time (S) | Theory division force (T) | Actual division force (T) | Single weight (KG) |
|---|---|---|---|---|---|---|---|---|---|
| DS80A | Φ38~42 | 80 | ≥450 | 150 | 10~40 | 5~12 | 500 | 280 | 20 |
| DS80B | Φ40~42 | 80 | ≥500 | 200 | 10~40 | 5~12 | 600 | 300 | 21 |
| DS80C | Φ40~42 | 80 | ≥600 | 300 | 10~40 | 5~12 | 680 | 420 | 25 |
| DS80D | Φ45~48 | 80 | ≥800 | 450 | 10~40 | 5~12 | 720 | 450 | 27 |
| DS90A | Φ38~42 | 90 | ≥450 | 150 | 10~40 | 5~12 | 680 | 420 | 26 |
| DS90B | Φ40~42 | 90 | ≥500 | 200 | 10~40 | 5~12 | 720 | 450 | 26.5 |
| DS90D | Φ40~42 | 90 | ≥600 | 300 | 10~40 | 5~12 | 780 | 480 | 27 |
| DS90E | Φ45~48 | 90 | ≥700 | 380 | 10~40 | 5~12 | 820 | 500 | 28 |
