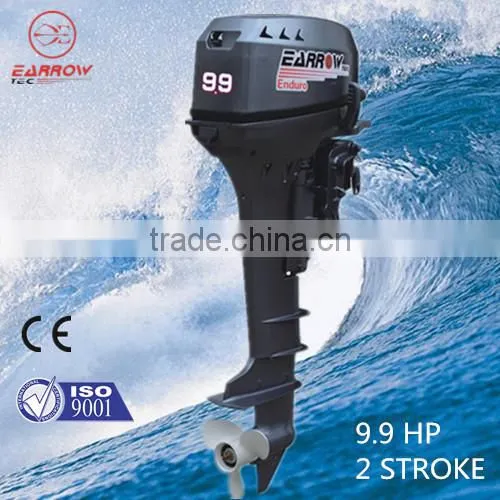

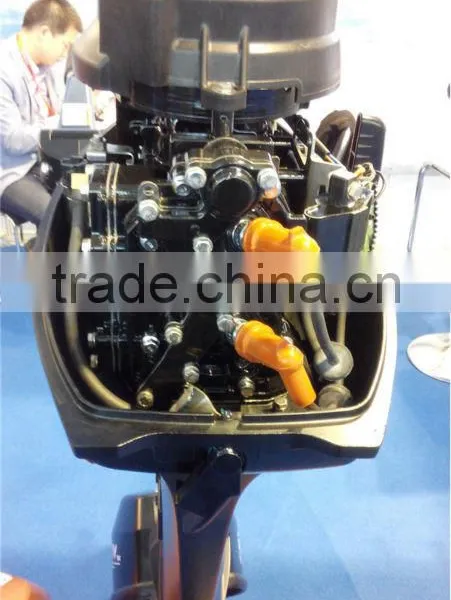

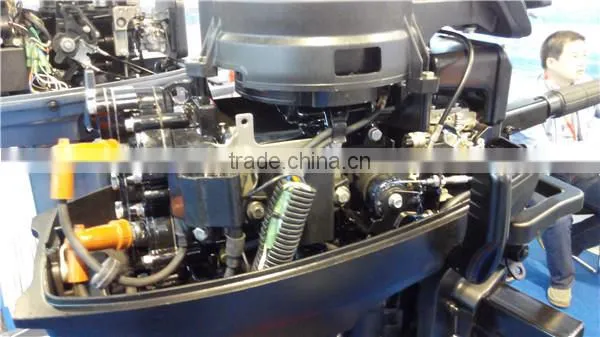

EARROW 2-stroke 9.9hp Outboard Motor

US$ 800 - 2,000 MOQ: 1 Piece

Key Specifications

Condition:

New, New

Engine:

2 Stroke, 2 Stroke

Engine Capacity:

4.1 - 5L, 1 - 2L

Yongkang Longxiao Industry & Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Cylinders 2

Dimensions (L x W x H) (mm) OL843*OW399*OH (S)1146,OH(L)1273

It's similar yamaha new E15DMHL 6B4K enduro version, Powerful than the old version,

The rotation rate around 200 RPM more than the old version, and better and faster acceleration.

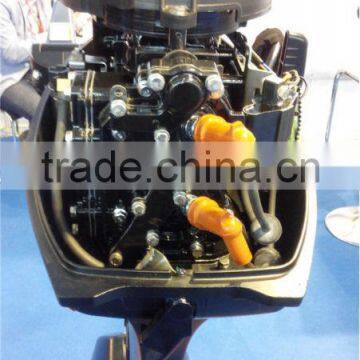

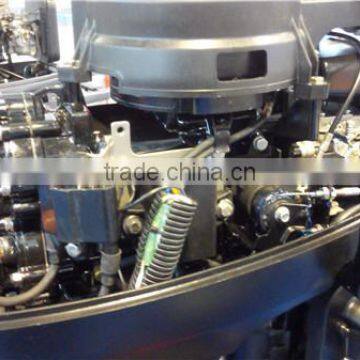

NEW design less parts less issues, longer engine life (such as a water cooling asiel nearby cylinder design).

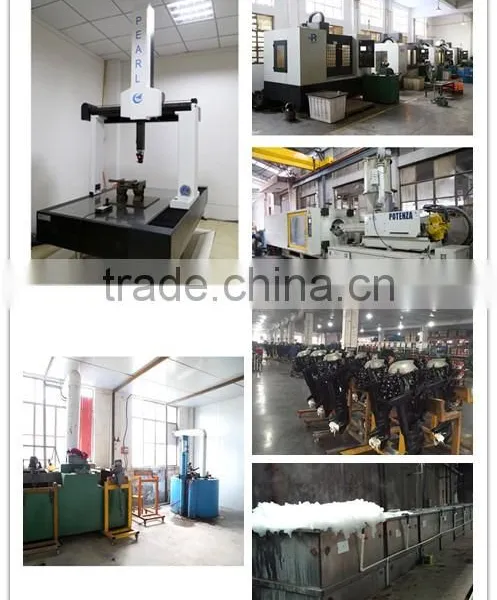

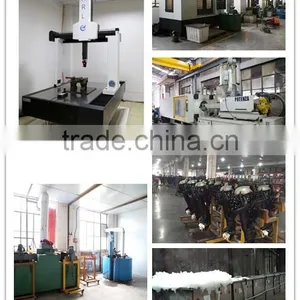

1,Most die casting parts and plastic parts are made by our own factory, assure the quality control

2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti-corrosion;

3,Our main engineers used to work in previous BRP Chinese subsidiary plant, We learn from BRP technology, our outboards are more quiet;

4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;

5, Besides the gasoline outboards, we can also supply propane outboards;

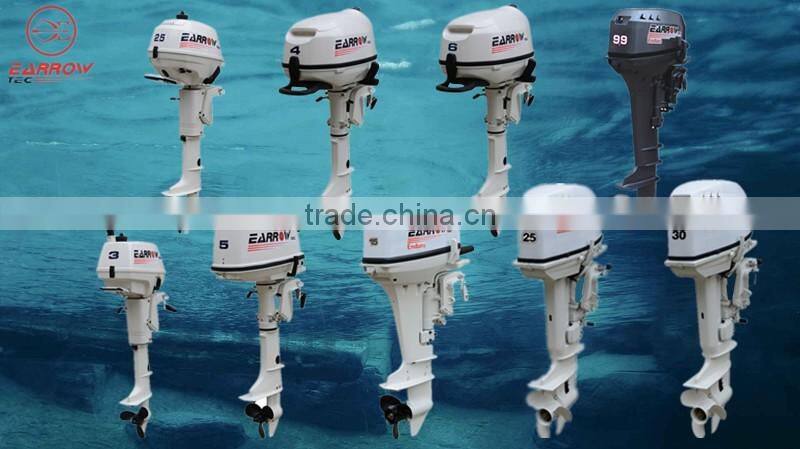

6, Different color available: Pearl white, Dark grey, Jewelry blue

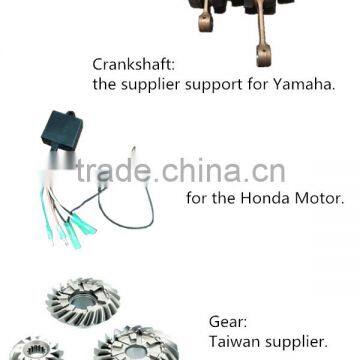

7,95% spare parts are compatible with Yamaha spare parts,easy for maintenance

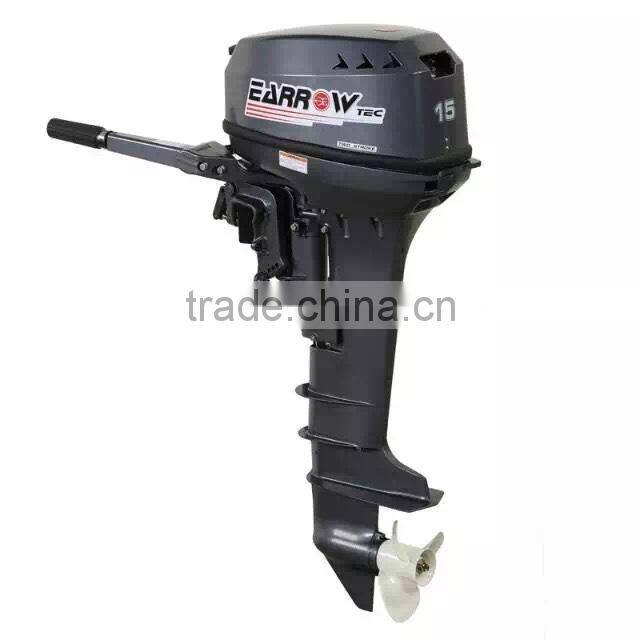

8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more powerful

Specification

Outboard Motor Model	TE9.9D
Net Weight	S:38Kg ; L:40kg
Full Throttle Operating Range	4500-5500 r/m
Maximum Output	7.3kw/9.9hp
Idling Speed	1050±50r/m
Type	Two Stroke
Displacement	246.0cc
Bore*Stroke	56*50mm
Ignition System	CDI

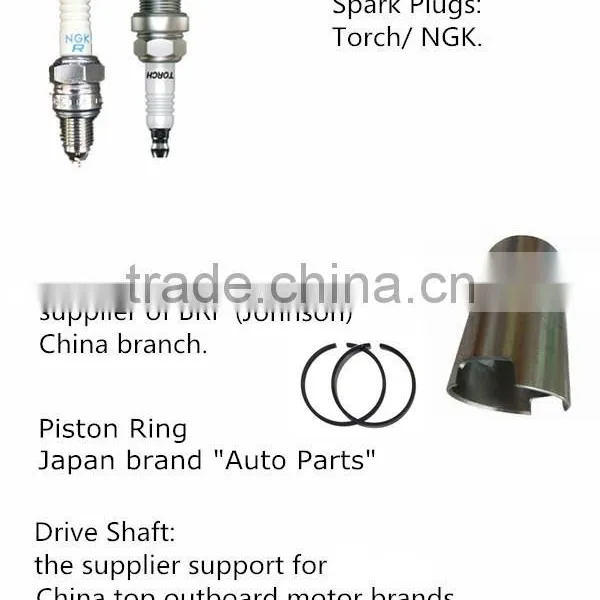

Spark Plug	NGK BR8HS-10
Spark Plug Gap	0.9-1.0mm
Control System	Tiller Handle
Starting System	Manual
Starting Carburation System	Choke Valve
Gear Position	Forward-Neutral-Reverse
Gear Ratio	2.08 (27:13)
Trim and Tilt System	Manual Tilt
Recommended Fuel	Unleaded Gasoline
Gear Oil	0.250L
Fuel Tank Capacity	24L
