Piston Ring for Out Board Motor

Piston Ring for Out Board Motor photo-1
Piston Ring for Out Board Motor photo-2
Piston Ring for Out Board Motor photo-3
Piston Ring for Out Board Motor photo-4
Piston Ring for Out Board Motor photo-5
Piston Ring for Out Board Motor photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New, New
Engine:
2 Stroke, 2 Stroke
Engine Capacity:
1 - 2L, 1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
any sea port in China
Delivery Detail:
Delivery time depends on order quantity.
Dimensions (L x W x H) (mm) 878*363*1062

Advantages:

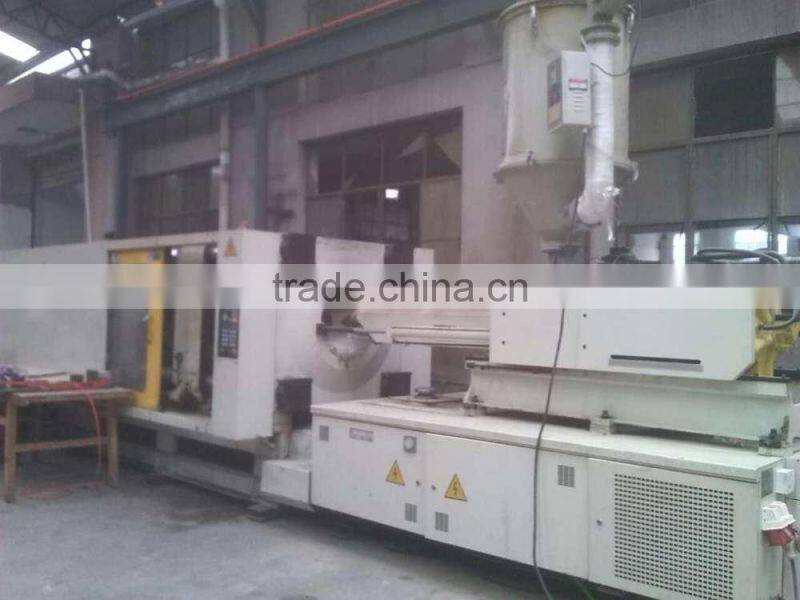

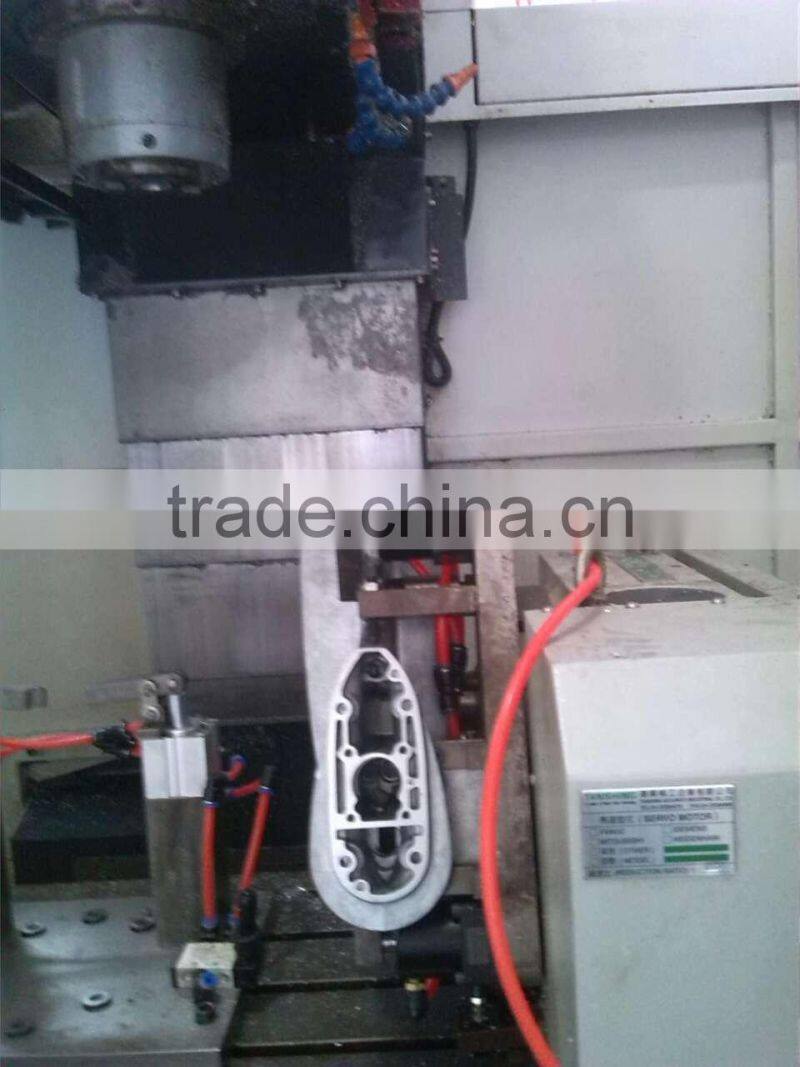

1,Most die casting parts and plastic parts are made by our own factory, assure the quality control

2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti-corrosion;

3,Our main engineers used to work in previous BRP Chinese subsidiary plant, We learn from BRP technology, our outboards are more quiet;

4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;

5, Besides the gasoline outboards, we can also supply propane outboards;

6, Different color available: Pearl white, Dark grey, Jewelry blue

7,95% spare parts are compatible with Yamaha spare parts,easy for maintenance

8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more powerful

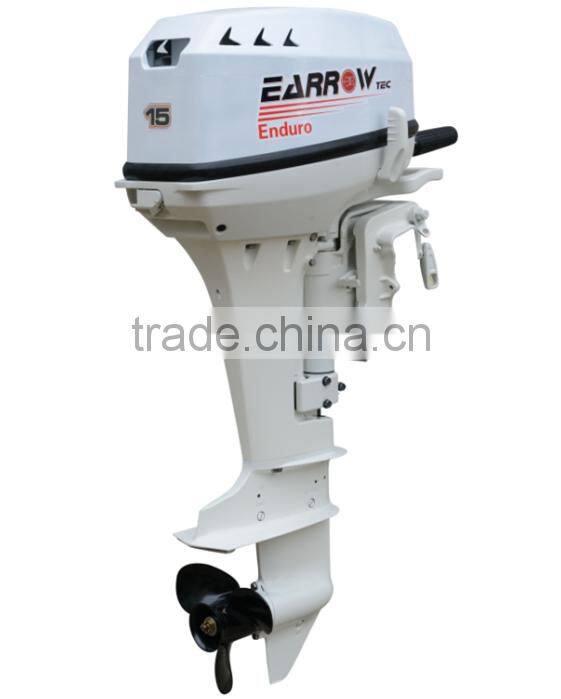

Two Stroke  15HP Outboard Motor

piston ring for out board motor

piston ring for out board motor

piston ring for out board motor

piston ring for out board motor
piston ring for out board motor

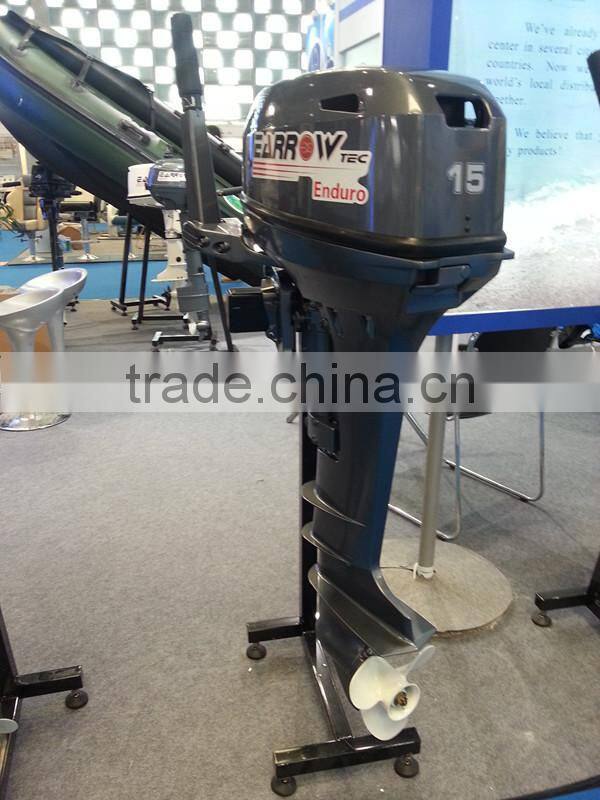

Booth At 2014 Shanghai International Boat Show
piston ring for out board motor

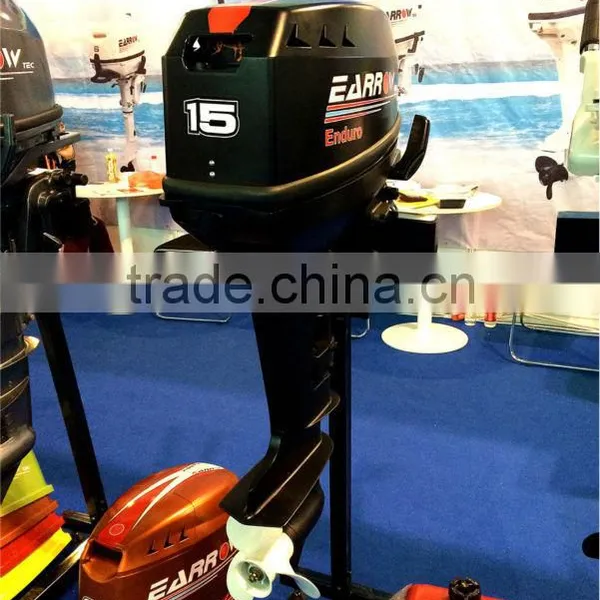

Booth At 2014 Miami International Boat Show

piston ring for out board motor





Product  Specification:

TE15D

Model

TE15D

Dimension

Overall length: 878mm (34.6 in)

Overall width: 363 mm (14.3in)

Overall height S:1062mm (41.8in)

Overall height L: 1189 mm (46.8in)

Weight

S: 38 Kg

L: 40Kg

Full Throttle Operating Range

4500-5500 r/m

Maximum Output

11kw/15hp

Idling Speed

1050±50r/m

Type

Two Stroke

Displacement

246cc

Bore×Stroke

56.0×50.0mm

Ignition System

CDI

Spark Plug

NGK B8HS-10

Spark Plug Gap

0.9-1.0mm

Control System

Tiller Handle

Starting System

Manual

Starting Carburation System

Choke Valve

Gear Position

Forward-Neutral-Reverse

Gear Ratio

2.08 (27:13)

Trim and Tilt System

Manual Tilt

Recommended Fuel

Unlead Gasoline

Recommended Engine Oil

2-stoke outboard motor oil

Fuel Oil Ratio

50:1

Geal Oil

0.250L

Fuel Tank Capacity

24 L
