DISTRIBUTORS WANTED.
95% PARTS COMPATIBLE YAMAHA.
EARROW outboards

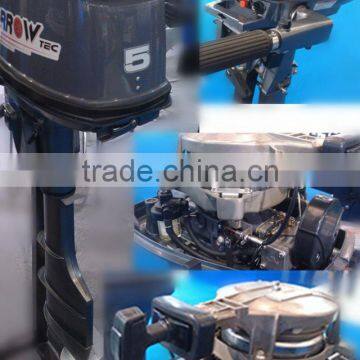

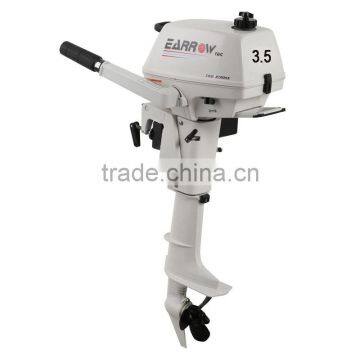

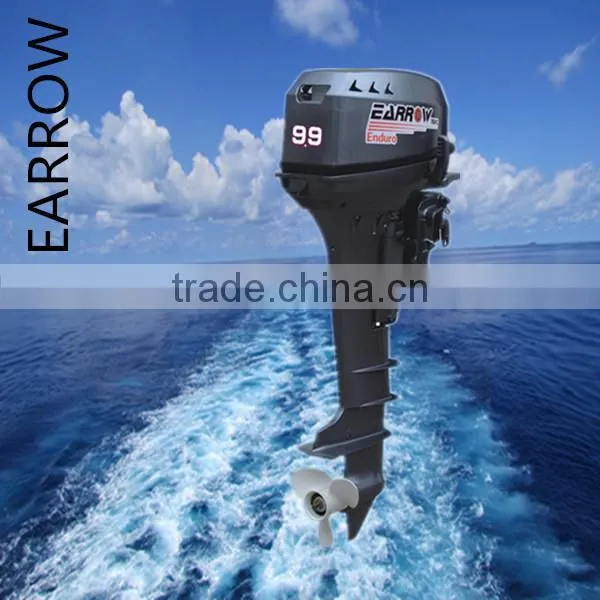

China Outboard Engine For Fishing Kayak
Porduct Range:
2 Stroke: 2.5hp -30hp;
4 Stroke : 2.5hp- 6hp
Specification
| Modle | TE9.9D | |||||
| Dimension | Overall length: 878mm (34.6 in) | |||||
| Overall width: 363 mm (14.3in) | ||||||
| Overall height S:1062mm (41.8in) | ||||||
| Overall height L: 1189 mm (46.8in) | ||||||
| Net weight (S/L) | 38kg/ 40kg | |||||
| Gross weight (S/L) | 58kg/ 60kg | |||||
| Package Size (S) | 121*71*44 cm³ | |||||
| Full Throttle Operating Range | 4500-5500 r/m | |||||
| Maximum Output | 7.3kw/9.9hp | |||||
| Idling Speed | 1050±50r/m | |||||
| Type | Two Stroke | |||||
| Displacement | 246cc | |||||
| Bore×Stroke | 56.0×50.0mm | |||||
| Ignition System | CDI | |||||
| Spark Plug | NGK B8HS-10 | |||||
| Spark Plug Gap | 0.9-1.0mm | |||||
| Control System | Tiller Handle | |||||
| Starting System | Manual | |||||
| Starting Carburation System | Choke Valve | |||||
| Gear Position | Forward-Neutral-Reverse | |||||
| Gear Ratio | 2.08 (27:13) | |||||
| Trim and Tilt System | Manual Tilt | |||||
| Recommended Fuel | Unleaded Gasoline | |||||
| Recommended Engine Oil | 2-stoke outboard motor oil | |||||
| Fuel Oil Ratio | 50:1 | |||||
| Gear Oil | 0.250L | |||||
| Fuel Tank Capacity | 24 L | |||||
OEM Services
Advantages:
1.Engineers once worked for BRP company.
2.Our unique wonderful technical of color----the color is to be the attribute of material. it is done by one-step mould.
3.Almost spare parts are made by ourself. All parts is done by specifical treatment let it to be used much more longer.
TWO Stroke is widly used for its powerful and cost-effecitve!
Now EARROW prodcuts are suit for unlead gasoline, Manual start & Tiller handle control.
How long is EARROW company in outboards industry?
Our Earrow outboards factory started from 2012, for past two years, we mainly focus on product R&D and product endurable testing;

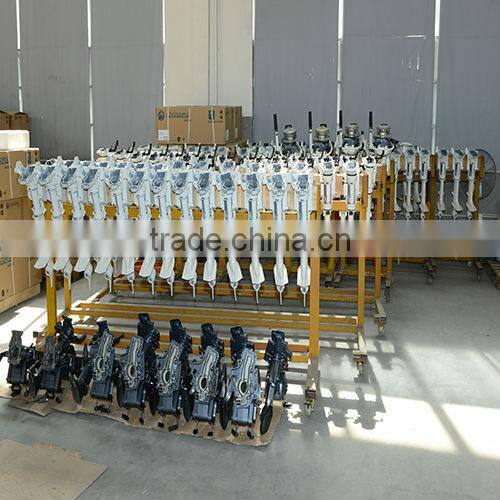

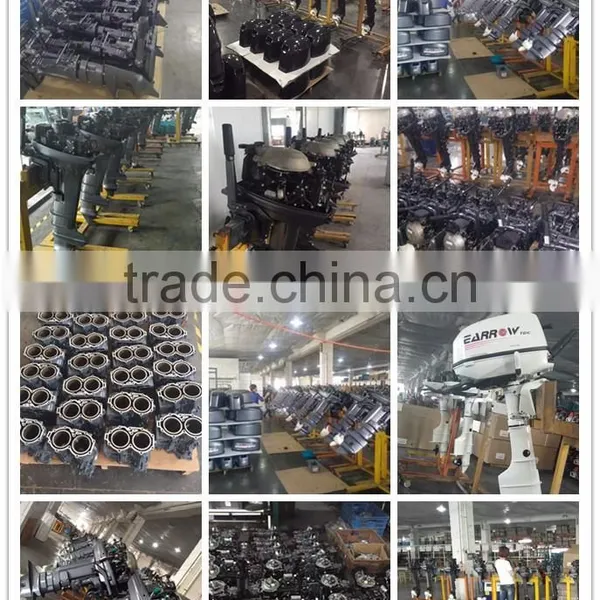

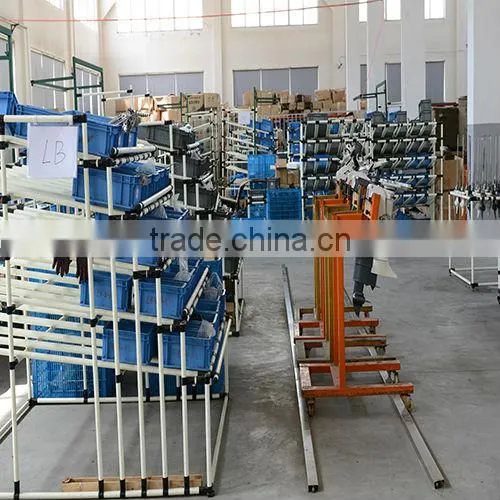

We also have separate production line for producing most die casting & plastic parts for outboards.
Which market you have distributor till now?
Main market is some Southeast Asia& South American, Africa and Australia market;
What’s your production ability per month/per year?
2000PCS each month, and 25000pcs/year
What kind of Certificate you have:
ISO9001 / CE certified/SGS;
How long you will test each engine before packing and shipment?
Half hour for testing before packaging.
The spare parts was made by yourself or purchased?
Some key parts buy from Taiwan and Japan,
all other plastic & aluminum parts (such as bottom cover, lower unit case, propeller, crankcase etc. are made by our own plant,assure our spare parts quality control and delivery time.
How about Warranty?
2.5 years warranty for leisure use & 1 year warranty for commercial use;
We supply 2% free wearing spare parts to distributor, to support their after sale service.
OEM service available;
All of our key engineers came from the previous BRP outboard factory of China DG, with more than 20years' experience.
CUSTOMERS VISIT
BOAT SHOWS
