Small Outboard Motor China Supplier

Small Outboard Motor China Supplier photo-1
US$ 400 - 1,500 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Engine 2 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 1
Engine Position Outboard
Dimensions (L x W x H) (mm) OL878*OW363*OH (S)1062,OH(L)1189

Product Description

Product:  small outboard motor china supplier

Type:2-stroke, 9.9hp





Specification

Outboard Motor ModelTE9.9D
Net Weight S:38Kg ; L: 40kg
Full Throttle Operating Range 4500-5500 r/m
Maximum Output 7.3kw/9.9hp
Idling Speed 1050±50r/m
Type Two Stroke
Displacement 246cc
Bore*Stroke 56*50mm
Ignition System CDI
Spark Plug NGK BR7HS-10
Spark Plug Gap 0.6-0.7mm
Control System Tiller Handle
Starting System  Manual
Starting Carburation System Choke Valve
Gear Position Forward-Neutral-Reverse
Gear Ratio 2.08 (27:13)
Trim and Tilt System Manual Tilt
Recommended Fuel Unleaded Gasoline
Gear Oil 0.250L
Fuel Tank Capacity 24L





Certification

CE/SGS/ISO 9001



Advantages

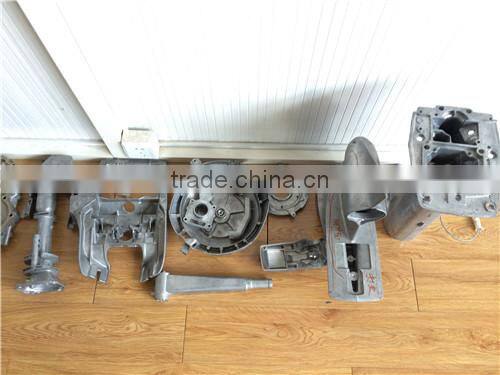

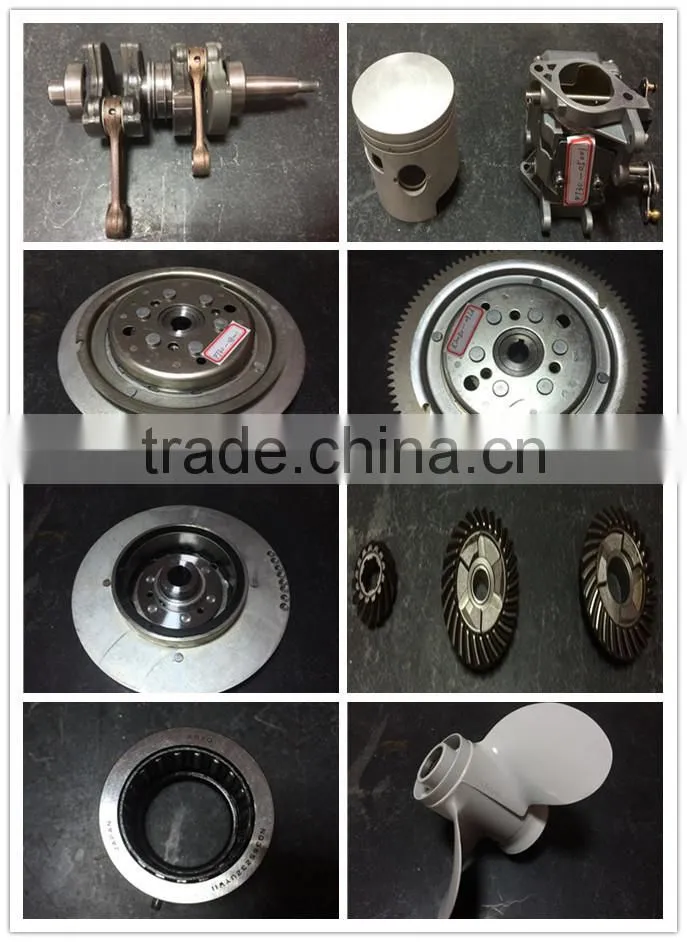

1,Most die casting parts and plastic parts are made by our own factory, assure the quality control



2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti corrosion;



3,Our main engineers used to work in previous BRP Chinese subsidiary plant, we learn from BRP technology, our outboards are more quiet;



4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;



5, Besides the gasoline outboards, we can also supply propane outboards;



6, Different color available: Pearl white, Dark grey, Jewelry blue



7  95% spare parts are compatable with Yamaha Spare parts, easy for maintenance



8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more powerful

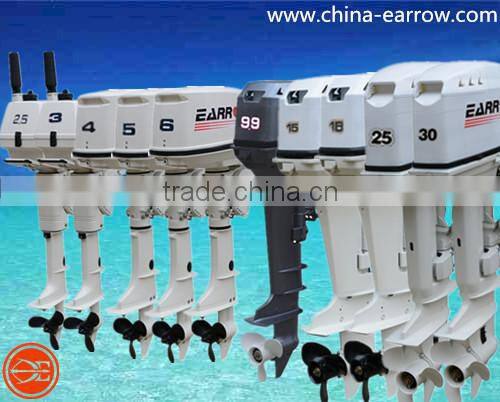

Product Series



We have both 4 and 2 stroke series, we also have 4 stroke propane engines which are more environment friendly. Almost plastic and die casting parts are made by ourselves, almost parts are made by Aluminum and treated by special surface treatment, so that we could control the quality serious, it is anti-corrosion and easy to carry.





small outboard motor china supplier

small outboard motor china supplier

small outboard motor china supplier

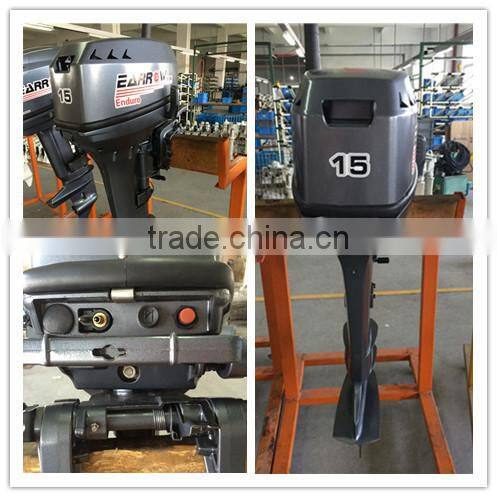

9.9HP 2 STROKE  outward appearance same with 15HP;

COPY YAMAHA NEW ENDURO SERIES, come onto market next year!

small outboard motor china supplier



small outboard motor china supplier


Our Services

 OEM service



2% free spare parts based on MOQ



Warranty

1 year for commercial usage;

2 years for pleasure;



small outboard motor china supplier







Packaging & Shipping

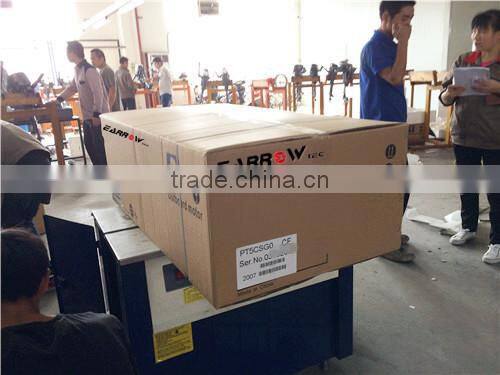

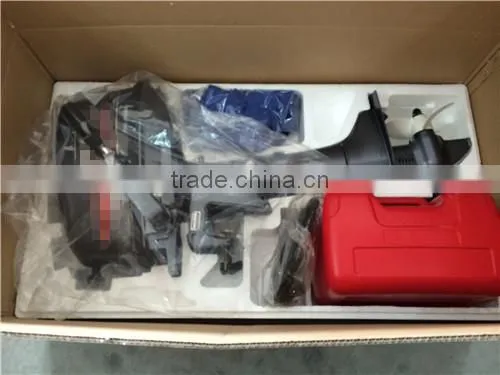

Package

Standard export package, carton box with white foam inside;



Logistic

The forwarder could be choose by you, we could provide some information of forwarders if you need.



Port of Load

Ningbo, our factory is located in xiapu zone of beilun Ningbo Zhejiang China, the over street is a container storage yard.  Very convenient  for delivery.



small outboard motor china supplier

small outboard motor china supplier











FAQ

Details

  1. production time: 20 workdays after order confirm and receive 30% deposit
  2. CE standard, FOB Ningbo, USD currency
  3. MOQ: 1~10 units
  4. shade material details pls check attached quotation sheet
  5. packing details as attached also
  6. samples:  2-3 working days,  we keep stock. Freight collect. Courier cost need to check with express when packing finished.
  7. Payment

    L/C, T/T

    30%deposit T/T 70% before shipping T/T or L/C at sight.

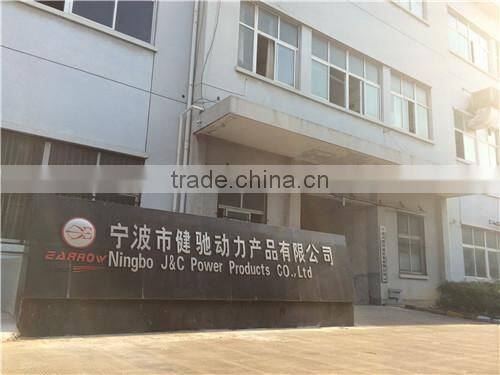

Company Information

We are Chinese professional outboard motor manufacturer. All our outboards are CE approval and our factory is ISO9001 qualified.

Our product range is from 2.5hp to 30hp,both two and four stroke are available.



Philosophy

Quality First, User-oriented Management, Dedication to customer services



R & D Team

OEM service available;

All of our key engineers came from the previous BRP outboard factory of China DG, with more than 10years' experience.



small outboard motor china supplier

small outboard motor china supplier

small outboard motor china supplier

small outboard motor china supplier

small outboard motor china supplier

small outboard motor china supplier

 small outboard motor china supplier
