China Outboard Engine For Fishing Vessel

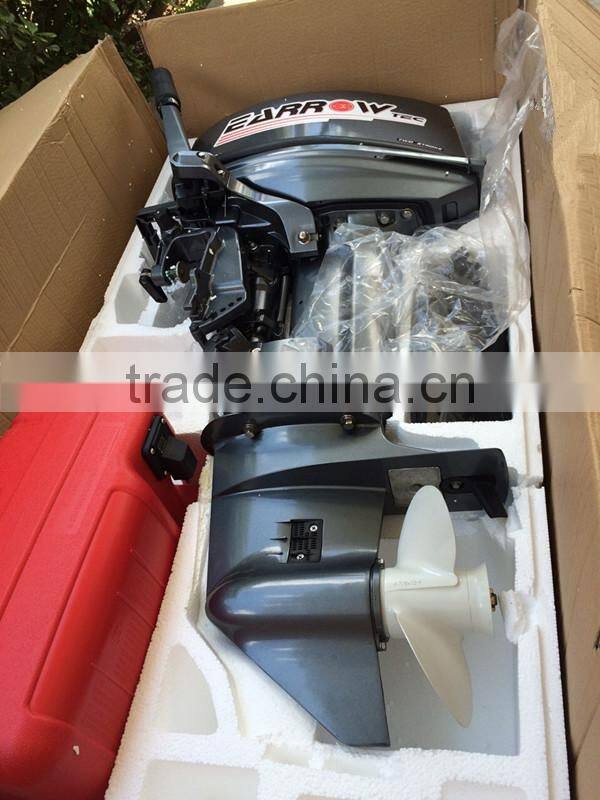

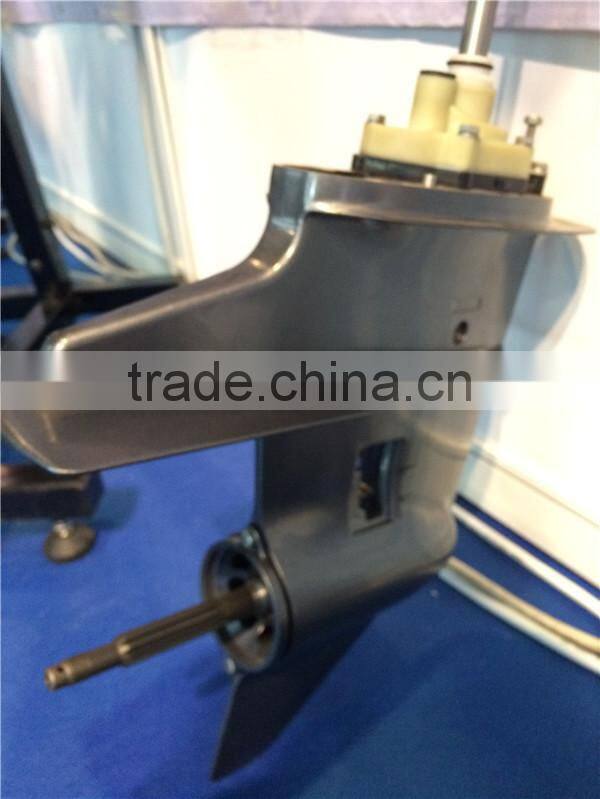

China Outboard Engine For Fishing Vessel photo-1

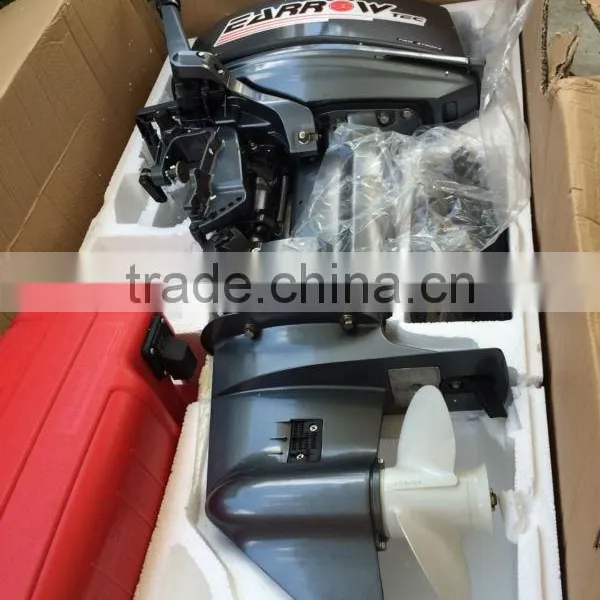

China Outboard Engine For Fishing Vessel photo-2

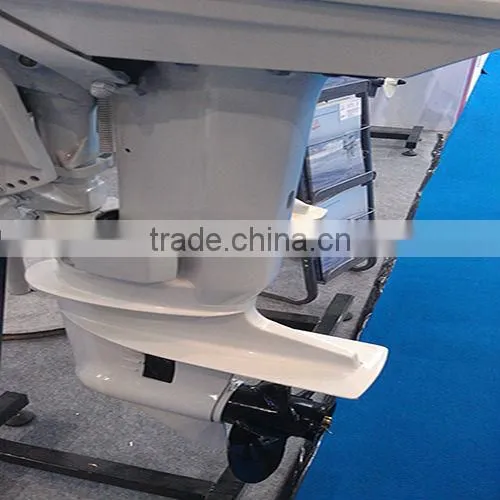

China Outboard Engine For Fishing Vessel photo-3
China Outboard Engine For Fishing Vessel photo-4

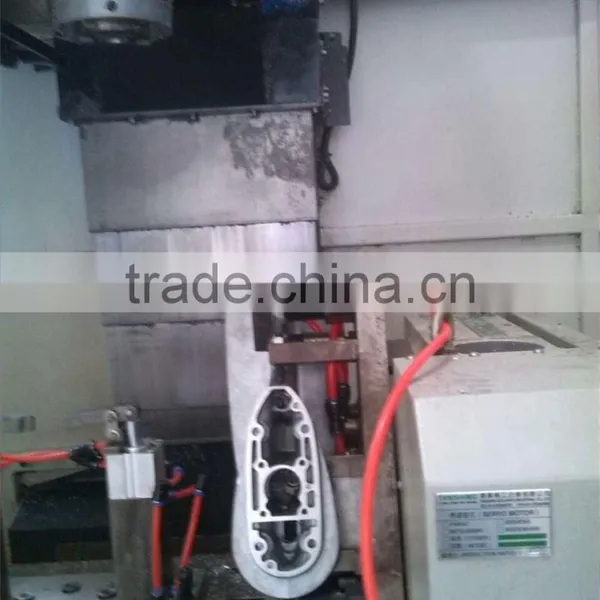

China Outboard Engine For Fishing Vessel photo-5

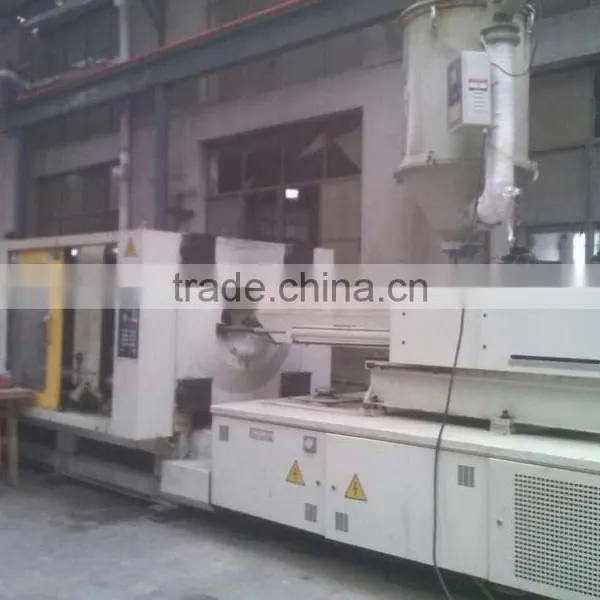

China Outboard Engine For Fishing Vessel photo-6
US$ 850 - 1,400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Engine:
2 Stroke
Engine Capacity:
1 - 2L
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Engine 2 Stroke
Engine Capacity 1 - 2L
Fuel Type Gasoline
Cylinders 2
Engine Position Outboard
Dimensions (L x W x H) (mm) OL878*OW363*OH1062



Product Description

 EARROW outboards

 China Outboard Engine For Fishing Vessel



 Produce Range:

2 Stroke: 2.5hp to 30hp;
4 Stroke : 2.5hp to 6hp



Specification



MoldeTE9.9D
DimensionOverall length: 878mm (34.6 in)
Overall width: 363 mm (14.3in)
Overall height S:1062mm (41.8in)
Overall height L: 1189 mm (46.8in)
Net weight (S/L)38kg/ 40kg
Gross weight (S/L)58kg/  60kg
Package Size (S)121*71*44 cm³
Full Throttle Operating Range4500-5500 r/m
Maximum Output 7.3kw/9.9hp
Idling Speed1050±50r/m
TypeTwo Stroke
Displacement246cc
Bore×Stroke 56.0×50.0mm
Ignition SystemCDI
Spark PlugNGK B8HS-10
Spark Plug Gap0.9-1.0mm
Control System Tiller Handle
Starting System Manual
Starting Carburation SystemChoke Valve
Gear PositionForward-Neutral-Reverse
Gear Ratio2.08 (27:13)
Trim and Tilt SystemManual Tilt
Recommended FuelUnleaded Gasoline
Recommended Engine Oil2-stoke outboard motor oil
Fuel Oil Ratio50:1
Gear Oil0.250L
Fuel Tank Capacity24 L

 China Outboard Engine For Fishing Vessel

China Outboard Engine For Fishing Vessel

China Outboard Engine For Fishing Vessel

Our Services

 OEM  Services

2% Free Spare Parts



Advantages:

1.Our EARROW outboard compatible Yamaha, 95% spare parts interchangeable.

2.Johnson standard parts surface treatment

3. BMW car surface oil painting

4.ABS top cover more stable and the color in top cover made by one-step mould instead of painting.



FAQ

 What’s your product series currently?

Four stroke: 2.5hp, 4hp, 5hp, 6hp;

Two stroke: 30hp, 25hp, 18hp, 15hp, 9.9hp, 5hp, 4hp, 3hp, 2.5hp



Which market you have distributor till now?

Currently our main market is Some Southeast Asia & Middle American market;



How long is your company in outboards industry?

We started from 2012, for past two years, we mainly focus on produce R&D



What’s your production ability per month/per year?

The production capacity for one month is 2500PCS each month, and 30000/year;



What kind of Certificate you have:

Our plant is ISO9001 qualified; all our outboards are CE certified. We can export to most countries all over the world.



How about delivery time?

For sample order, we can delivery after payment, because we keep stock for different models;

For volume order, the delivery time will be about 15 days.



What payment terms you accept?

We prefer T/T, also we accept L/C;

How long you will test each engine before packing and shipment?

One and half hour for testing in pool before packaging



How many senior engineers in your company?

We have three senior engineer, they used to work in BRP previous China branch office;



The spare parts was made by yourself or purchased?

Some key parts buy from Taiwan, all other plastic & aluminum parts(such as bottom cover, lower unit case, propeller, crankcase etc. are made by our own plant,assure our spare parts quality control.



Which models you will develop next year?

Four stroke: 9.9HP, 15HP; Two stroke: 40HP



What color available?

Different colors for your choice-Jewelry blue, pearl white and dark grey.

Packaging & Shipping

China Outboard Engine For Fishing Vessel



Company Information



All of our key engineers came from the previous BRP outboard factory of China DG, with more than 20years' experience.
