EARROW 3 hp Outboard Motor

EARROW 3 hp Outboard Motor thumbnail-1
EARROW 3 hp Outboard Motor thumbnail-2
EARROW 3 hp Outboard Motor thumbnail-3
EARROW 3 hp Outboard Motor thumbnail-4
EARROW 3 hp Outboard Motor thumbnail-5
EARROW 3 hp Outboard Motor thumbnail-6
EARROW 3 hp Outboard Motor photo-1
EARROW 3 hp Outboard Motor photo-2
EARROW 3 hp Outboard Motor photo-3
EARROW 3 hp Outboard Motor photo-4
EARROW 3 hp Outboard Motor photo-5
EARROW 3 hp Outboard Motor photo-6
US$ 400 - 2,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New, New
Engine:
2 Stroke, 2 Stroke
Engine Capacity:
1 - 2L, 1 - 2L
Contact Supplier Request Quote Chat Now
Yongkang Longxiao Industry & Trade Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Cylinders 1
Dimensions (L x W x H) (mm) 628*289*997*(mm)



Model T3A
Dimension Overall length: 628mm (24.7 in)
Overall width: 289 mm (11.4 in)
Overall height S: 997 mm (39.3 in)
Overall height L: 1124 mm (44.3 in)
Net weight (S/L) 16.5kg/ 17kg
Gross weight (S/L) 21kg/  21.5kg
Full Throttle Operating Range 4500-5500 r/m
Maximum Output  2.2kw/3hp
Idling Speed 1200±50r/m
Type Two Stroke
Displacement 70.0 cc
Bore×Stroke  46.0×42.0mm(1.81×1.65 in)
Ignition System CDI
Spark Plug Gap 0.9-1.0mm
Control System  Tiller Handle
Starting System  Manual
Gear Position Forward-Neutral
Gear Ratio 2.08 (27:13)
Trim and Tilt System Manual Tilt
Fuel Tank Capacity 1.4 L
Propeller Size 3-7 1/4" X5 1/2"
Max fuel consumption 2L/h





Advantages:

1,Most die casting parts and plastic parts are made by our own factory, assure the quality control

2,We have a special surface pretreatment production line, passivated surface made the parts & engine more durable, anti-corrosion;

3,Our main engineers used to work in previous BRP Chinese subsidiary plant, We learn from BRP technology, our outboards are more quiet;

4, Color of top cover are one-step moulding technology instead of painting, more flexible and more corrosion resisting;

5, Besides the gasoline outboards, we can also supply propane outboards;

6, Different color available: Pearl white, Dark grey, Jewelry blue

7,95% spare parts are compatible with Yamaha spare parts,easy for maintenance

8, Our 4 stroke 6HP four stroke is one cylinder; 15HP 2 stroke is Yamaha Enduro type, which is more powerful

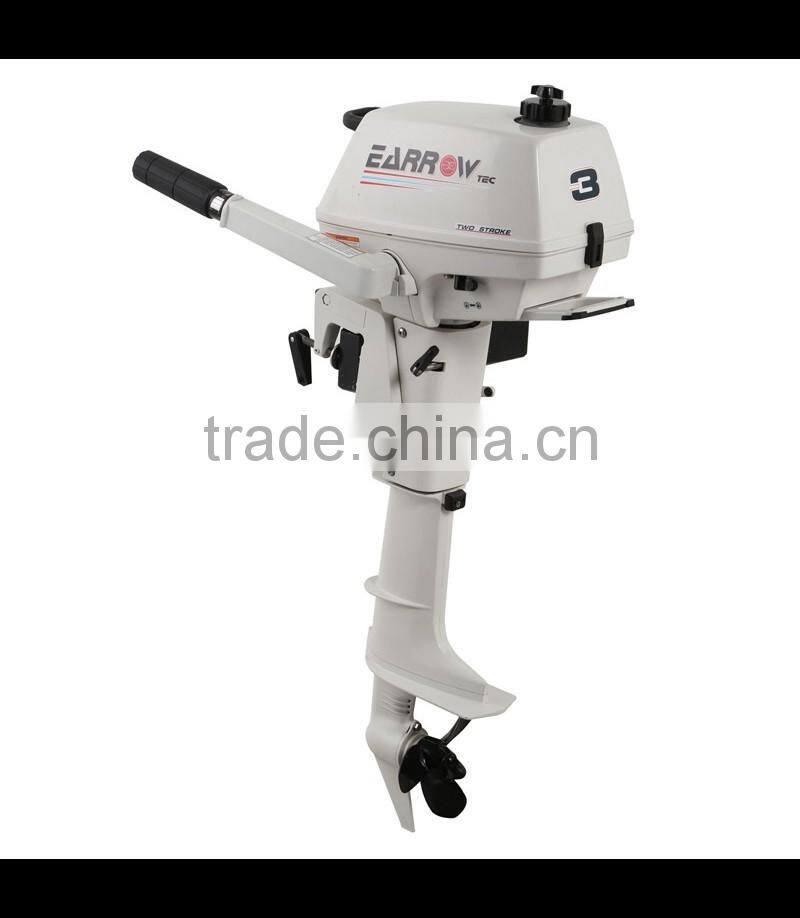

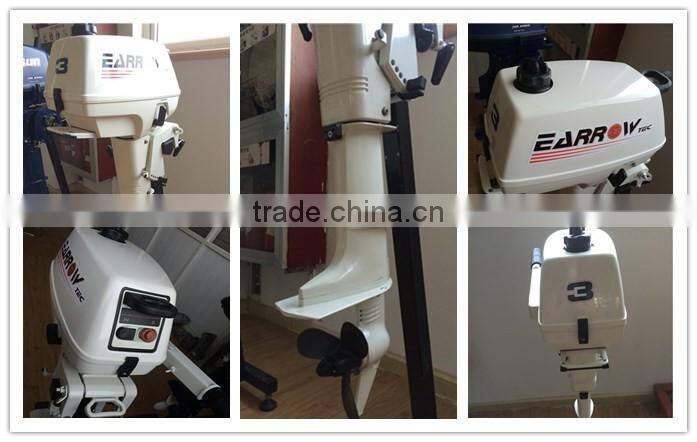

EARROW 3 hp outboard motor



EARROW 3 hp outboard motor



EARROW 3 hp outboard motorEARROW 3 hp outboard motorEARROW 3 hp outboard motor





Factory Photo



EARROW 3 hp outboard motor





EARROW 3 hp outboard motor

EARROW 3 hp outboard motor
