Product Introduction

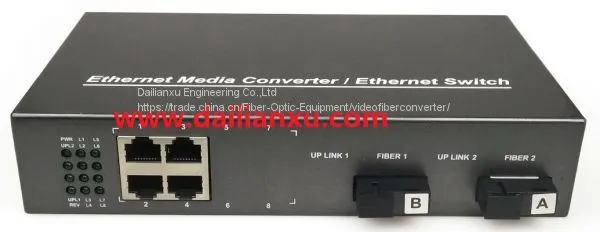

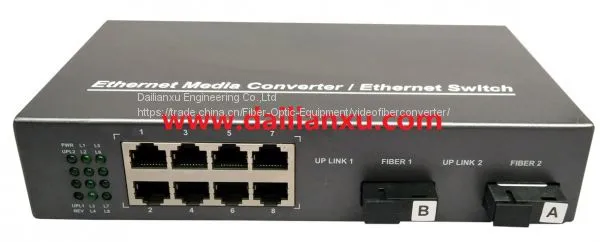

DLX-FBS-G series Fiber Backup Node type Ethernet Fiber Optical Switch is included two 1000M fiber optical ports and 4-24channels 10/100M Ethernet. Using imported original industrial components and All RJ45 ports adopt advanced Self-healing multi-stage lightning protection design, have high-level lightning, surge and ESD protection. Support 1+1 dual power supply backup, Management function optional, can be used in harsh conditions for long time.
Product Feature
● 1+1 fiber backup ports, Max.24channels 10/100M Ethernet
● Support 1+1 dual power supply backup, Supports 24hours power feeds
● Anti-lightning and ESD protection for all Ethernet ports, power ports, special connector for connect to ground
● Support Non-blocking storage and forwarding switching mode, all ports can working at full line speed and full-duplex at same time
● Auto-negotiate to NIC/HUB and MDI/MDI-X
● Support VLAN Network isolation, Bandwidth, Priority, Dynamic MAC address, broadcast storm-control etc. setting
● Supports HOL protection to reduce the packet loss
● Supports physical and logical isolation of each ports
● Supports over-sized packet, QOS, STP tree etc.
● Supports super jumbo frame(2048bit) and over-sized packets up to 10k bytes
● Indicators for Power Supply, Ethernet etc.
● Supports line speed switching of all ports and in 64~1536 frame length can reach line speed
● Standard: Full-duplex adopts IEEE 802.3x standard, Half-duplex adopts Back pressure standard
● Aluminum housing, Rack mounted, Wall mounted and standalone type optional.
● Industry grade components, 220V/110V,-48V,+24V,+12V,+5V power supply optional
● Transmission distance: 2km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)
Technologies reference
wavelength | MM:850/1310nm, SM:1310/1550nm, DFB:1260~1610nm |
Fiber power | 0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
Receiving Sensitivity | ≤-26dBm |
Bandwidth of Single wavelength | 1000M |
Transmission distance | 2km(MM),20km/40km/60km/80km/100km/120km(SM) |
Max. optic Budget | 15dbm/20dbm/25dbm/30dbm |
Fiber connector | ST/FC/SC optional |
Ethernet port | RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex |
Standard | IEEE802.3 10Base-T，IEEE802.3u 100Base-TX/FX |
Control | IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex |
Temperature | Operation:-20℃~+70℃, Storage: -40℃~+80℃ |
Humidity | Operation: 10%—90%, Storage: 5%—95% |
Dimension | 4channels: 200(L) x 138(W) x 26(H)mm 8channels: 200(L) x 138(W) x 44(H)mm 16channels: 480(L)X138(W)X44(H)mm 24channels: 480(L)X138(W)X44(H)mm |
Power supply | 220V/110V,-48V,+24V,+12V,+5V optional |
