Product Introduction

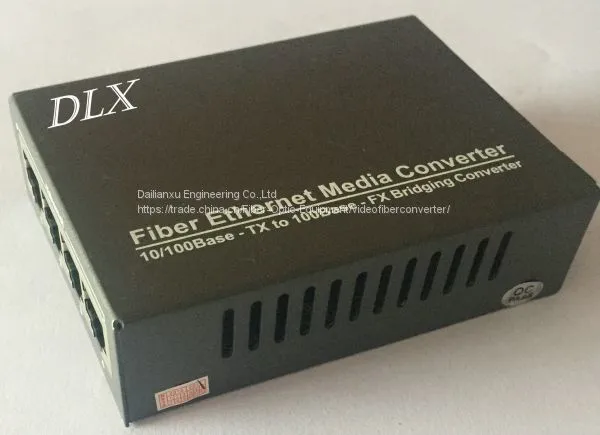

DLX-FS04 series 10/100M Ethernet Fiber Switch is included one 100M fiber optical port and four 10/100M Ethernet ports. It has the function of photo electricity switchover between 4channels 10/100M Ethernet ports and 100M optical ports. Adopts original chips and high quality fiber module, stable and excellent performance. It is used in Telecast, Telecom, Broadcast, industrial broadband etc. fiber Ethernet network. Fully compatible with IEE802.3,IEEE802.3u,100Base-TX/FX. Supports Full-duplex IEEE802.3x,IEEE802.3z and half-duplex control. Supports super jumbo frame, Auto-adaptive to different protocol and MDI/MDI-X etc. Supports Rack mounted and remote management of running state real-time monitor and performance parameter setting.
Product Feature

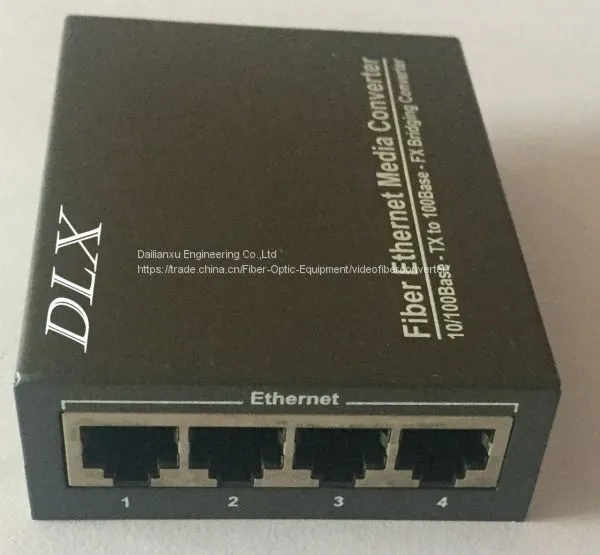

● 4channel 10/100M and one fiber port, realize the photo electricity switchover between twisted-pair and optical cable
● Supports IEEEE802.3X,Full-duplex/Half-duplex stream control, supports broadcast storm-control
● Fully compatible with IEEEE802.3u,IEEEE802.3z/ab,IEEEE802.1q, IEEEE802.3ah,10Base-Tx,100Base-TX,100Base-FX
● Supports super jumbo frame and fiber connector SC/FC/ST optional

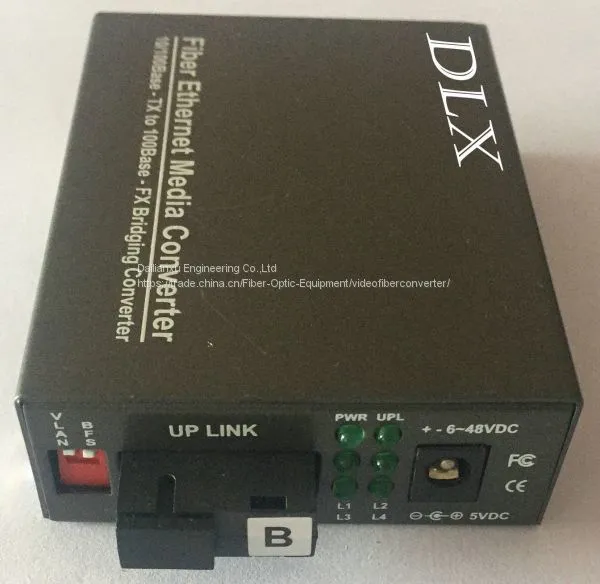

● Indicators for Power Supply, Ethernet, Optical link etc.
● Supports rack mounted
● Auto-negotiate and Auto-cross to NIC/HUB and MDI/MDI-X, Supports full-duplex and half-duplex
● Average working time of fault free is more than 50,000hours,meet the standard of telecommunication operation
● Transmission distance: 5km(multi-mode),20km,40km,60km,80KM,100km,120km optional(Single-mode)
Technologies reference
wavelength |
MM:850/1310nm, SM:1310/1550nm, DFB:1260~1610nm |
Fiber power |
0 dBm ~ -3 dBm/-5 dBm ~ -10 dBm |
|
Receiving Sensitivity |
≤-26dBm |
Bandwidth of Single wavelength |
155M |
Transmission distance |
5km(MM),20km/40km/60km/80km/100km/120km(SM) |
Max. optic Budget |
15dbm/20dbm/25dbm/30dbm |
Fiber connector |
ST/FC/SC optional |
Ethernet port |
RJ45,10/100M auto-negotiation, Full-duplex/Half-duplex |
Standard |
IEEEE802.3X,IEE802.3u,IEE802.3z/ab,IEE802.1q, IEE802.3ah,10Base-TX,100Base-TX,100Base-FX |
Control |
IEE802.3X/IEE802.3Z and Full-duplex/Half-duplex |
Temperature |
Operation:-20℃~+70℃, Storage: -40℃~+80℃ |
Humidity |
Operation: 10%—90%, Storage: 5%—95% |
Dimension |
4channels:135(L) x 120(W) x 28(H)mm 8channels:135(L) x 120(W) x 44(H)mm |
Power supply |
5V DC |
