Specifications
hot sale Geotextile fabricexcellent permeabitlity
good flexiblity
acquired and durability
easy for constr

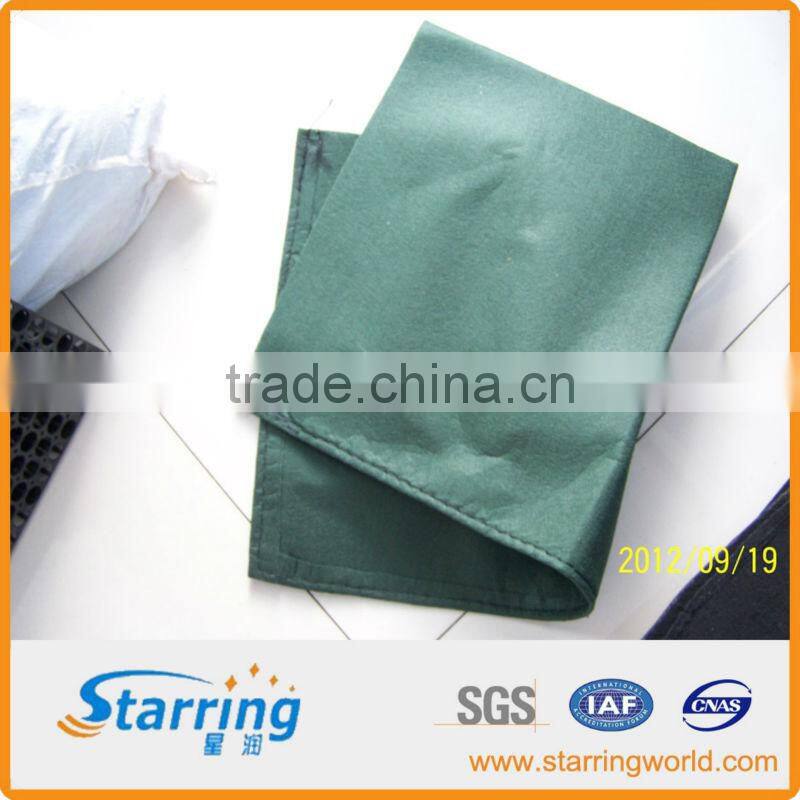

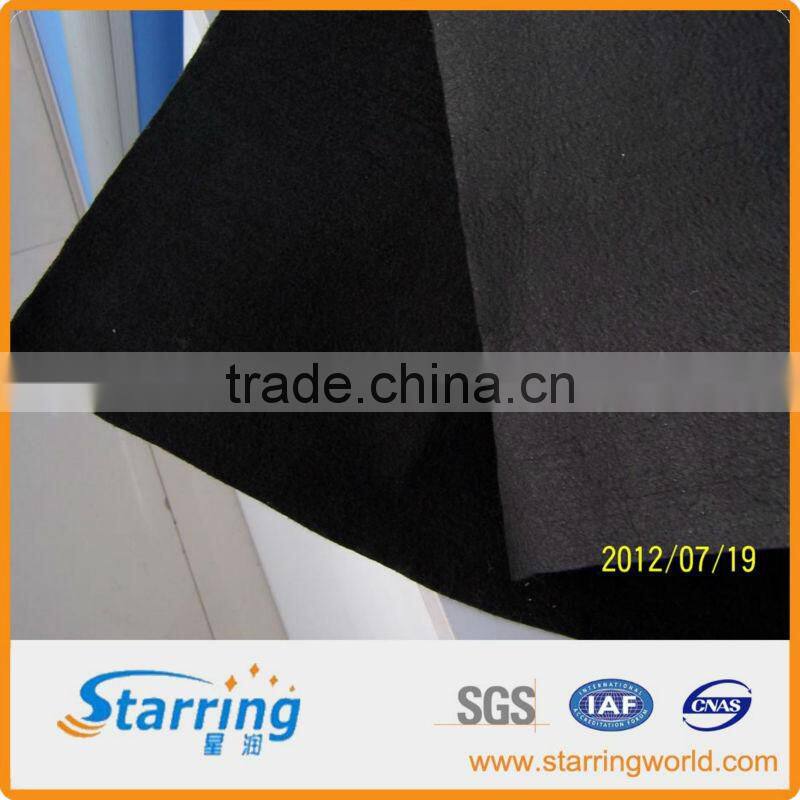

hot sale Geotextile fabric
hot sale Geotextile fabric introduction
hot sale Geotextile fabric is adopted polyester or polypropylene staple fiber by opening, carding, the messy, lapping, acupuncture and other process from production, has superior characteristics of permeability, filtration, durability and tear high strength tensile strength, bursting strength with high mechanical properties. The company's modern equipment, ISO9001 accreditation, continuous development and investment programme delivers geotextiles manufactured to the highest international standards. Each batch laboratory tested and certified.
Our highly uniform non-woven fabrics are used in Australian coating factories to manufacture termite barriers, waterproof liners and high performance petrolatum wax tapes.
hot sale Geotextile fabric features
- Geotextile has good air permeability and water permeability which can pass the water out and intercept the sand running-down
- Geotextile has high water diversion property, it can form drainage passageway, transpire the surplus liquid and gas
- High water permeability even under the pressure of soil and water
- Spread, transfer or decompose the concentrate stress effectively to avoid the soil be damaged by outside affection
- To prevent the freestone upper and lower level, soil and concrete mixed
- Polypropylene fiber or polyester fiber and other chemical fiber as raw material, acid-alkali-proof, non-corrording, non warm-eaten,antioxidant
- Light weight, convenient to use, easy construction, shorten working-period, increase economic efficiency
- Make use of geotextile to strengthen the tensile strength and anti-deformation property of soil, increase the stability of building structure, and also improve the soil quality
hot sale Geotextile fabric
Specification:
Material |
PET,PP |
Technics/process |
Needle punched / thermally bonded |
Specification |
100g/m2-1200g/m2 |
Width |
1m-6m(as you demand) |
Length |
100m(as you demand) |
Colour |
White, black, grey, green, brown, etc. |
Packing |
PE film and woven cloth |
Load |
According to your specification |
Payment terms |
T/T or L/C |
Delivery time |
Within 2 weeks |
Application |
Geotextiles with various indicators of quality, with good stress -- strain and toughness, seepage performance and uniformity, and width, etc., And is applicable to roads, water, rail, mining dams, rivers, airports and other civil engineering, anyone in the works played reinforcement, segregation, filtration, filtration, drainage, and then extend the project life, reduced cost and easy construction, and it is easy to ensure the quality of the project. |
hot sale Geotextile fabric Index
Item |
Unit |
indication
|
|||||||||||
|
Per unit area
|
g/m2
|
100
|
150 |
200 |
250 |
300 |
350 |
400 |
450 |
500 |
600 |
800 |
1000
|
Thickness |
mm≥ |
0.9
|
1.3 |
1.7 |
2.1 |
2.4 |
2.7 |
3.0 |
3.3 |
3.6 |
4.1 |
5.0 |
5.9 |
|
Tensile strength
|
KN/m≥ |
2.5 |
4.5 |
6.5 |
8.0 |
9.5 |
11.0 |
12.5 |
14.0 |
16.0 |
19.0 |
25.0 |
28.0 |
|
Elongation
|
%≥ |
25`100 |
|||||||||||
CBR bursting strength |
KN≥ |
0.3
|
0.6 |
0.9 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
2.7 |
3.2 |
4.0 |
4.5 |
Equivalent opening size (O90) |
mm |
0.07`0.2 |
|||||||||||
Vertical permeability coefficient |
cm/s |
KX(10-9`10-12) K=1.0`9.9 |
|||||||||||
Tear strength |
KN≥ |
0.08
|
0.12 |
0.16 |
0.20 |
0.24 |
0.28 |
0.33 |
0.38 |
0.42 |
0.46 |
0.60 |
0.70 |
pls feel free to contact us:
