Specifications
reinforced Geotextile fabricMaterial:PP/PET
Width:1-6m
Weight:100-1200gsm
anti-aging,anti-acid and alkal

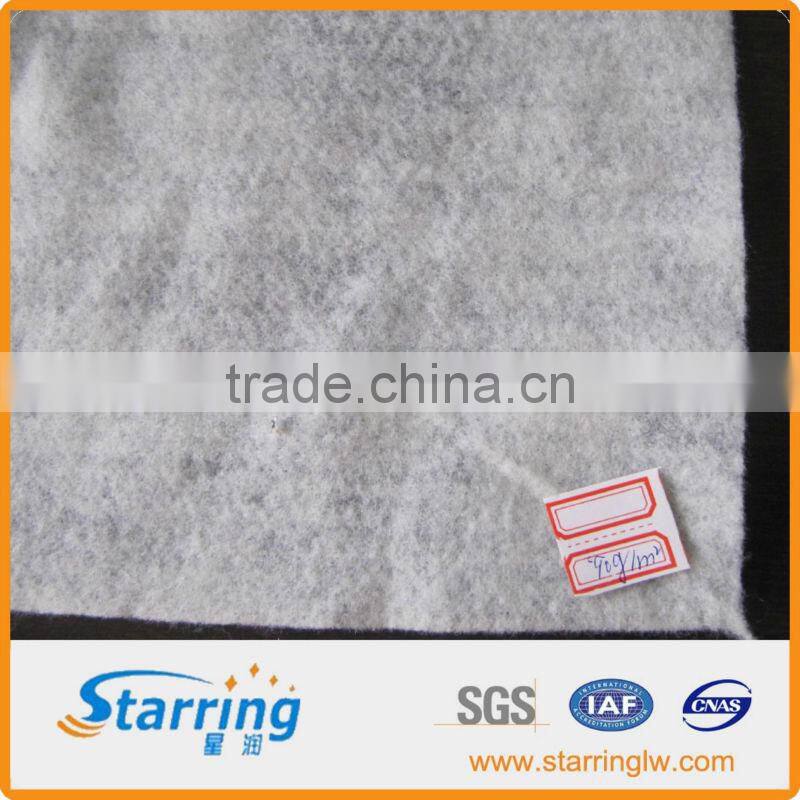

reinforced Geotextile fabric
reinforced Geotextile fabric Introduction:
Geotextiles are permeable nonwoven fabrics used to separate,filter,reinforce, protect or drain.Geotextiles allow filtration or separation of granular layers in roads and rail applications,used to protect membranes in landfill applications,used in coastal defence applications and used in landscaping to protect surfaces and structures from weeds and root growth.
Geotextiles are availabel as woven and non-woven .As liner protection, against physical damage, the non wovens are normally the answer.They are made up of fibers of polyester or polypropylene in random directions and punched together by needles during the manufacturing process.Geotextiles are commenly used to separate layers like clay and drainage and to protect liner from damage
reinforced Geotextile fabric Feature:
1 Filtration
The filtration layer of the dykes, river canal, seacoast, concrete slope, retaining walls. At the same time of preventing the clay granule from passing, it allows the water and the gas pass through freely.
2 Separation:
The isolation of the railway dregs and the roadbed, roadbed and the soft base, surface of the airdrome and parking lot and the groundsill, different dam materials. It isolates the soil and the gravel of two kinds different granule pathway from the groundsill or other buildings.
3 Adding muscle:
The highway, railway, soil-stone dam, breakwater, airport, backfill soil of retaining wall, slope protection, etc in which distributes the earth stress, prevents the side-displacement of the earth body and improves the earth body stability.
4 Protection
It prevents the bank from being washed out, protects the bank and the bottom, prevents the water and soil from being washed away.
reinforced Geotextile fabric Application:
- Road construction, highways and highway embankments.
- Airport runways.
- Shore protection in reclamation works.
- Asphalt repaving of roads.
- Coastal and riverbank revetment systems.
- Filtration.
- Drainage.
- Composites.
- Protection for geomembrane in landfills.
- Geobags manufacturing.
- Soil erosion control.
reinforced Geotextile fabric specification:
2-8m Width, 50-100m length (or according to client's requirements
reinforced Geotextile fabric Index:
|
Density |
Thickness |
Breaking Strength |
Elongation of Fracture |
Tearing Strength |
CBR Bursting Strength |
Vertical Penetration Parameter |
Equivalent Aperture |
|
g/m2 |
mm |
KN/m |
% |
KN |
KN |
cm/s |
O 95 mm |
|
100 |
0.9 |
2.5 |
25 ~ 100 |
0.08 |
0.3 |
K x (10 -1 ~ 10 -3) (K = 1.0 ~ 9.9) |
0.07 ~ 0.2 |
|
150 |
1.3 |
4.5 |
0.12 |
0.6 |
|||
|
200 |
1.7 |
6.5 |
0.16 |
0.9 |
|||
|
250 |
2.1 |
8.0 |
0.20 |
1.2 |
|||
|
300 |
2.4 |
9.5 |
0.24 |
1.5 |
|||
|
350 |
2.7 |
11.0 |
0.28 |
1.8 |
|||
|
400 |
3.0 |
12.5 |
0.33 |
2.1 |
|||
|
450 |
3.3 |
14.0 |
0.38 |
2.4 |
|||
|
500 |
3.6 |
16.0 |
0.42 |
2.7 |
|||
|
600 |
4.1 |
19.0 |
0.46 |
3.2 |
|||
|
800 |
5.0 |
25.0 |
0.60 |
4.0 |
