Vacuum Diffusion Welding Furnace

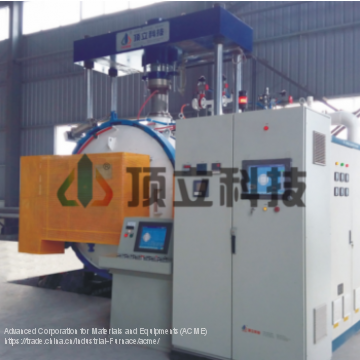

Vacuum Diffusion Welding Furnace thumbnail-1

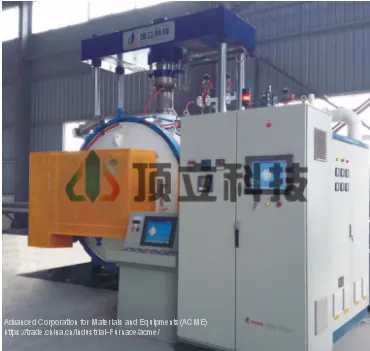

Vacuum Diffusion Welding Furnace photo-1
US$ 600000 - 6000000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
ACME
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Advanced Corporation For Materials And Equipments(ACME)
Payment & Shipping
Payment Methods:
Port of Shipment:
Any port in china
Delivery Detail:
180 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name ACME
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Usage Heat Treatment Furnace
Condition New

Description
Vacuum diffusion welding furnace is mainly suitable for pressure diffusion welding process and PM pressure sintering process of materials like dissimilar alloy, ceramics, metal ceramics.

Technical Features
1. The vacuum hot pressing furnace is configured with single chamber, internal heating, cold wall and horizontal structure.
2. The furnace is equipped with hydraulic press device, which ensures the system controlled loading pressure precisely.
3. The pressure method has two options: single-way pressure/double-way pressure.
4. The hot zone has two options: graphite insulation/full metal insulation.
5. The loading pressure has many options: 30T/35T/100T/200T/400T/500T/800T/1000T
6. The temperature has many options: 1500°C, 1800°C, 2000°C, 2300°C, 2500°C
7. The pressure head has two options: ISO static pressing graphite/TZM alloy.

Specification of Vacuum Diffusion Welding Furnace

SpecModel VDP-446 VDP-556 VDP-666 VDP-776 VDP-886 VDP-996
Effective hot zone size W×H×L (mm) 400 × 400 × 600 500 × 500 × 700 600 × 600 × 900 700 × 700 × 1100 800 × 800 × 1200 900 × 900 × 1500
Heating Power (kW) 75 90 150 270 360 540
Max.temperature(°C) 1300 1300 1300 1300 1300 1300
Temperature Uniformity (°C) ±5 ±5 ±5 ±5 ±5 ±5
Vacuum degree (Pa) 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4
Pressure Increase Rate (Pa/h) ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26
≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65


Specification of Vacuum Hot Pressing Furnace

SpecModel VHP-446 VHP -556 VHP -666 VHP -776 VHP -886 VHP -996
Effective hot zone size W×H×L (mm) 400 × 400 × 600 500 × 500 × 600 600 × 600 × 600 700 × 700 × 600 800 × 800 × 600 900 × 900 × 600
Heating Power (kW) 75 90 150 270 360 540
Max.temperature(°C) 2350 2350 2350 2350 2350 2350
Temperature Uniformity (°C) ±5 ±5 ±5 ±5 ±5 ±5
Vacuum degree of vacuum diffusion welding furnace (Pa) 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4 4 × 10-3/6 × 10-4
Pressure Increase Rate (Pa/h) ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26 ≤0.26
≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65 ≤0.65


Product Tags: vacuum furnace , diffusion welding furnace , welding furnace
