We have two types of Vacuum Oil Quenching Furnace :

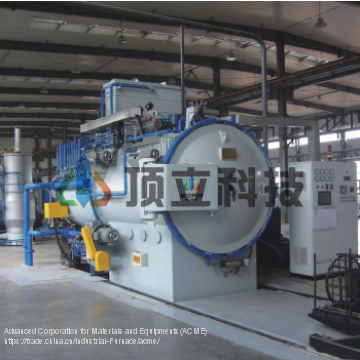

I.Horizontal Twin Chamber Vacuum Oil Quenching Furnace
Description of Horizontal Twin Chamber Vacuum Oil Quenching Furnace
The vacuum oil quenching furnace is suitable for vacuum oil quenching of materials like alloy steel, bearing steel, spring steel, die steel, high-speed steel, etc. Horizontal twin chamber oil quenching furnace can also applied to aging and gas cooling process for the above materials.
Specifications of Horizontal Twin Chamber Vacuum Oil Quenching Furnace
| SpecModel | HVOQ-334D | HVOQ-446D | HVOQ-557D | HVOQ-669D | HVOQ-7711D | HVOQ-8812D | HVOQ-9915D |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 400 | 400 × 400 × 600 | 500 × 500 × 700 | 600 × 600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 |
| Load Capacity (kg) | 75 | 250 | 400 | 600 | 1000 | 1200 | 1500 |
| Heating Power (kW) | 48 | 75 | 90 | 150 | 270 | 360 | 480 |
| Max.Temperature(°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Transportation time (S) | ≤12 | ≤15 | ≤20 | ≤25 | ≤35 | ≤35 | ≤40 |
| Oil tank volume (L) | 800 | 2000 | 3500 | 5500 | 9500 | 11000 | 14000 |
| Cooling gas (99.995%) | N2/Ar | N2/Ar | N2/Ar | N2/Ar | N2/Ar | N2/Ar | N2/Ar |
| Gas cooling pressure (bar) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
II.Vertical Twin Chamber Vacuum Oil Quenching Furnace
Description of Vertical Twin Chamber Vacuum Oil Quenching Furnace
Vertical gas cooling oil quenching furnace is applied for vacuum oil quenching of materials like alloy steel, super high strength steel, M300 steel, etc. It is specially suitable for vacuum heat treatment of long rod type parts, plate type parts, long axle parts, landing gears and similar large size parts. The jobs treated by the furnace have little deformation and good structure.
Specification of of Vertical Twin Chamber Vacuum Oil Quenching Furnace
| SpecModel | VVOQ-0812D | VVOQ-1015D | VVOQ-1218D | VVOQ-1520D | VVOQ-1825D |
| Effective hot zone size Φ D×H (mm) | Φ800 × 1200 | Φ1000 × 1500 | Φ1200 × 1800 | Φ1500 × 2500 | Φ1800 × 3000 |
| Load capacity of vacuum twin chamber oil quench furnace (kg) | 600 | 1000 | 1200 | 2000 | 2500 |
| Heating Power (kW) | 240 | 330 | 450 | 570 | 750 |
| Max.Temperature(°C) | 1050 | 1050 | 1050 | 1050 | 1050 |
| 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Transportation time (S) | ≤20 | ≤36 | ≤45 | ≤60 | ≤72 |
| Oil tank volume (L) | 5000 | 98000 | 11000 | 180000 | 240000 |
| Cooling gas (99.995%) | N| N | N | N | N | |
| Gas cooling pressure (bar) | 2 | 2 | 2 | 2 | 2 |
