We have two types of Vacuum Brazing Furnace :
I. Vertical Bottom Loading Vacuum Brazing Furnace
Description of Vacuum Bottom Loading Brazing Furnace
Vacuum bottom loading furnace is used for vacuum brazing of materials like non-ferrous metal, stainless steel, titanium alloy, high temperature alloy.
Specifications of Vacuum Bottom Loading Brazing Furnace
| SpecModel | VHVB-0608S | VHVB-0608S | VHVB -0810S | VHVB -1012S | VHVB -1215S | VHVB -1520S |
| Effective hot zone size Φ D×H (mm) | Φ600 × 800 | Φ800 × 800 | Φ800 × 1000 | Φ1000 × 1200 | Φ1200 × 1500 | Φ1500 × 2000 |
| Load capacity (kg) | 650 | 850 | 1000 | 1150 | 1450 | 1800 |
| Heating Power (kW) | 120 | 180 | 270 | 330 | 420 | 540 |
| Max.Temperature (°C) | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| TemperatureUniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree of vertical vacuum brazing furnace (Pa) | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas cooling pressure (bar) | 2/6/10 | 2/6/10 | 2/6/10 | 2/6/10 | 2/6/10 | 2/6/10 |

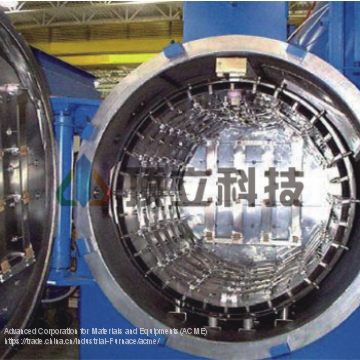

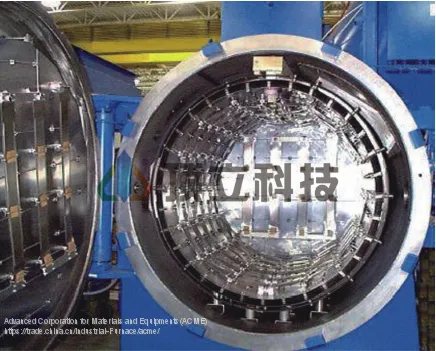

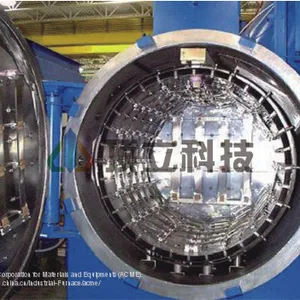

II. Horizontal High Vacuum Brazing Furnace
Description
Horizontal high vacuum brazing furnace is used for the vacuum brazing of materials like non-ferrous metal, stainless steel, titanium alloy, high temperature alloy, cemented carbide, etc.
Specification of Horizontal High Vacuum Brazing Furnace
| SpecModel | HHVB-446S | HHVB-557S | HHVB-669S | HHVB-7711S | HHVB-8812S | HHVB-9915S |
| Effective hot zone size W×H×L (mm) | 400 × 400 × 600 | 500 × 500 × 700 | 600 × 600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 |
| Load capacity (kg) | 250 | 400 | 600 | 1000 | 1200 | 1500 |
| Heating Power (kW) | 75 | 90 | 150 | 270 | 360 | 480 |
| Max.temperature of vacuum brazing furnaces (°C) | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree (Pa) | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas Cooling Pressure (bar) | 2/6/10 | 2/6/10 | 2/6/10 | 2/6/10 | 2/6/10 | 2/6/10 |
