We have two types of Vacuum Annealing Furnace :

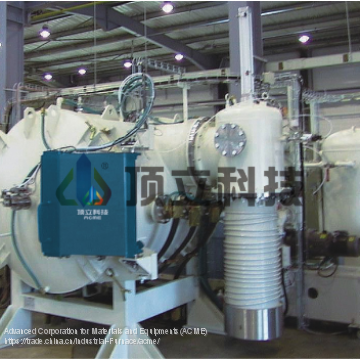

I.Horizontal Single Chamber Vacuum Annealing Furnace
Description of Horizontal Single Chamber Vacuum Annealing Furnace
Horizontal vacuum annealing furnace is applied for bright annealing of materials like tool steel, die steel, high speed steel, ultra-strength steel, magnetic material, stainless steel, non-ferrous, etc.
Specifications of Horizontal Single Chamber Vacuum Annealing Furnace
| SpecModel | HVA-334S | HVA-446S | HVA-557S | HVA-669S | HVA-7711S | HVA-8812S | HVA-9915S |
| Effective hot zone size W×H×L (mm) | 300 × 300 × 400 | 400 × 400 × 600 | 500 × 500 × 700 | 600 × 600 × 900 | 700 × 700 × 1100 | 800 × 800 × 1200 | 900 × 900 × 1500 |
| Load capacity (kg) | 75 | 250 | 400 | 600 | 1000 | 1200 | 1500 |
| Heating Power (kW) | 48 | 75 | 90 | 150 | 270 | 360 | 480 |
| Max.Temperature(°C) | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree of vacuum single chamber annealing furnace (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas cooling pressure (bar) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |

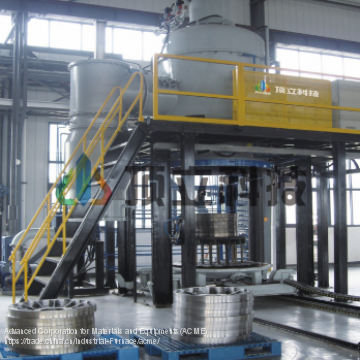

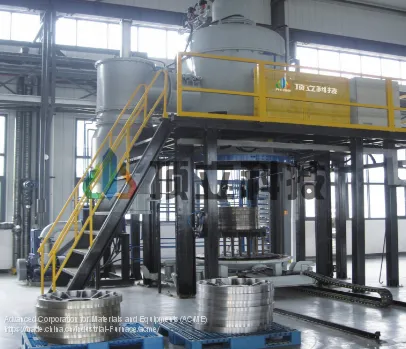

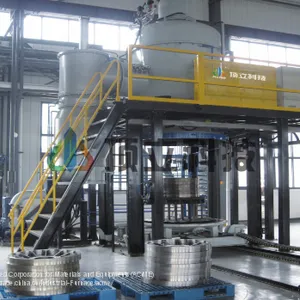

II.Vertical Bottom Loading Vacuum Annealing Furnace
Description
Vertical bottom loading annealing furnace is satiable for bright annealing of materials like tool steel, die steel, high-speed steel, ultra-strength steel, magnetic material, stainless steel and non-ferrous metal. It is also specially used for vacuum annealing of large size jobs which is easy to deform, such as long pole-shape parts, shaft parts, board parts, etc.
Specifications of Vertical Bottom Loading Annealing Furnace
| SpecModel | VVA-0608S | VVA-0808S | VVA-0810S | VVA-1012S | VVA-1215S | VVA-1515S | VVA-1520S |
| Effective hot zone size Φ D×H (mm) | Φ600 × 800 | Φ800 × 1000 | Φ1000 × 1000 | Φ1000 × 1200 | Φ1200 × 1500 | Φ1500 × 1500 | Φ1500 × 2000 |
| Load capacity (kg) | 650 | 1000 | 1150 | 1300 | 1450 | 1800 | |
| Heating Power (kW) | 120 | 180 | 270 | 330 | 390 | 420 | 540 |
| Max.Temperature(°C) | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 | 1150 |
| 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | 1350 | |
| Temperature Uniformity (°C) | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 | ±5 |
| Vacuum degree of vacuum annealing furnace (Pa) | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 | 4 × 10-1 |
| 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | 4 × 10-3/6 × 10-4 | |
| Pressure Increase Rate (Pa/h) | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 | ≤0.26 |
| ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | ≤0.65 | |
| Gas cooling pressure (bar) | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
