Quick Details
- Condition: New
- Type: Core Drilling Rig
- Power Type: Electric
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: xitan
- Model Number: XY-4-5
- Usage: engineering
- Voltage: 380V
- Power(W): 22kw
- Dimension(L*W*H): 5.0*2.66*1.05m
- Weight: 900kg
- Certification: ISO9001:2008
- Warranty: 6 Months
- After-sales Service Provided:Engineers available to service machinery overseas
- Model: XY-4-5
- Hole angle: 360°
- Stroke of spindle: 600mm
- Max .lifting capacity: 72KN
- Max .feeding capacity: 54KN
- Max. torque of spindle: 12800N.m
- Hoist Max .lifting capacity: 30KN
- Back stroke: 720mm
- Forward spindle speed:8/34/48/57/71/105/150/218r/min
- Reverse spindle speed: 15/47r/min
Product Description
Quick Detail:
1. The drill can be mainly in application of foundation piles construction in small diameter for grouting pile holes drilling of high building, port and bridge, etc.
2.Changed different tower,drilling tool and pump, it can be used for water well drilling .
Description:

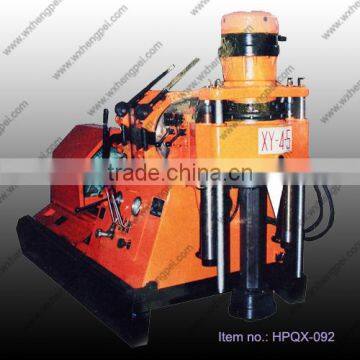

1. XY-4-5 drilling rig is a construction drilling rig with mechanical transmission and hydraulic feeding system. It is used in middle and small diameter pile drilling for buildings, port, dam, bridge and basic engineering
2. Changed drill head, it can be used for core drilling rig.
3.Changed different tower,drilling tool and pump, it can be used for water well drilling .
Applications:
1. Middle and small diameter pile drilling for buildings, port, dam, bridge and basic engineering
2.Engineering geological exploration.

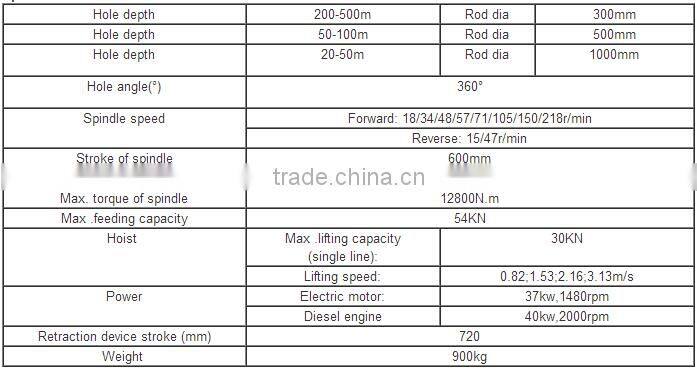

Specifications:
