Quick Details
- Condition: New
- Type: Core Drilling Rig
- Power Type: Diesel
- Place of Origin: Jiangsu, China (Mainland)
- Brand Name: xitan
- Model Number: XY-4T
- Usage: Ore
- Voltage: 380V
- Power(W): 37KW
- Dimension(L*W*H): 3.55*1.25*4.05m
- Weight: 4000kg
- Certification: ISO9001:2008
- Warranty: 6 Months
- After-sales Service Provided:Engineers available to service machinery overseas
- Model: XY-4T
- Hole Depth: 700-1000m
- Feeding stroke: 600mm
- Max.Torque: 2650NM
- Max. Hoisting Force: 30KN
- Max .lifting capacity: 80KN
- Max .feeding capacity: 60KN
- Nominal Height of Tower: 10m
- Nominal Area of Base: 4*4m
Product Description
1. XY-4T can be widely used in the carbide and diamond bits, engineering geological exploration, exploitation of superficial-zone petroleum and natural gas, mine workings ventilation and water discharge tunnel drilling.

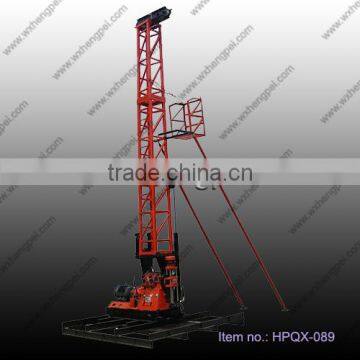

2. The XY-4T core drill rig, integrated rig with tower into one unit, consists of XY-4 drill rig and mast-type drill tower, with the function of hydraulic lifting and lowering of tower.
3. The rig is simple in structure, reasonable in design, light in weight, easy to operate; it is in a wide range adjusting angle. It is especially suitable for drilling of hole with great slope angle.
4. The tower body of XY-4T Drill Rig is used as lifting drill tools for drilling vertical as well as inclined holes. The range of adjusting angels (in clock-wise direction) for drilling inclined holes is 0°-90°.
5. Less control handles have been equipped for the drilling rig.
Applications:
1. Core drilling with carbide and diamond bit .
2. Engineering geological prospecting.
3. Water discharge tunnel.
4. Exploitation of superficial-zone petroleum and natural gas, mine workings ventilation.

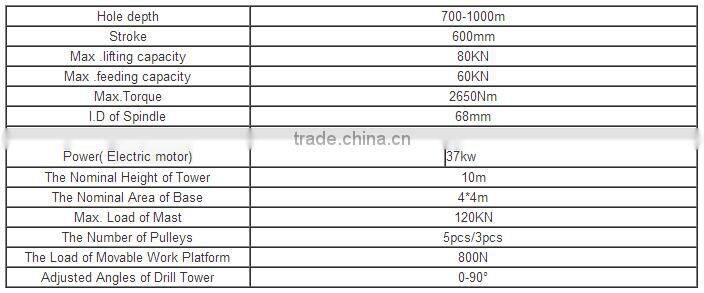

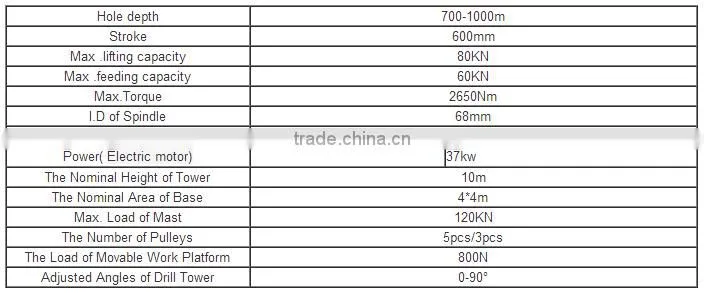

Specifications:
