Horizontal Diamond Core Drilling Rig Machine XY-4AT

Quick Details

• Condition: New
• Type: Core Drilling Rig
• Power Type: Electric
• Place of Origin: Jiangsu, China (Mainland)
• Brand Name: xitan
• Model Number: XY-4AT
• Usage: exploration drilling
• Voltage: 380V
• Power(W): 37KW
• Dimension(L*W*H):2680*1100*1935mm
• Weight: 1990KG
• Certification: ISO9001:2008
• Warranty: 6 Months
• After-sales Service Provided:Engineers available to service machinery overseas
• Model: XY-4AT
• Hole Depth: 700-1200m
• Feeding stroke: 600mm
• Drill tower angle: 45-90°
• Max.Torque: 3500NM
• Max. Hoisting Force: 30KN
• Max .lifting capacity: 80KN
• Max .feeding capacity: 60KN
• Nominal Height of Tower: 10m
• Nominal Area of Base: 4000*4000mm

Product Description

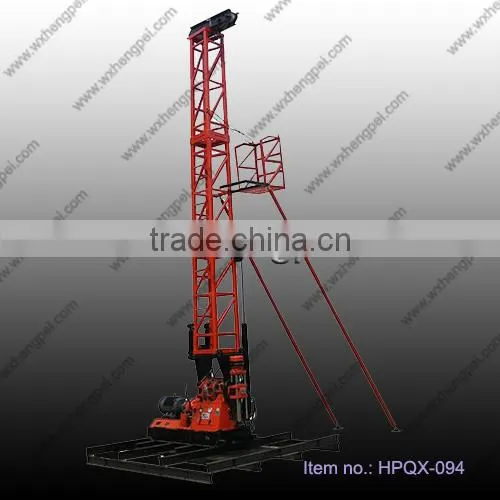

Model XY-4AT drilling rig is a portable multi-purpose drilling rig for  core exploration and engineering construction.

It  is a machine with drilling rig and drill tower,the tower body is strong,stable,pieces less,easy installation,easy moving,whole weight is light.The drill tower also has the function of up and down,with the simple and reasonable construction,easy to operate.

The drill tower adjusted angle is wide,operating flexibility,especially for wide-angle inclined hole drilling.

Applications:

1. Core drilling with carbide and diamond bit .

2. Engineering geological prospecting.

3. Water discharge tunnel.

4. Exploitation of superficial-zone petroleum and natural gas, mine workings ventilation.

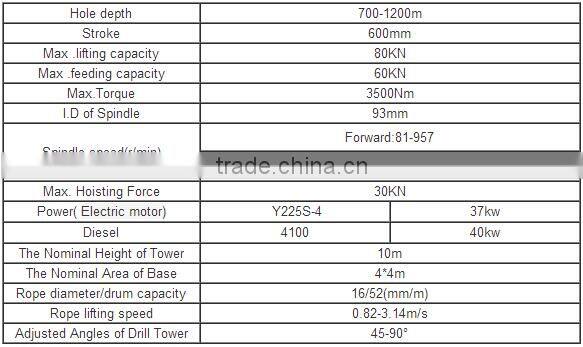

Specifications:
