MEGATRO 220KV 2B7 ZMC1 suspension Transmission tower

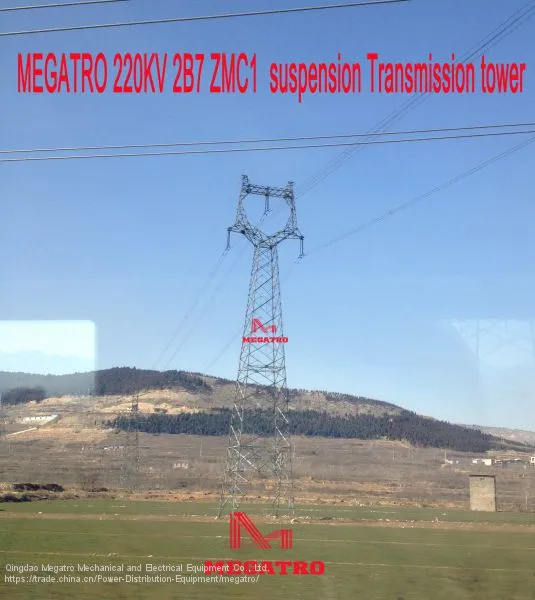

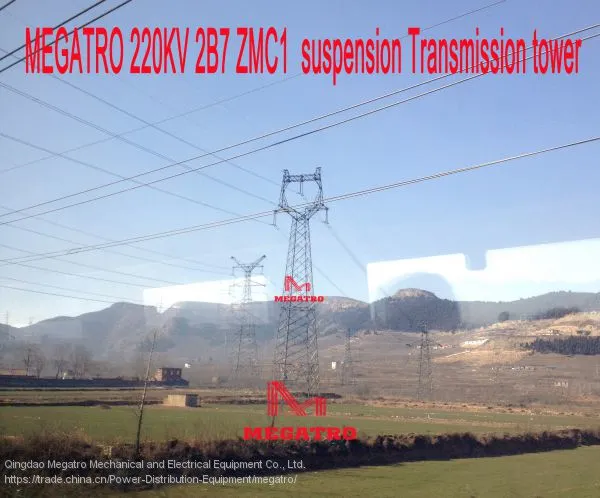

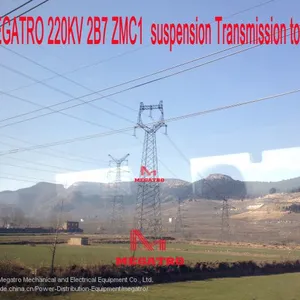

This photo refers to our 220KV 2B7 ZMC1 suspension Transmission tower, it is widely used in our Chinese market. Some of technical features of this tower as follow:
1 climate condition
Item |
Temperature (℃) |
Wind speed (m/s) |
Ice thickness (mm) |
Max. temperature |
40 |
0 |
0 |
Mini. temperature |
-40 |
0 |
0 |
Ice thickness |
-5 |
10 |
10 |
Basic wind speed |
-5 |
31 |
0 |
Installation condition |
-15 |
10 |
0 |
Annual temperature |
10 |
0 |
0 |
Lightning overvoltage |
15 |
10 |
0 |
Operation overvoltage |
10 |
15 |
0 |
Hot-line work |
15 |
10 |
0 |
2 tower design data
|
Tower type |
Nominal Height scope (mm) |
Nominal Height (mm)
|
Horizontal span (m) |
Vertical Span (m)
|
Angle º |
Insulator Type
|
Horizontal Span at angel condition |
2B7 ZMC1 |
21～30 |
37 |
380 |
600 |
/ |
I type insulator |
/ |
30 |
360 |
600 |
|||||
Conductor type: 2×LGL-400/35 |
OPGW: JLB-150 |
||||||
3 Tower estimated weight and foundation force
|
Tower Type |
Tower weight scope (kg) |
Foundation force scope (KN) |
|||||
Tmax |
Tx |
Ty |
Nmax |
Nx |
NY |
||
2B7 ZMC1 |
6577～8687 |
249～294 |
37～38 |
31～35 |
309～363 |
41～43 |
35～37 |
MEGATRO is a full service engineering company with a global reputation for delivering excellence and innovation in power transmission, transformation, distribution, and telecommunications systems. Our MEGATRO provide and design this type 220KV 2B7 ZMC1 suspension Transmission tower mainly for our Chinese and overseas client. Since 2004, MEGATRO focus mainly international market and had export many kind of transmission structures to overseas clients. MEGATRO has been manufacturing lattice transmission tower & tapered steel poles for lighting, traffic control, communication and utility applications. MEGATRO pioneered the development of transmission tower, telecom tower, substation, and other steel structure and was also at the forefront in the design of Transmission tower.
Over 10 years of experience and innovation in engineering, designing and building towers has evolved MEGATRO into its current form:
A complete selection of towers including self-support, lattice steel tower, monopoles and guyed towers, form custom-designed radar towers to broadcast towers and energy infrastructure. MEGATRO carries a variety of related products including fall protection, transmission lines, antennas, obstruction lights, and accessories, and other products if client need, MEGATRO also tailored product as per client condition.
MEGATRO mainly design all kinds of towers and posts for:
a. Telecoms
b. Power transmission
c. TV and Radio Broadcast
d. Roads and City Development
e. Wind energy solution
f. Steel structure and workshop
Our complete selection of towers includes:
a. Self-supporting
b. Monopoles
c. Guyed towers
d. Custom-designed radar towers
e. Broadcast towers
f. Power transmission
MEGATRO also designs and manufactures tower related products including:
a. Fall protection
b. Antenna brackets
c. Other accessories if needed by clients
Today, with over 10 years of experience and our commitment to excellence, MEGATRO remains an industry leader in the manufacture and design of steel tubular & angular & monopole structures for all Highway, Municipal, Custom, telecom, lighting and electric Utility applications. MEGATRO has a complete staff of professional engineering personnel trained in the PLS Pole program and three different manufacturing processes for producing steel towers, poles and other supports. We utilize the latest versions of PLS-CADD, PLS-POLE, TOWER, AutoCAD and other CAD software.
The structure shall be designed according to load combinations given as per IEC 61936-1 and as illustrated below:
Normal loads
1 Dead weight load
2 Tension load
3 Erection load
4 wind load
Exceptional loads
1 Switching forces
2 short-circuit forces
3 Loss of conductor tension
4 Earthquake forces
Moreover, MEGATRO is fully equipped and qualified to carry out Design Engineering services which includes:
√ Overhead Transmission line steel tower & Telecom steel tower
Basic Design and Analysis
√ Shop Erection Drawings
√ As-Built Drawings
MEGATRO performs in-house design activities specializing in electrical overhead transmission &telecom tower steel works, which include wind and earthquake loading, static analysis, stress analysis by finite element methods and fatigue. Our Engineering Department is boasting of highly qualified engineering who are conversant with international codes and standards. The work is carried out with extensive use of CAE/CAD via a large of computer network. The computer hardware & drafting software are liked to the CNC workshop equipment for downloading of information thereby eliminating error and saving valuable production time.
