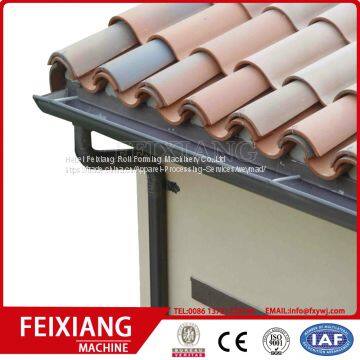

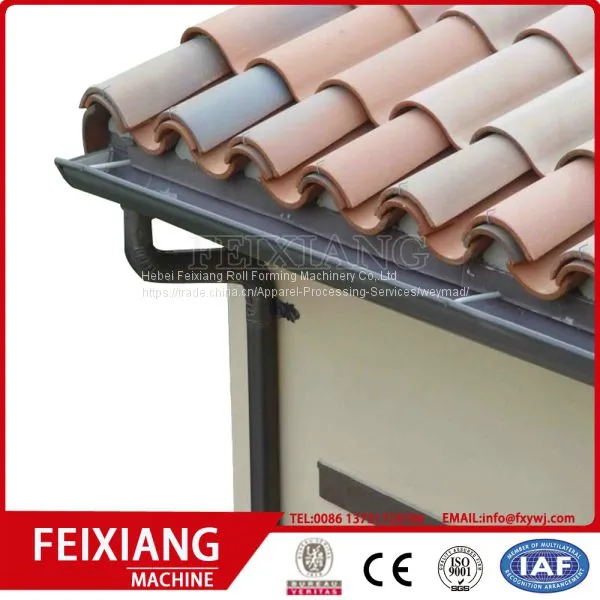

Downspout pipe water roof roll forming machine

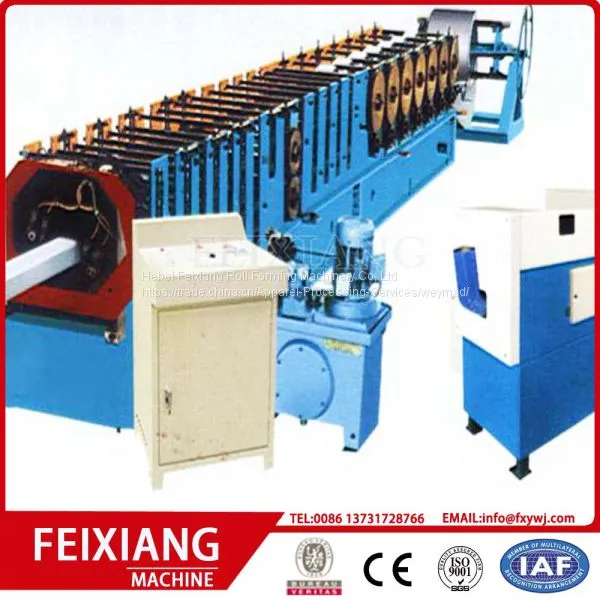

Our downspout roll forming machine mainly consists of uncoiler, roll forming system, cutting equipment, protective guard, hydraulic system, control system and out table. It can make curve for down pipe to meet the requirement of practical engineering projects.
1.Main technical parameter
a. Raw material spec: 0.5-0.8mm colored steel plate or aluminium plate
b. Type of the Pipe: Round/Square Down Pipe
c. Main motor power: 7.5kw
d. Hydraulic station power:4kw
e. Forming speed: 8-12m/min
f. Forming stations: 20
g. Brand of PLC: Delta PLC
h. Dimension: 12000*850*1300 mm
i. Total Weight: 8.5 Ton
2.Main accessories of downspout pipe roll forming machine
| 1 | Decoiler(manual or hydraulic for options) | 1 set |
| 2 | Main Forming Machine | 1 set |
| 3 | Hydraulic Station | 1 set |
| 4 | Hydraulic Cutting | 1 set |
| 5 | PLC Control System | 1 set |
| 6 | Run Out Table | 1 set |
3. Work flow
Decoiling --- Coil sheet guiding and feeding --- Roll forming ---Cut to length --- Product packaging
Technical parameters:
| No. |
| |
| 1 | suitable material | Colored Steel plate, aluminum plate, GI, PPGI, |
| 2 | Width of the raw material | As customer request |
| 3 | Rows of rollers | 20-22 rows |
| 4 | material of roller | high grade 45# steel(plated chrome on surface) |
| 5 | appearance size | 19m*1m*1.4m |
| 6 | Main motor | Main motor 7.5kw |
| 7 | Hydraulic motor | 4kw |
| 8 | Thickness of raw material | 0.3-0.8 mm |
| 9 | Productivity | 8-10m/min |
| 10 | diameter of shaft | 50mm(Solid shafts) |
| 11 | Voltage | 380V 50Hz 3phases as per your request. |
| 12 | Structure plate thickness | Min 20mm |
| 13 | Encoder brand | Omron |
| 14 | Chain thickness | 1.5" |
| 15 | Weight | Approx 8.5T |
| 16 | Control system | Delta PLC (made in Taiwan province of China.) |
| 17 | Roller material | Cr12. |
| 18 | Cutter material | Cr12 mould steel with quenched treatment |

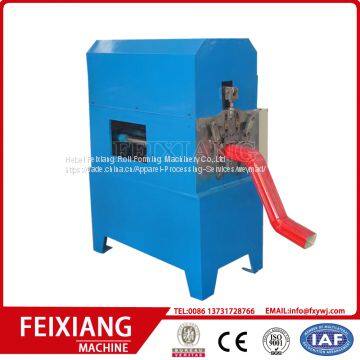

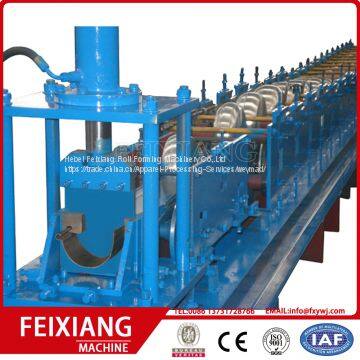

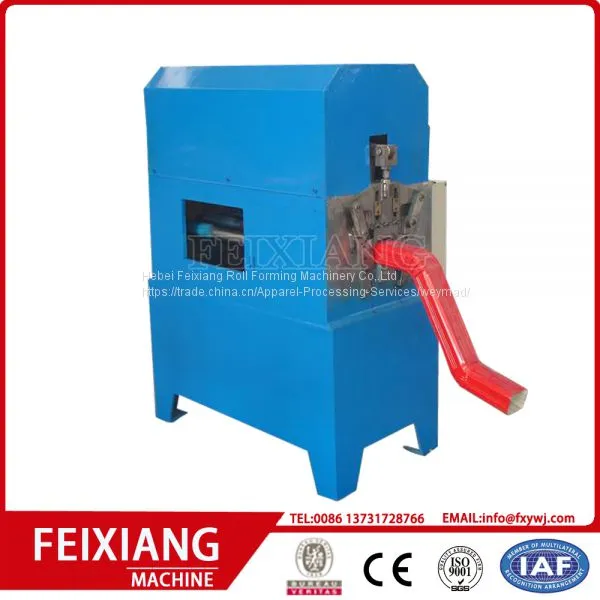

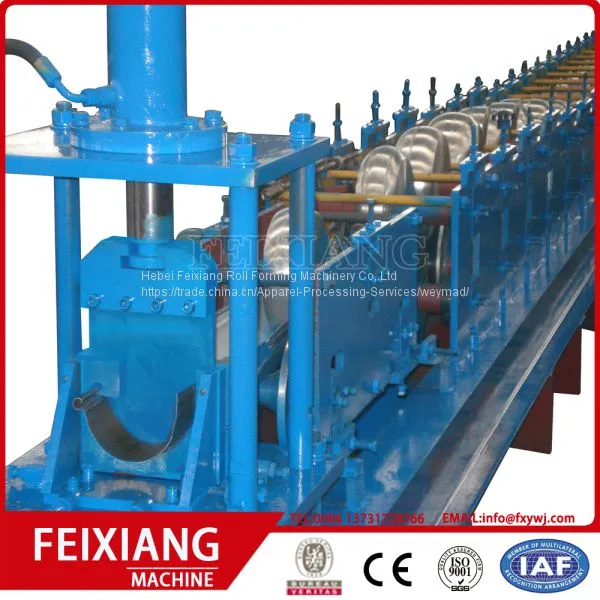

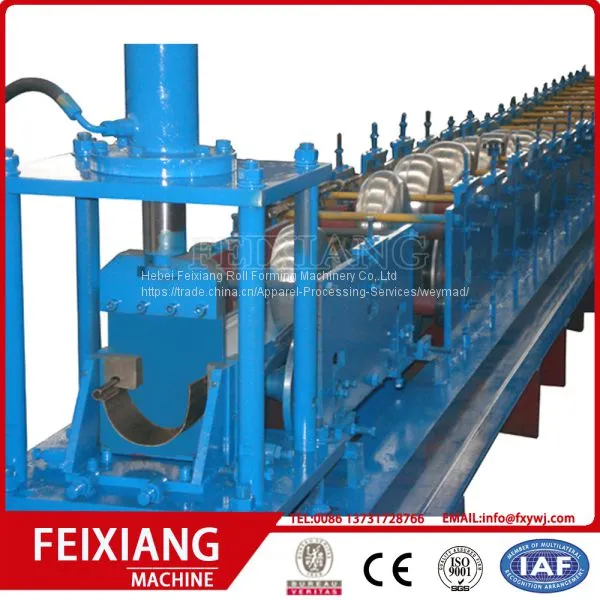

Downspout pipe roll forming machine details photos:
This the roll forming machines loading photos:
Company information:
HEBEI FEIXIANG ROLL FORMING MACHINERY CO.,LTD :
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
