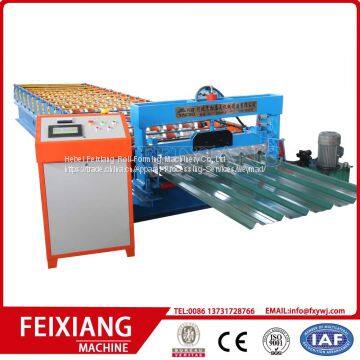

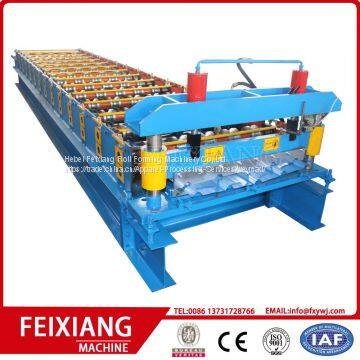

FX900 Color sheet forming equipment for roof
Features:
Color sheet forming equipment for roof
• Easy operate with high production capacity
• Carriage with hardened gear or chain
• Magnetic linear encoder for direct measuring
• Precision length and width control
• Motor brake for secure positioning
1.Working flow chart :
Manual decoiler→ Feeding material into machine→Roll forming machine→Measure length→Hydraulic cutting→Finished Products
2.Components
Color sheet foming equipment for roof

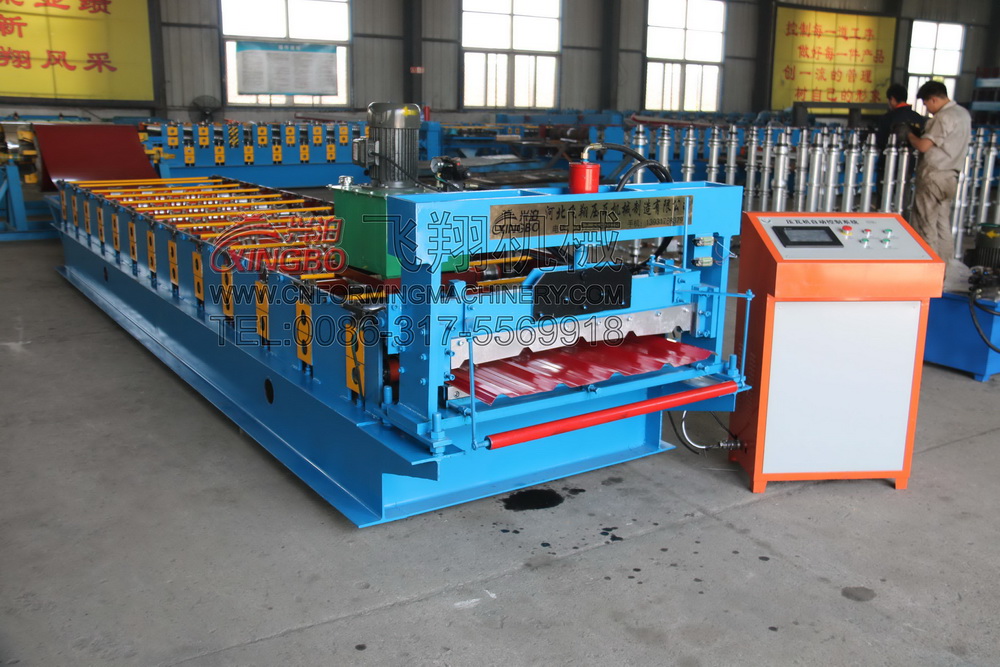

a.What the main forming machine will be???→as below
b.How to cut to shape??→By hydraulic
| Hydraulic system | Type of cutting | Hydraulic |
| Cutting motion | stop cutting | |
| Cutting tolerance | ±1mm | |
| Cutter | Cr12 | |
| Cutter quantity | 1 set | |
| Working pressure | 15-20MPA | |
| Hydraulic oil | 46# | |
| Hydraulic oil weight | 50-100KGS | |
| Hydraulic power | 3kw | |
| Cutting length | As required | |
| No distorting or wasting. High level safety factor. | ||
c.Can we cut to length and set quantity??→PLC control can do it!
| Control Device | control | By PLC |
| PLC language | English and Chinese (or as required) | |
| Brand | Delta from Taiwan | |
| PLC screen | Touch screen or text screen | |
| Coder | ENC-1-1-1T-24 from South Korea | |
| Function | Automatic length and quantity measurement, |
Packaging & Shipping
1 .Main forming machine and un-coiler is naked.
2. Tighten to container with steel wirerope and welded machine with container by angel iron.
3. PLC system and motor can be packed in waterproof plastic coverage if needed and necessary.
Company Information
HeBei Feixiang Roll Forming Machinery Co.,Ltd
a. Two decades professional cold steel forming equipments manufacturer
b. One comapny with two factory,about 30000 square meter,more than 100 employees
c. National GB/T,CE,ISO9001:2008 Certificates
d. Built business relationship with customers from more than 65 countries and areas
After-Sale Service
1). Our engineer are available service oversea in warranty period
2). Out of warranty period we also keep providing technical support online
