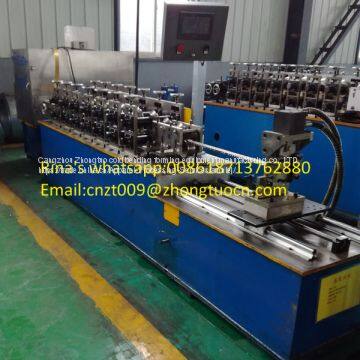

high speed rotary punching L wall angle machine high speed wall angle machine
This high speed rotary punching L wall angle machine high speed wall angle machine is high speed with punching the holes.also the high speed rotary punching L wall angle machine high speed wall angle machine can be designed with servo motor, the high speed rotary punching L wall angle machine high speed wall angle machine is with high speed. so the whole line is high speed.
Full automatic high speed L Angel drywall channel roll forming machine brief introduction:

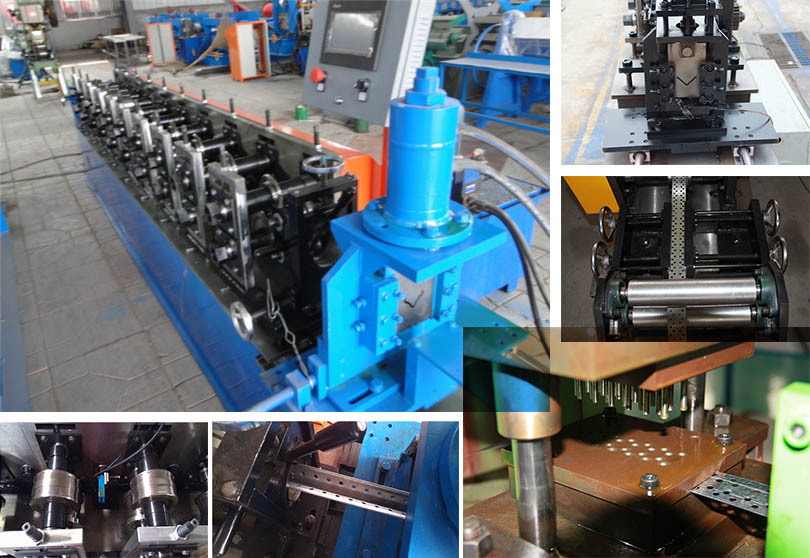

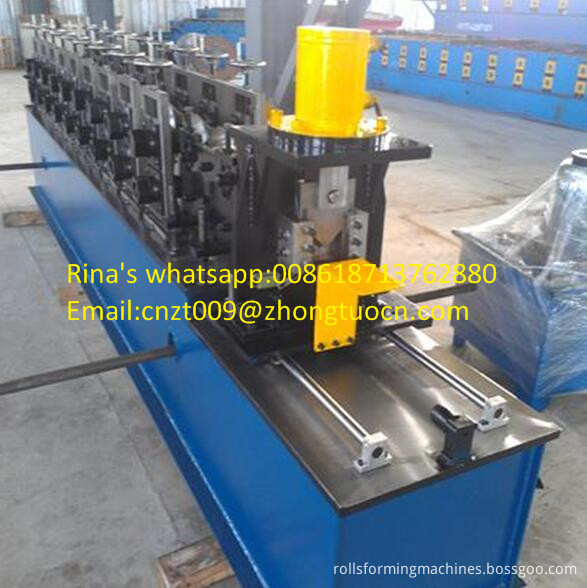

This full automatic high speed L Angel drywall channel roll forming machine with punching Holes is one popular machine. It can be roll forming and punching as a whole. It is controlled by computer all the line. Put raw material into the line and get the final angle keel with holes. Angle profile roll forming machine is easy to operate.
Size: From 30*25mm, thickness: 0.5-0.7 mm.
2.Processing flow diagram of machine

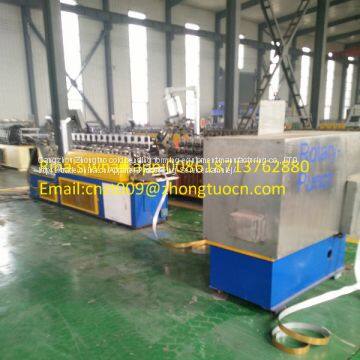

Manual decoiler→Feeding material into machine →Roll forming machine →Measure length →Hydraulic cutting →Finished Products
| configurations |

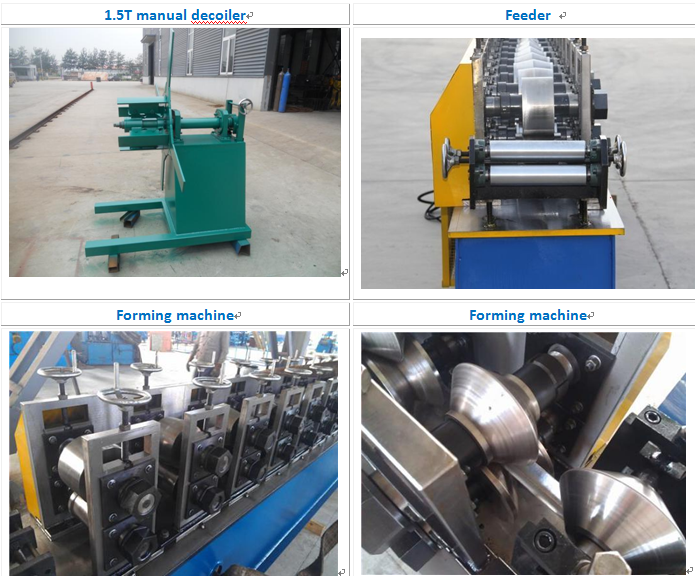

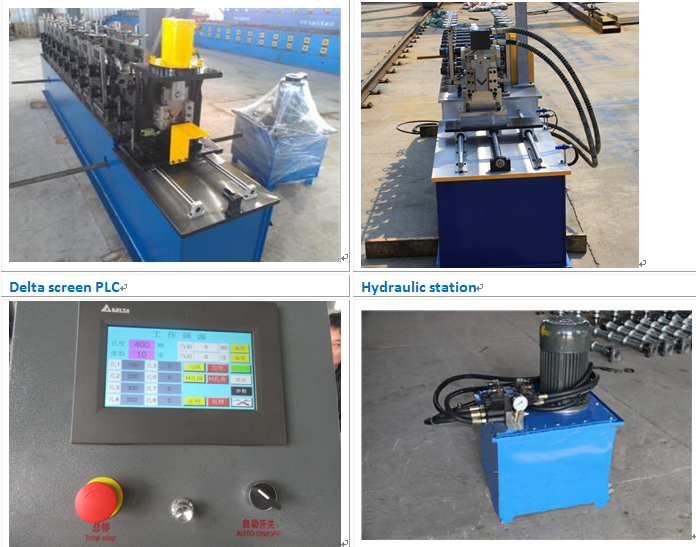

manual decoiler, guiding platform,main machine of roll forming, cutting device, electric motor,hydraulic station,Delta PLC control system, run out table
| ||
|
Material | Raw material | Galvanized | |
| Thickness | 0.5-0.7 mm | ||
|
Manual decoiler | Inner Diameter:450-550mm | Expand by manual | |
| Outer Diameter: max 1500mm | |||
| Max Coil width:300mm | |||
| Capacity: 1.5T | |||

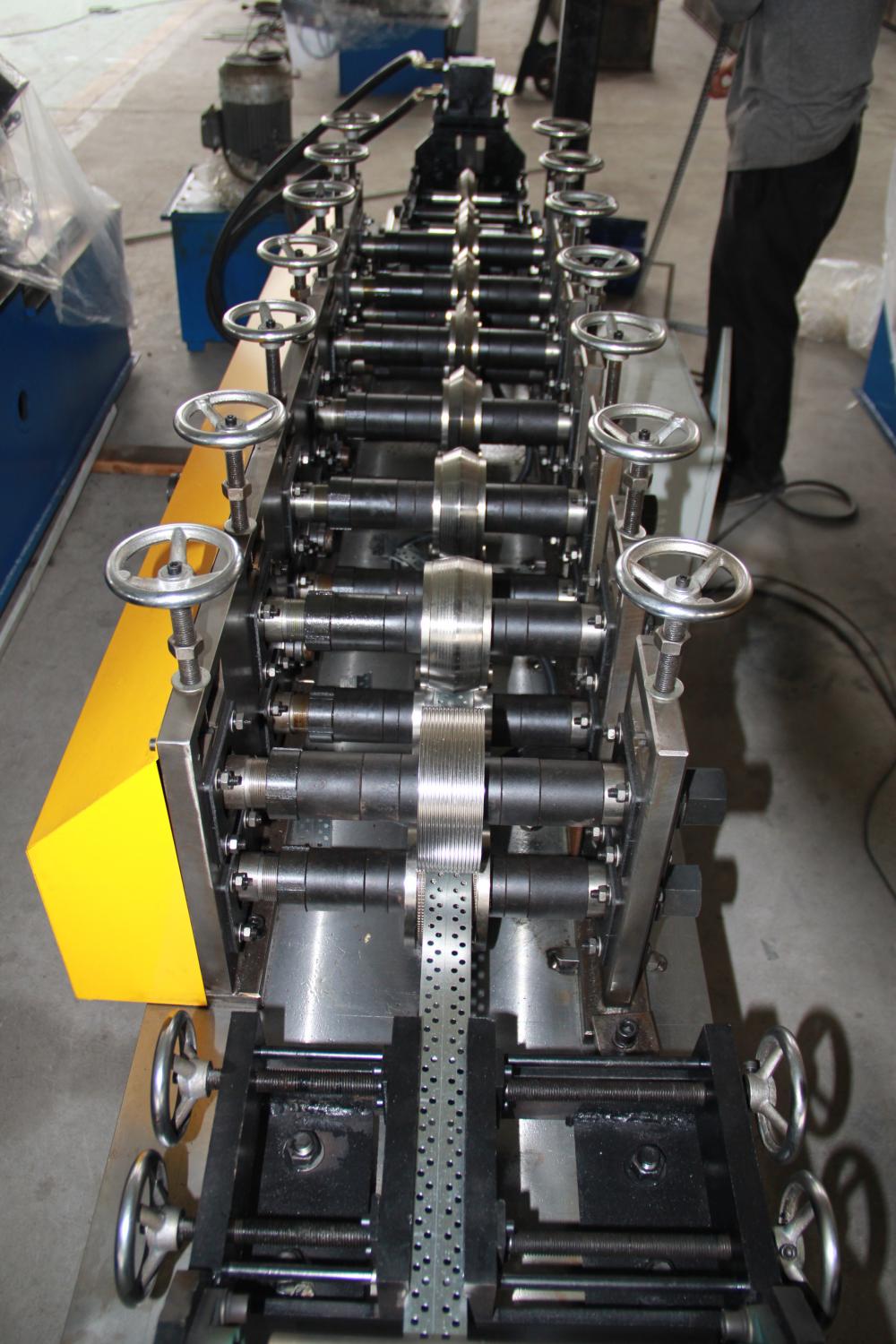

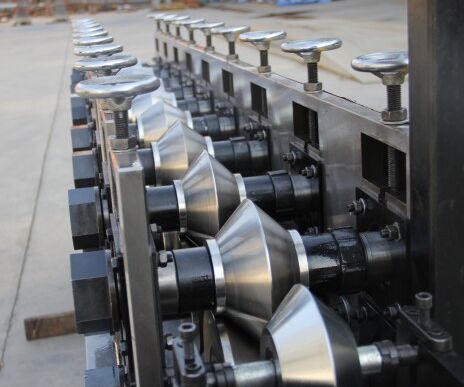

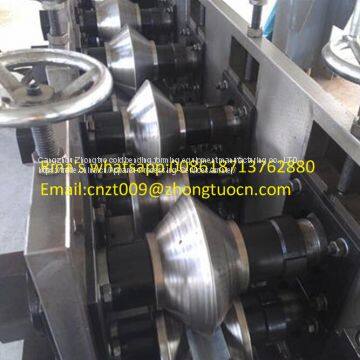

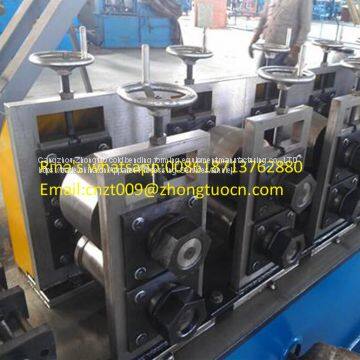

| Main Forming machine | Forming steps | 9 rollers | |
| Shaft diameter | 40mm | ||
| Design type | Guide column | ||
| Machine frame | Memorial arch | ||
| roller material | GCr12MoV steel | ||
| shaft material | 45# steel with tempering | ||
| Work speed | 10-25m/min | ||
| Transport | By gear | ||
| Power of main machine | 3kw | ||

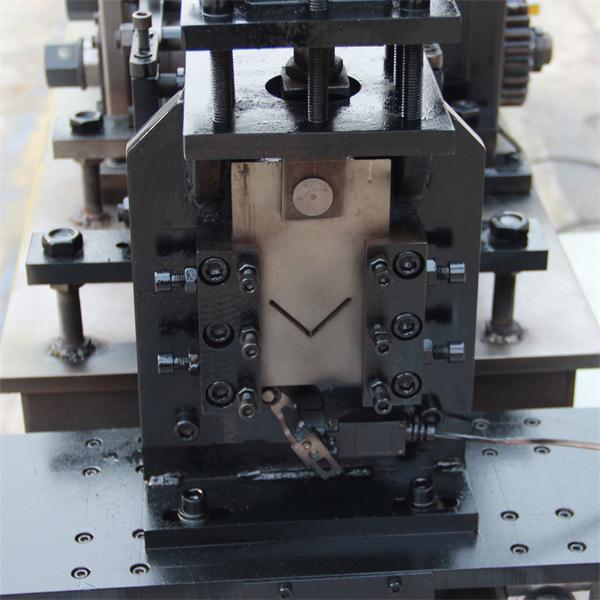

| Type of cutting | Hydraulic | ||
| Cutting tolerance | ±1mm | ||
| Cutter | Gcr12 | ||
| Cutter quantity | 1 set | ||
| Working pressure | 20MPA | ||
| Hydraulic system | Hydraulic oil | 46# | |
| Hydraulic power | 3kw | ||
| Cutting length | As required | ||
| No distorting or wasting. High level safety factor. | |||
|
Control Device | control | By PLC | |
| PLC language | English and Chinese (or as required) | ||
| Touch screen | Delta | ||
| Function | Automatic length and quantity measurement | ||
|
Other Spare part | Weight | About 3 ton | |
| Dimension | 3200*800*1400 (mm) L x W x H | ||
| Main body color | Main body color | ||
| Voltage | 380v/50hz/3ph(or as required) | ||
| Spare cutting blade | One piece for one size | ||
| Fuse | 2 pieces | ||
| Relay | 2 pieces | ||
| Travel switch | 2 pieces | ||
| Solenoid valve | 1 pieces | ||
| Terms of payment | 1.Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection. LC is accepted. 2.Deliver time: 30 working days. | ||
| Warranty and Training | 1. Warranty: Support the technology all the life. And the machine broken because of quality, we can change the broken part for free within one year. 2. Training: If you come to our factory,we can teach you for free. If you need technician go foreign, the buyer need pay the cost for visa, hotel, ticket, food and others, and buyer need pay the technician USD50/day for salary. There need one technician. Training time will be one week. | ||
