Product Description

galvanized steel stud forming machine

galvanized steel stud forming machine is with the: uncoiler, feeding and beveling and roll forming and cutting . The first designing solution is by one mold of changing the gap on the shaft with one cutting system. This designing is with the advantage of save the space, and save the machine cost. The second designing of the solution is by two molds on one shaft and with two sets of molds, one C mold and one U mold. This design can save the time of changing the mold. The third designing mold is one machine table with two separate C machine and U machine, so that the C profile machine and the U profile machine can run at the same time together, also each of the both can run separately. This C U machine design can save much workshop space, can have much high capacity.

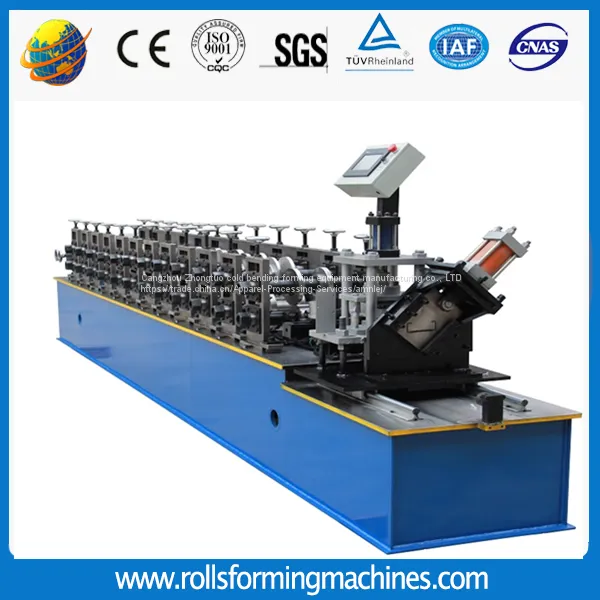

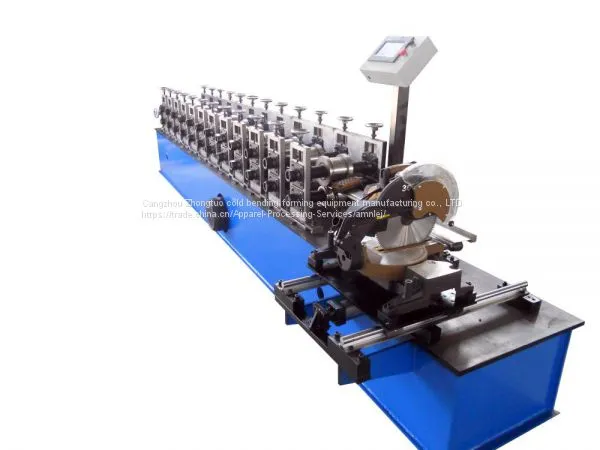

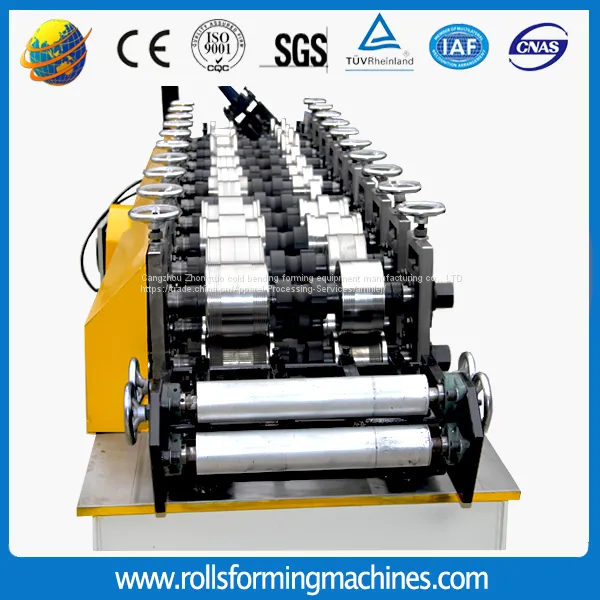

Please refer to below machine design picture:

Here are the machine specifications of the one kind of the combined pictures below:

1.Processing flow diagram of machine

Manual decoiler→ → Feeding material into machine →Roll forming machine →Punching→ Measure length →Hydraulic cutting →Finished Products

2. Technical parameters

configurations	manual decoiler / guiding platform / main machine of roll forming / cutting device / electric motor / hydraulic station / Delta PLC control system / run out table
Material	Raw material	Galvanized
	Processing material	GI galvanized steel PPGI
	Thickness	0.4 -0.8mm
	Material hardness	550-350MPA
	Formed width	28/60mm
	Forming speed	25m/min
	Working speed	20m/min
Manual decoiler	Inner Diameter:450-550mm	Expand by manual
	Outer Diameter: max 1500mm
	Max Coil width:300mm
	Capacity: 1.5T
Main Forming machine	Dimension	4500х1000х1400 L x W x H
	Weight of main part:	3 tons
	Forming steps	10rollers
	Shaft diameter	40mm
	Design type	Memorial arch
	roller material	GCr12MoV steel
	shaft material	45# steel
	Work speed	0-25m/min
	Transport	By gear
	Power of main machine	5.5kw
	Type of cutting	Hydraulic
	Cutting tolerance	±1mm
	Cutter	Gcr12
	Cutter quantity	1 set
	Working pressure	20MPA
Hydraulic system	Hydraulic oil	46#
	Hydraulic power	3kw
	Cutting length	As required
	No distorting or wasting. High level safety factor.
Control Device	control		By PLC
	PLC language		English and Chinese (or as required)
	Brand		Generally Delta, or as your requirement
	Function		Automatic length and quantity measurement
	Main body color		As you need
	Voltage		380v/50hz/3ph(or as required)
	Spare cutting blade		One piece for profile
	Fuse		2 pieces
	Relay		2 pieces
	Travel switch		2 pieces
	Solenoid valve		1 pieces
Accessories	conk		2 pcs,
	fuse-link		4 pcs
	Rubber mat		1 set
	Bolt spanner		1 set
Terms of payment	1.Terms of payment: 30%T/T ,Balance to be paid before shipping after inspection. 2.Deliver time: 25 days.
Warranty and Training	1. Warranty: Support the technology all the life. And the machine broken because of quality, we can change the broken part for free within one year. 2. Training: If you come to our factory,we can teach you for free. If you need technician go foreign, the buyer need pay the cost for visa, hotel, ticket, food and others, and buyer need pay the technician USD50/day for salary. There need one technician. Training time will be one week.

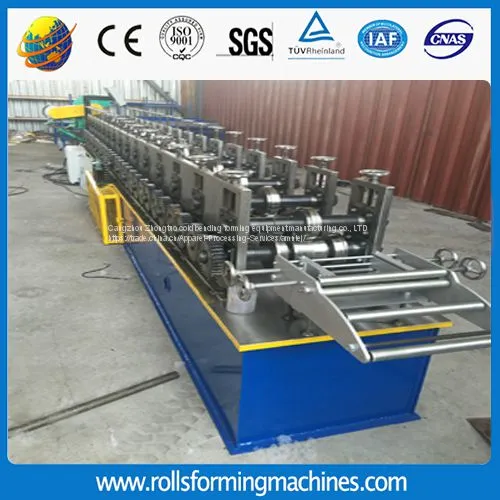

The photos of the whole 60 27 27 28 machine line picture:

Zhongtuo cold roll forming machine factory is a professional manufacturer in this ceiling and drywall forming machine line.

The engineers can design different kinds of the machine according to your requirements. If you need any of this machine, please feel free let me know, we will make and design the best machine for you!
