Product Description

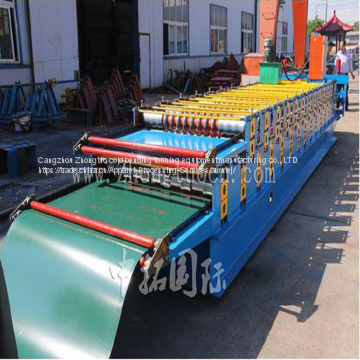

Two layer metal sheet roofing making machine
Product Description

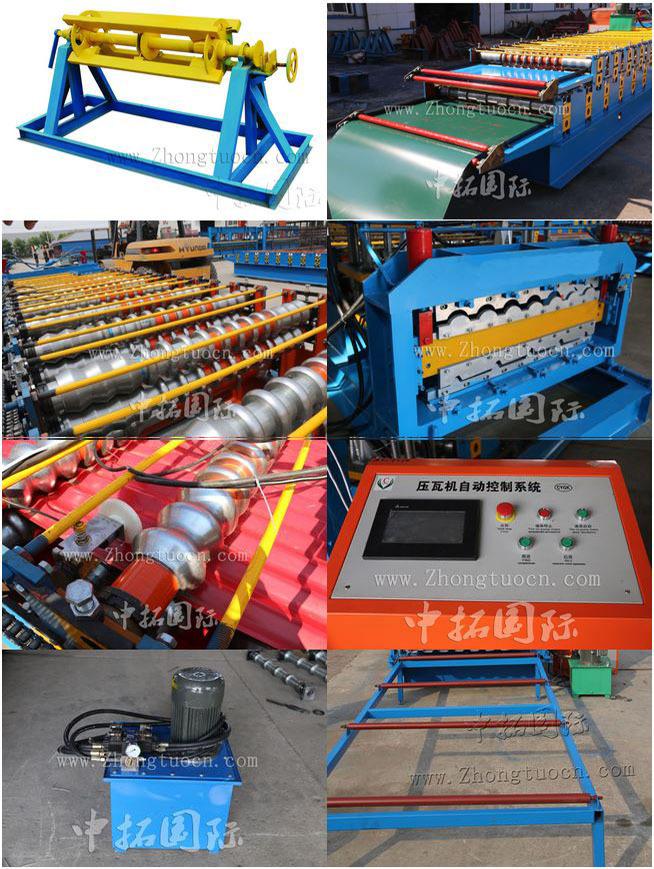

Components of Two layer metal sheet roofing making machine
No. Name Unit Qty 1 Manual decoiler set 1 2 Main forming machine set 1 3 PLC control system Set 1 4 Hydraulic pump station set 1 5 post cut set 1 6 electric motor set 1 7 output table set 1
Two layer metal sheet roofing making machine production process
Uncoiling→Feeding material into machine→Roll forming→Measuring length→ Auto cutting→Products receiving roofing double
parameters of double layer metal sheet roofing making machine
NO. | Items |
| parameters | Remark |
1 | Suitable Material | type | GI/PPGI/AL |
|
|
| Width | 1000mm | Custom |
|
| Thickness | 0.3-1.0mm |
|
| Product specifications | lengh | any lengh |
|
|
| lengh tolerance | ± 2mm
|
|
3 | Working Speed | 8m-25m/min | Standard machine | |
4 | Control System | PLC | Custom | |
5 | Total Power | 5.5-11 KW |
| |
6 | Total Weight | About 5-7.5 T | Up to final design |

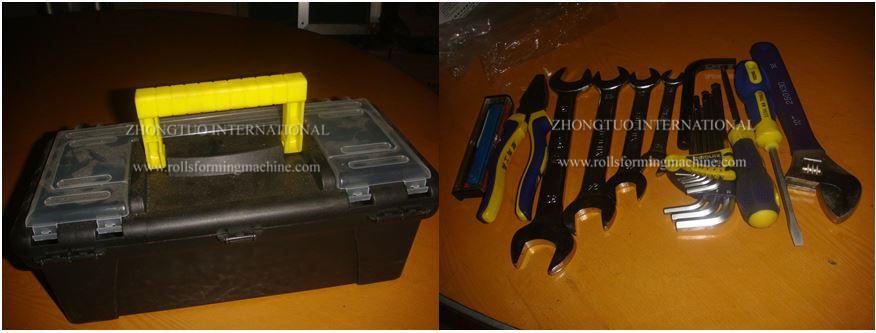

Spare parts ( for free)
1. Easy damaged parts: conk 2 pcs, fuse-link 4 pcs;
2. Rubber mat 1 pcs;
3. Bolt spanner 1 pcs
1. Installation and training of machine manufacturer:
a.If buyers visit our factory and check the machine, we will teach you how to install and use the roll forming machine for sale , and also train your workers/technician face to face.
b.Without visiting, we will send you user manual and video to teach you to install and operate.
c.If buyer needs our technician to go to your local factory, please arrange board and lodging and other necessary things.
2. After Service of roll forming machine for sale
a.One year guarantee for whole roll forming machine for sale.
b.24 hours technical support by email or calling
c.If there is any problem found of steel roof sheet roll forming machinery, we will repair roll forming machine for sale for free in one year.

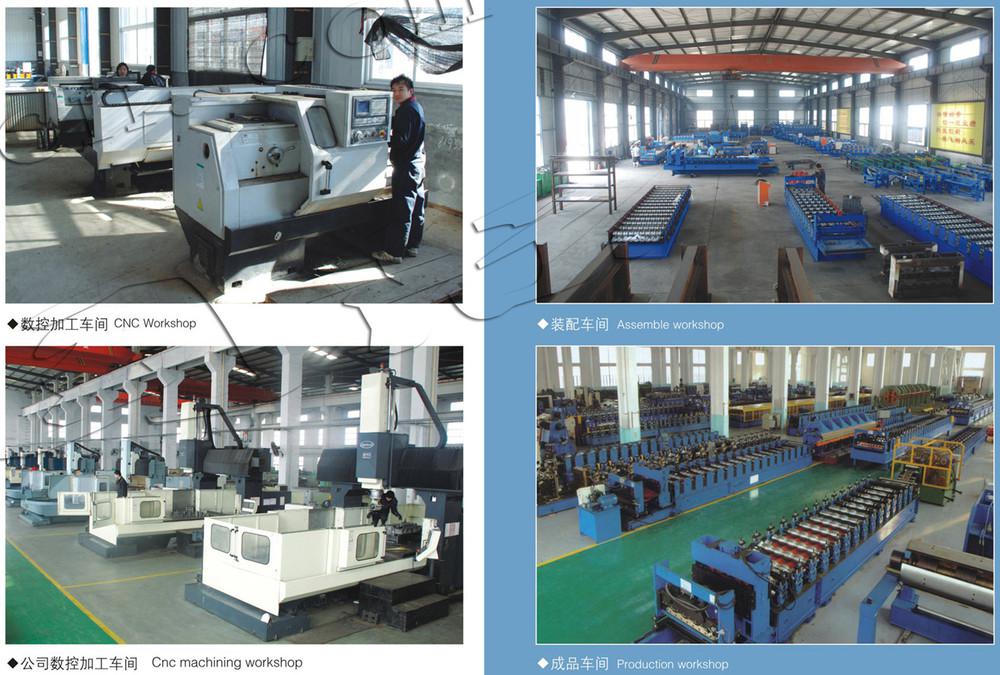

Cangzhou ZHONGTUO International Trade Co., Ltd is a professional manufacturer and exporterwhich has its own factory and also cooperate with several production factories and associated nterprises, concerning with the design, development and production of cold roll forming machines,material of building. It is located in northwest of CangZhou, as a long history of cold roll formingmachine production base. All products comply with international quality standards and are greatlyappreciated in variety of different markets throughout the world, such as Asia, Africa, Europe,South America, and Australia and so on.
1. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
2. Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.
3. How to visit your company?
a.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour), then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours), then we can pick up you.
4. What can you do if the machine broken?
Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freell,but you need pay the express cost yourself.if after warranty period,we can through negotiationfor to solve the problems,and we supply the technical support for the whole life of the equipment.
5. Can you be responsible for transport?
Yes,please tell me the destination port or address.we have rich experience in transport.
6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machines.
7. Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing How to make machines much more automatic, accurate and high quality. We can make sure thatour machine could use more than 20 years without any problem. We can provide 2 years free qualityassurance.
8. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.
