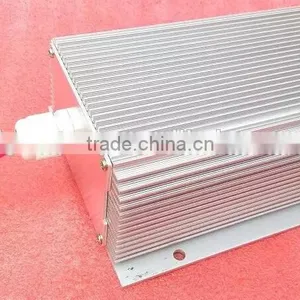

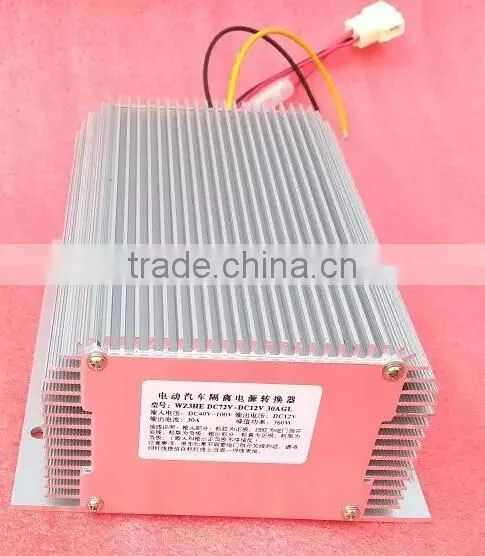

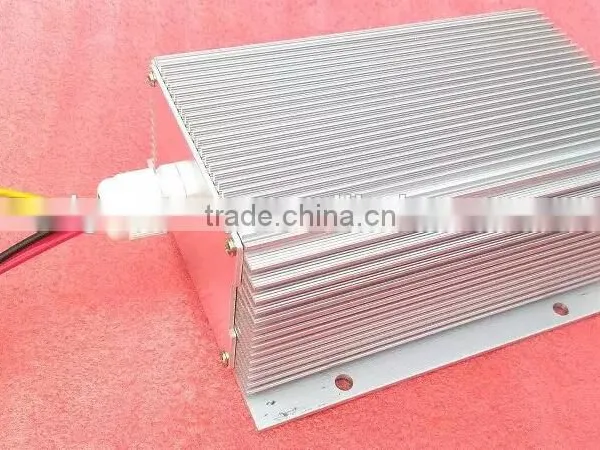

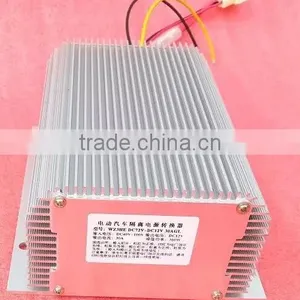

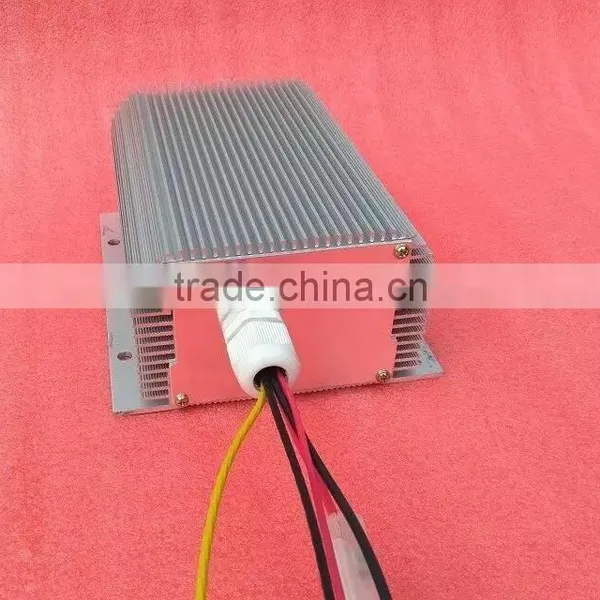

40v-90v to 12v 30a isolated dc-dc converter 360w

 series isolation type DC converter is designed for headlights and audio system electricity power supply on electric vehicles ,electric froklifts,electric golf vehicles and electric touring vehicles etc.

Features

 Adopt advanced power transformation technology,completely isolated power input and power output;

 Built-in relay,to avoid the arc ignition when key startup and shutdown;

 Perfect protection function:input under-voltage protection,output over-current protection,output short circuit protection,over temperature protection;

Small size,high efficiency,long service life,easy installation,high reliability,stable output etc.To ensure use in any vehicle and severe environment.

technical parameter
Input voltage: 40V-90V DC
Output voltage: 12.5V DC + 0.3V
Output current: 30A (360W)
The ripple coefficient is less than 1%.
Full load efficiency: 90%
Output short circuit protection: have
Input counter protection: have
Operating temperature: -20 degrees C - +50
Storage temperature: -40 degrees C - +55
Weight: 1.45KG
Over heat protection: the internal temperature exceeds 90,
Automatic recovery work at less than 90.
Electronic switch: built-in, direct with key switch control (optional)
Anti vibration level: in line with the SAEJ1378 requirements
Waterproof grade: IP66
Size: 170*140*74MM
