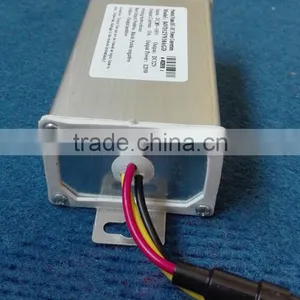

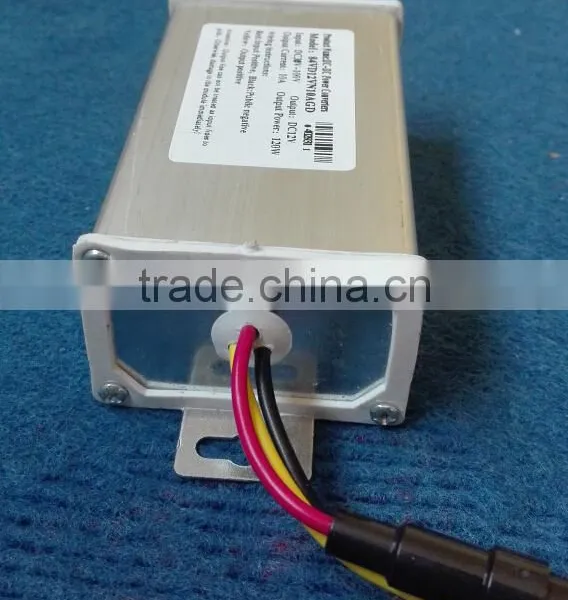

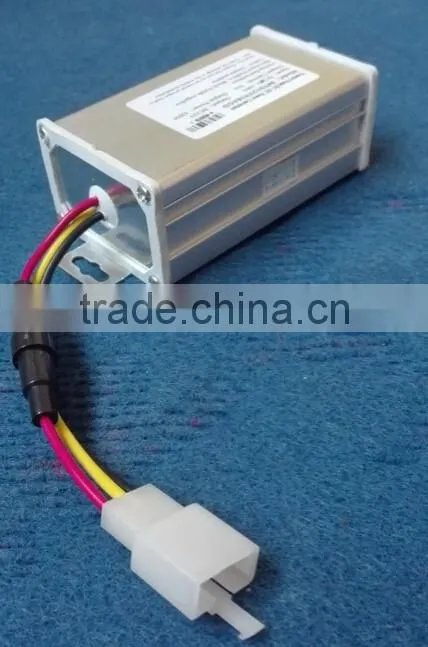

Help Center60v to 36v 5a Dc-dc Buck Power Converter 240w
Related Products
-
Wide Input Volt 40V-120V to 12v ,20a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece -
70-200v to 12v ,10a Waterproof Isolated Dc-dc Power ConverterNegotiableMOQ: 1 Piece
-
36v/48v/60v/72v/84v/90v to 12v 10a DC-DC Step Down Power ConverterNegotiableMOQ: 1 Piece
-
84V to 12v ,10a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece
-
60v to 24v 600w Isolated Dc- dc Converter 600WNegotiableMOQ: 1 Piece
Unisolated DC-DC Converter
No isolation DC-DC Converter
Converter
Converters
Isolated dc to dc converter
Isolation converter
Car converter
Electric vehicle converter
the DC-DC converter series uses high-frequency inverter technology, its size, weight, power consumption, efficiency, performance and reliability are better than other similar products,
Wide input voltage range (55 ~ 100V) to meet the different voltage levels of electric vehicles.
PERFORMANCE:
he Model DC-DC converter series uses high-frequency inverter technology, its size, weight, power consumption, efficiency, performance and reliability are better than other similar products,
Wide input voltage range (55 ~ 100V) to meet the different voltage levels of electric vehicles.
PERFORMANCE:
High inverter frequency, fast response, small size, light weight, low energy consumption, high efficiency, materials, energy saving;
A wide range of anti-voltage fluctuation, strong ability, high control precision;
It has a whole over temperature, output reverse polarity, output overcurrent and short circuit protection, safe and reliable;
Low temperature, high temperature, humidity, sour, dust, vibration environment adaptability strong, stable and reliable;
The modular structure of the circuit design, installation and maintenance quick and easy.
Features:
1. Short circuit protection: When the output short circuit converter stops working, excluded automatically return to work after a short circuit;
2. The over-current protection: When the output current reaches the current value converter protection to stop working;
High inverter frequency, fast response, small size, light weight, low energy consumption, high efficiency, materials, energy saving;
A wide range of anti-voltage fluctuation, strong ability, high control precision;
It has a whole over temperature, output reverse polarity, output overcurrent and short circuit protection, safe and reliable;
Low temperature, high temperature, humidity, sour, dust, vibration environment adaptability strong, stable and reliable;
The modular structure of the circuit design, installation and maintenance quick and easy.
Features:
1. Short circuit protection: When the output short circuit converter stops working, excluded automatically return to work after a short circuit;
2. The over-current protection: When the output current reaches the current value converter protection to stop working;
echnical Parameters:
1. Input voltage: 50 ~ 75V
2. Input Current: <10A (full load)
3. Working Frequency: 250KHz
4. Output voltage: 36.0 ± 0.2V
5. Output current: 0 ~ 5A
6. Maximum power: 240W
7. Efficiency: 90% typ.
8. Voltage stability: <1%
9. Load stability: <1%
10. Insulation resistance: between input and output> 50MΩ
Between input and enclosure> 50MΩ
Between the output and the shell> 50MΩ
11. Weight: 0.3Kg
12. Start Delay: less than 2 seconds
