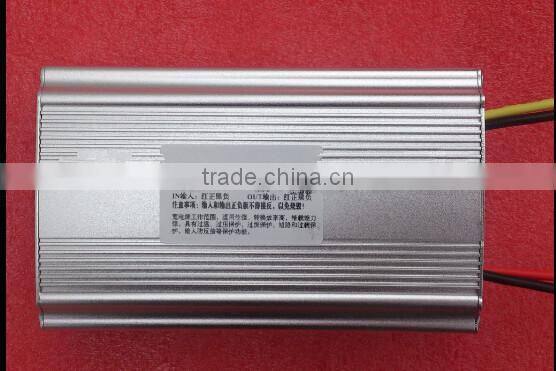

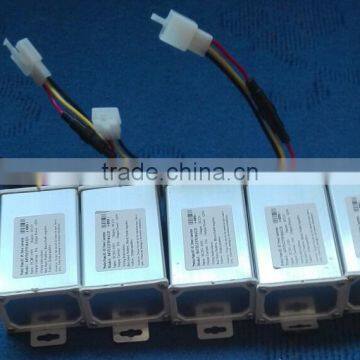

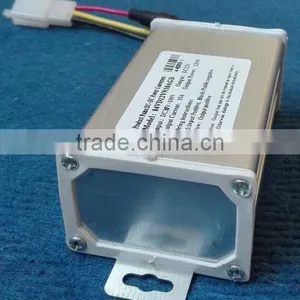

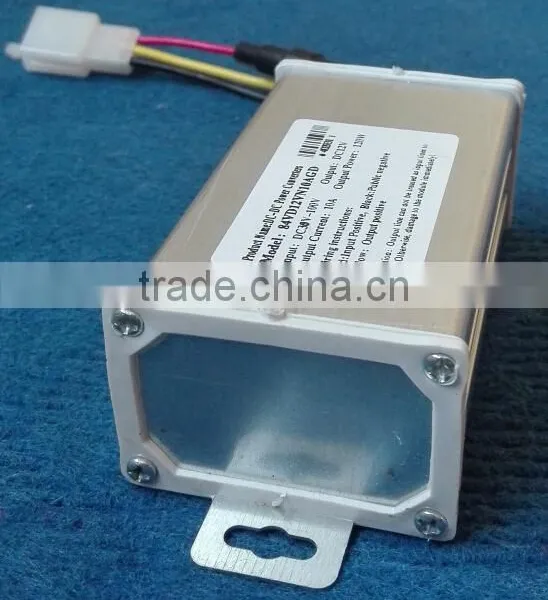

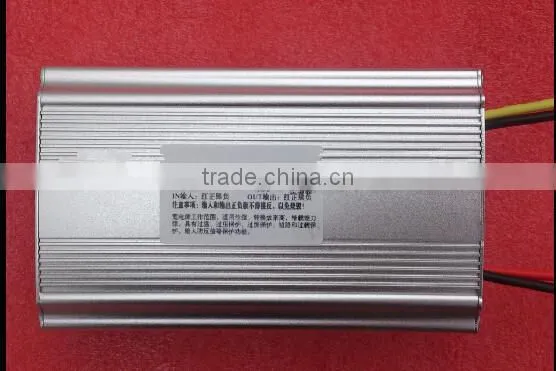

Help Center36v/48v/60v/72v/84v/90v to 12v 10a DC-DC Step Down Power Converter
Related Products
-
84V to 12v ,10a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece -
60v to 24v 600w Isolated Dc- dc Converter 600WNegotiableMOQ: 1 Piece
-
240w 72v to 48v 5a Dc-dc Buck Power ConverterNegotiableMOQ: 1 Piece
-
24v to 13.8v,12a Waterproof Isolated Dc-dc Converter Power Supply 150wNegotiableMOQ: 1 Piece
-
600 Waterproof Isolated 108v to 12v,50A dc dc Voltage ConverterNegotiableMOQ: 1 Piece
Unisolated DC-DC Converter
No isolation DC-DC Converter
Converter
Converters
Isolated dc to dc converter
Isolation converter
Car converter
Electric vehicle converter
The high frequency inverter technology is used in the series of the DC-DC converter series, the performance and reliability of its volume, weight, energy consumption, efficiency, etc., are superior to other similar products,
Wide input voltage range (30~60V) can meet the different voltage level of electric vehicles.
Performance:
The inverter has high frequency, fast response, small volume, light weight, low energy consumption, high efficiency, energy saving and energy saving;
Wide range of resistance to voltage fluctuations, strong ability, high control accuracy;
With the whole machine over temperature, output reverse, output current and short circuit protection function, safe and reliable use;
On the low temperature, high temperature, moisture, acid, dust, vibration and strong environmental adaptability, stable and reliable;
Modular design of circuit structure, easy installation and maintenance.
Product features:
1 short circuit protection: when the output short circuit when the converter stops working, the automatic recovery after the short circuit;
2 over current protection: when the output current reaches the current value, the converter stops working;
3 overvoltage protection: when the output voltage is higher than the rated value, the converter stops working.
Technical parameters:
1 input voltage: 30~100V
2 input current: 10A (full load)
3 working frequency: 250KHz
4 output voltage: 12 + 0.2V
5 output current: 0~10A
6 maximum power: 120W
7 efficiency: typical 90%
8 voltage stability: < 1%
9 load stability: < 1%
10 insulation resistance: between input and output > 50M
Between input and shell > 50M
Between output and shell > 50M
11 weight: 0.25Kg
12 start delay: 2 seconds
13 working temperature: -30 ~+55
14 size: 116*50*35MM

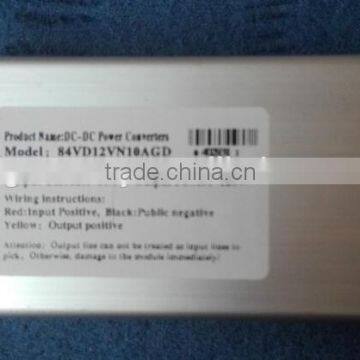

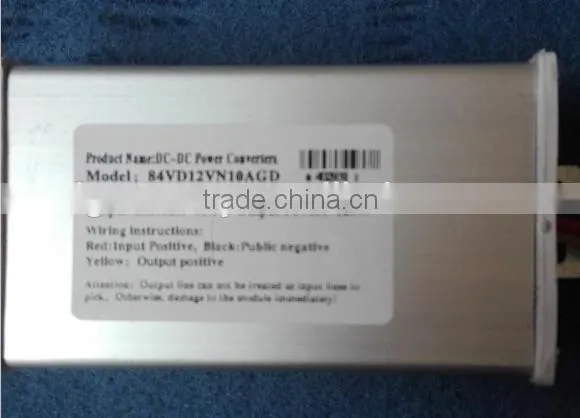

15 wiring instructions:
Input part: red as the positive, black as the anode;
Output section: coarse yellow (blue) for the positive, black as the anode
