70-200v to 12v ,10a Waterproof Isolated Dc-dc Power Converter

Dezhou Greatway Import And Export Co., Ltd.
70-200v to 12v ,10a Waterproof Isolated Dc-dc Power Converter thumbnail-1
70-200v to 12v ,10a Waterproof Isolated Dc-dc Power Converter thumbnail-2
70-200v to 12v ,10a Waterproof Isolated Dc-dc Power Converter photo-1

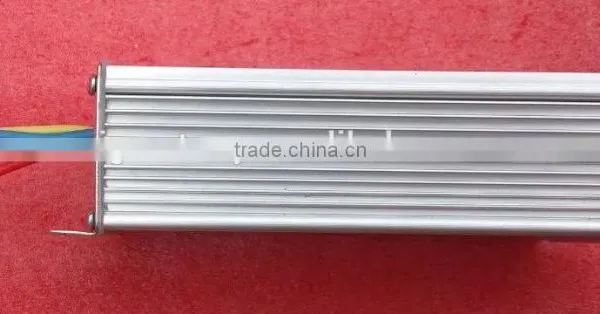

70-200v to 12v ,10a Waterproof Isolated Dc-dc Power Converter photo-2
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
gw
Model Number:
HE12012-10
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name gw
Model Number HE12012-10
Output Power Other, 120w
Output Type Other, single and dual
Size 125*78*40mm
Weight 0.5kg
Input Voltage 70V-200V
Output Voltage 12V
Type DC/DC Converters
Output Current 10A



Unisolated DC-DC Converter

No isolation DC-DC Converter

Converter

Converters

Isolated dc to dc converter

Isolation converter

Car converter

Electric vehicle converter







70-200v to 12v ,10a waterproof isolated dc-dc power converter70-200v to 12v ,10a waterproof isolated dc-dc power converter





Product Description





The  DC-DC converter series uses high-frequency inverter technology, its size, weight, power consumption, efficiency, performance and reliability are better than other similar products, a wide input voltage range (70 ~ 200V) to meet the different voltages level electric vehicle.



PERFORMANCE:

   1. Fast response, small size, light weight, low energy consumption, high efficiency, materials, energy saving;

    2. A wide range of anti-voltage fluctuation, strong ability, high control precision;

   3. It has a whole over temperature, output reverse polarity, output overcurrent and short circuit protection, safe and reliable;

   4. Low temperature, high temperature, humidity, sour, dust, vibration environment adaptability strong, stable and reliable;

   5. The modular structure of the circuit design, installation and maintenance quick and easy.



  Features:

1. High reliability design, comprehensive protection measures, to achieve maximum stability;

2. Wide input voltage ,

3. Suitable for  the design of parallel operation , some of the  DC-DC converter are  in parallel, easily compose high-power DC -DC power supply



Technical Parameters

Input voltage: DC 70V-200V

Output voltage: DC 12V

Output Current: 10A

Ripple factor: ≤1%

Full load efficiency: ≥88%

Output short circuit protection:

Enter the reverse protection:

Working temperature: -20 ℃ - + 40 ℃

Storage temperature: -40 ℃ - + 55 ℃

Weight: 0.45KG

Overheat protection:

it will shut off the output when the internal temperature exceeds 90 ℃,

 If less than 90 ℃ ,it automatically restore to work.

Vibration: SAEJ1378 requirements

Waterproof grade: IP66

Size: 125 * 78 * 40MM


Twiring instructions:

black line is  negative
Output:  yellow line is  positive,  blue line  is negative
