DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter

DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter thumbnail-1
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter thumbnail-2
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter thumbnail-3
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter thumbnail-4
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter thumbnail-5
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter photo-1
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter photo-2
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter photo-3
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter photo-4
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation Transmitter photo-5
Negotiable MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
SUNYUANSZ
Place of Origin:
China
Model Number:
DIN3 ISOEM U/A-P-O
Contact Supplier Request Quote Chat Now
Shenzhen Sunyuan Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
2 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name SUNYUANSZ
Place of Origin China
Model Number DIN3 ISOEM U/A-P-O
Type Other, Isolation Amplifier
Package 35mm DIN Rail

Magneto-electric Isolation Transmitter/Converter

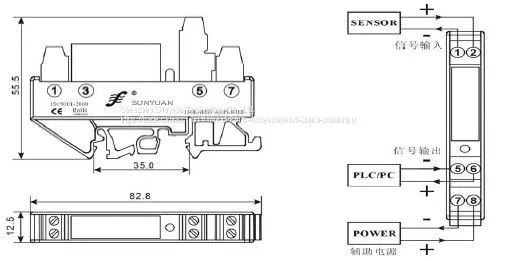

DIN Rail-Mounted Super Slim: 82x45x12.5mm

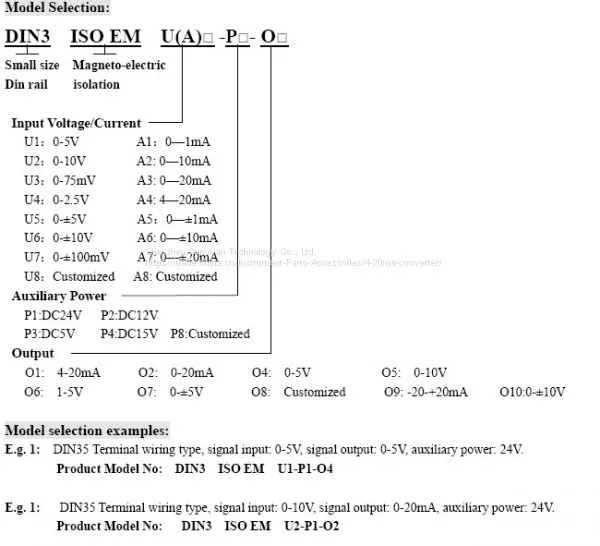

DIN3 ISO EM U(A)-P-O



General characteristics:
>> Efficiency Grade:0.1/0.2
>> High precision, error and nonlinearity >> 0-5V/0-10V/1-5V/0-+/-5V/0-+/-10V/0-10mA/0-20mA/4-20mA international standard current signal input and output
>> Three port isolation:Input/output/power supply isolation voltage can reach 3000VDC.
>> Temperature Range:-25~70 deg.C
>> Standard DIN Rail Mounting,super slim (12.5mm),low cost.


Applications:
>> DC current/voltage signal isolated/transfer/amplifier
>> Equipment and sensor signal acquisition
>> 4-20mA signal isolation and transfer
>> Ground-loop elimination
>> Electric power,medical instrument isolated safe bar.
>> No distortion in long distance signal


Product Tags: 0-5v to 0-10v , 4-20ma converter , 4-20ma to 0-5v
