2-wire Passive I/V Conversion Isolation Transmitter
2-wire Passive 4-20mA to Voltage Signal Isolation Converter
ISO 4-20MA-O Series
2-wire 4-20mA to Voltage Transmitter Features:
>> High efficient signal loop stealing technology, external power supply is not required.
>> 2-wire 4-20mA standard analog signal input,
0-2.5V/0-3.3V/0-5V/1-5V, etc standard voltage signal output.
>> Extra low input impedance, meet the requirements that when input is 20mA the voltage drop ≤9V.
>> Accuracy grade: 0.1, 0.2, 0.5
>> High linearity in full measuring range, non-linearity error grade>> 3000VDC isolation between input and output.
>> Industrial grade temperature range: -25 ~ +70 ºC
>>Small size standard SIP 7Pin, UL94V-0 flame-retardant package.
2-wire 4-20mA to Voltage Transmitter Applications:
>>Sensor 4-20mA signal acquisition and conversion.
>>Industrial site signal acquisition and long-distance transmission.
>> Analog signal conversion and data acquisition.
>>Sensors' or meters' Signal receiving and transmission.
>>PLC, DCS analog signal acquisition and conversion.
>>Power control, medical equipment monitoring.
>> 4-20mA current signal to voltage signal conversion: 1-IN1-OUT, 2-IN 2-OUT, 3-IN 3-OUT.

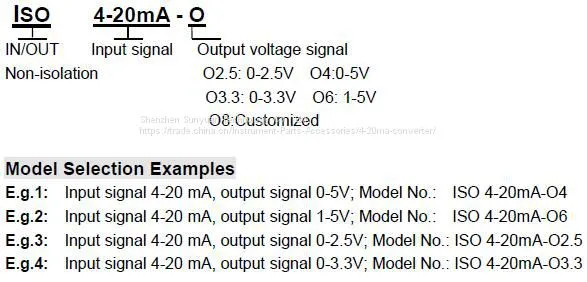

2-wire 4-20mA to Voltage Transmitter Model Selection:

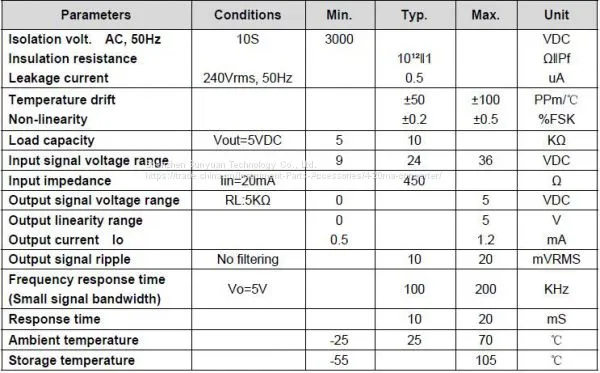

2-wire 4-20mA to Voltage Transmitter General Parameters:
Note: Please enquire us for details, thank you!
