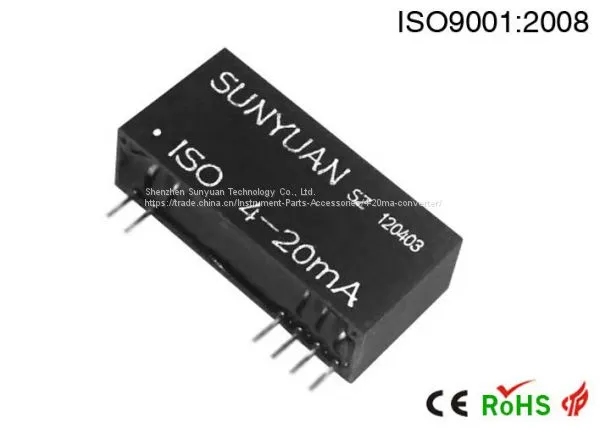

Help CenterTwo-Wire 4 20mA Loop Powered Converter With 3kv Isolation
Related Products
-
2-Wire Passive 4-20mA to Voltage Signal Converter 3KV IsolationNegotiableMOQ: 2 Pieces -
DC Current Voltage Isolation Signal Converter ICNegotiableMOQ: 2 Pieces
-
DIN Rail 0-5V/0-10V/4-20mA/0-20mA Current Voltage (I/V, I/I, V/I, V/V) Signal Isolation TransmitterNegotiableMOQ: 2 Pieces
-
J/K/T/E/R/S/B Type Thermocouple Signal to RS232 or RS485 ConverterNegotiableMOQ: 2 Pieces
-
Digital RS485/232 to Analog 4-20mA DA ConverterNegotiableMOQ: 2 Pieces
4-20mA Converter Featrures:
-Low cost, small size, standard SIP12 package
-Electromagnetic Isolation
-Signal input/output, 3000VDC isolated voltage
-No external instrument needed for power supply
-4-20mA high accuracy of current input/output(distortion-Industrial temperature(-45~+85 centigrade)
-High linearity(Nonlinearity-Small signal bandwidth: 50Hz
-Weld to PCB directly, SIP12PIN Package
4-20mA Converter Applications:
-Analog signal data acquisition and isolation
-Isolated 4-20mA signal transmission
-Industrial process signal isolation
-Ground-loop elimination
-No distortion in long distance signal transmission
-Instrument signal acquisition
-Electric supervision and medical application
-Isolated safe bar
-Biomedical measurements.

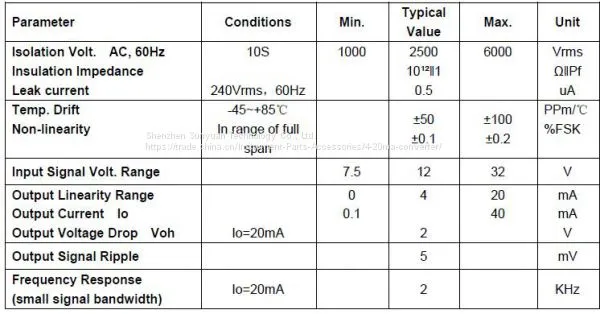

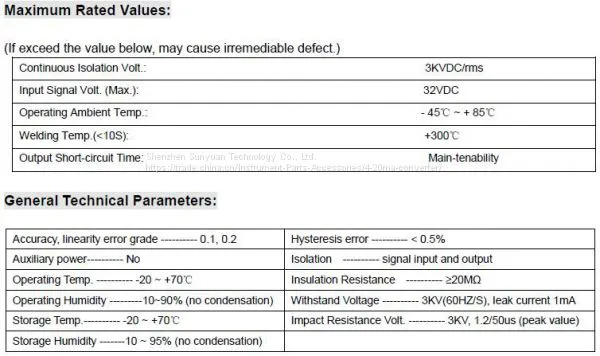

4-20mA Converter Technical Parameters:

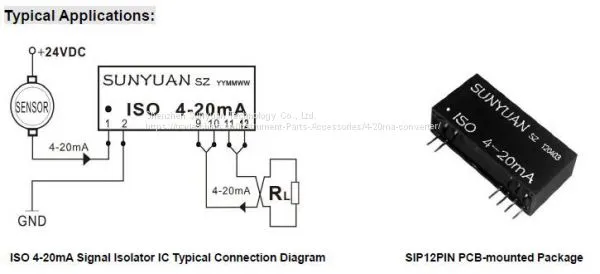

4-20mA Converter Wiring Applications:
