Help CenterJuanyong Brand Small Electric Water Pump 12v dc Mini Water Pump for Car Wash
Related Products
-
JUANYONG Chemical Centrifugal Self Priming Water Pump for Submersible Pump Made in ChinaUS$ 42 - 52MOQ: 10 Sets -
3 Inch Self Priming Drag Water Pumps With Aluminum Haousing for Farm IrrigationUS$ 37 - 42MOQ: 10 Sets
-
JUANYONG Brand Solar 12 Volt Water Pump Agricultural Irrigation Made in ChinaUS$ 23 - 33MOQ: 10 Sets
-
Chongqing JUANYONG Brand 1 Inch Gasoline Water Pump Usage in Moter HomeUS$ 12 - 22MOQ: 10 Sets
-
Chongqing JUANYONG Brand 4 Inch Diesel Water Pump High Flow Water Pump Price of Water Pump SetUS$ 40 - 50MOQ: 10 Sets
Company information
Tianzhiyuan Machinery Company has been in water pumps industry close to 7 years. Tianzhiyuan provide self-priming water pumps for a wide range of water supply applications- agricultural irrigation, orchard cultivation, drinking water, forestry and firework. Put our advance water pumps and innovation to the world. Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. Tianzhiyuan water pumps have been sold to more than 40 countries all over the world.
Tianzhiyuan is actively expanding its existing business and assessing new opportunities throughout China and the globe. Through various functions, we are working to provide the right products and services to customers at home and abroad. Now we are cooperating with LONCIN, RATO, Dajing, Lianlong etc. Tianzhiyuan develop it services according to its customer’s requirement.
Product description
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of slef priming water pump is designed for car wash with 152F engine, which can work efficiently and stably.
product parameter
ITEM |
WP40A |
Outlet Size(mm) |
40 |
Inlet Size(mm) |
40 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
12 |
Lift H.max(m) |
15 |
Suction(m) |
7 |
Engine Model |
152F |

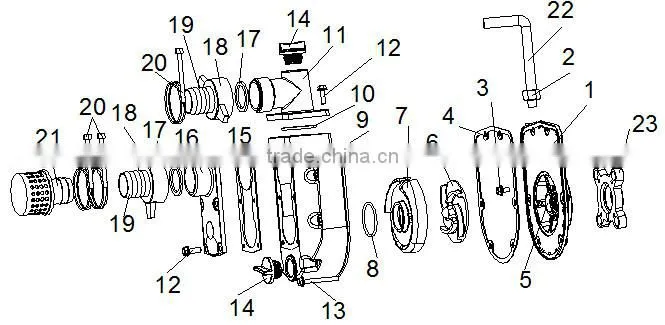

Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
nut M14 |
1 |
3 |
Bolt M6×25 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M6 |
8 |
13 |
Bolt M6×55 |
6 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
Filter cover |
1 |
22 |
The handle |
1 |
23 |
Connecting flange |
1 |

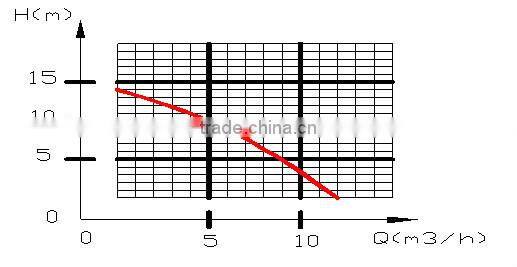

Performance curve

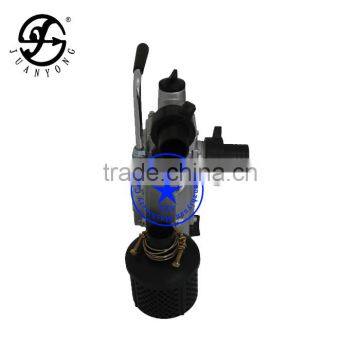

Image of water pump
Quality Control
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Product certification
