Tianzhiyuan Machinery Company has been in water pumps industry close to 7 years. Tianzhiyuan provide self-priming water pumps for a wide range of water supply applications- agricultural irrigation, orchard cultivation, drinking water, forestry and firework. Put our advance water pumps and innovation to the world. Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. Tianzhiyuan water pumps have been sold to more than 40 countries all over the world.
Introduction of water pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of self priming water pump is designed for fire with 190F engine, which can work efficiently and stably.
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Parameter
ITEM |
WP100 |
Outlet Size(mm) |
100 |
Inlet Size(mm) |
100 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
90 |
Lift H.max(m) |
25 |
Suction(m) |
7 |
Engine Model |
190F |

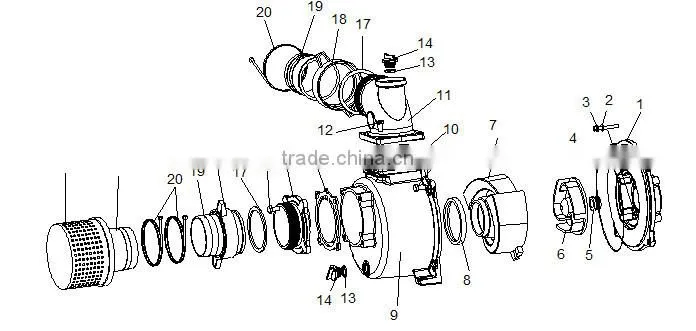

Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
5 |
3 |
Bolt M8×45 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M10×30 |
12 |
13 |
Rubber plug gasket |
2 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
The filtering orifices |
1 |
22 |
Filter cover |
1 |

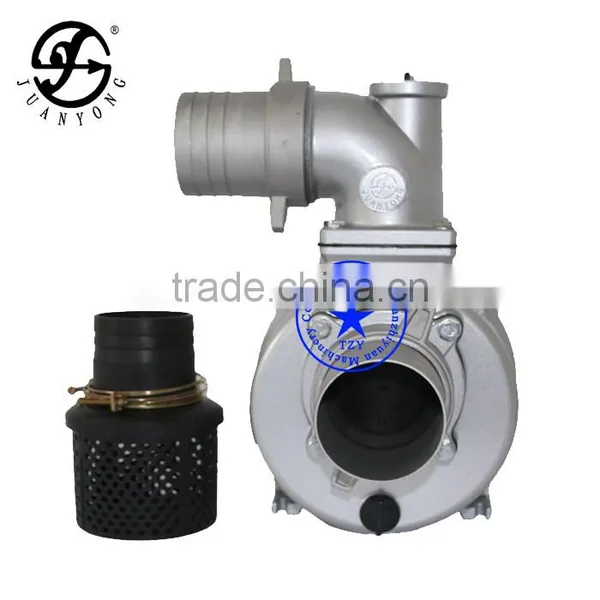

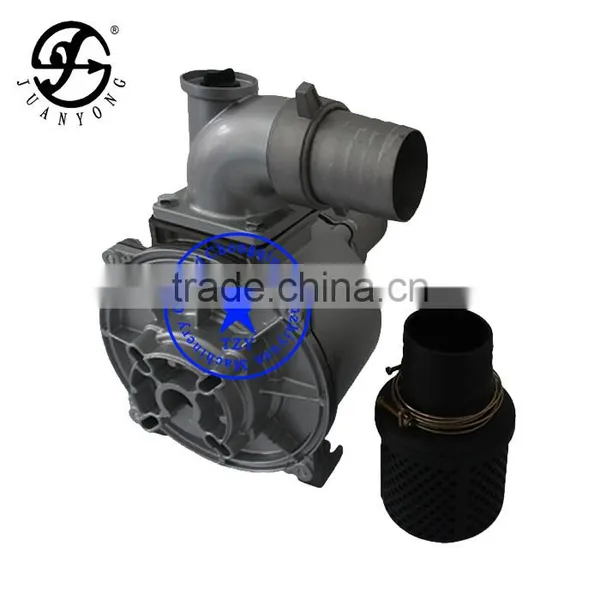

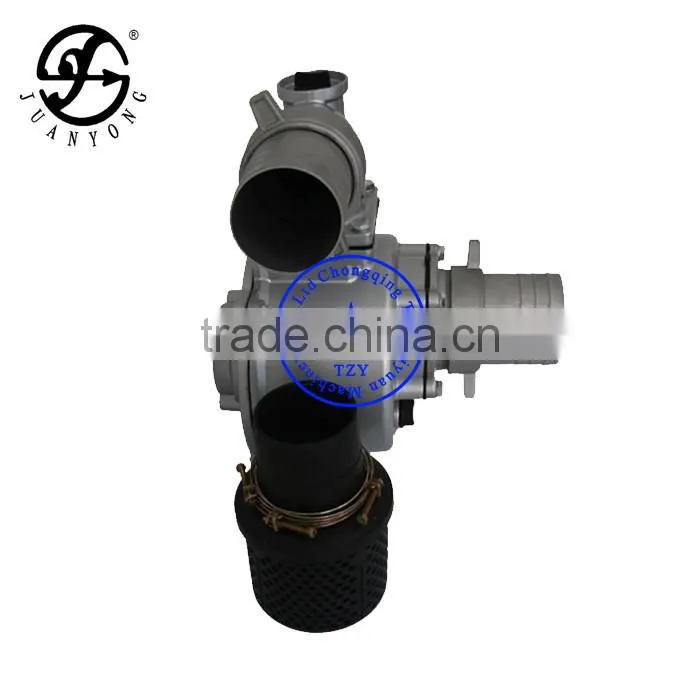

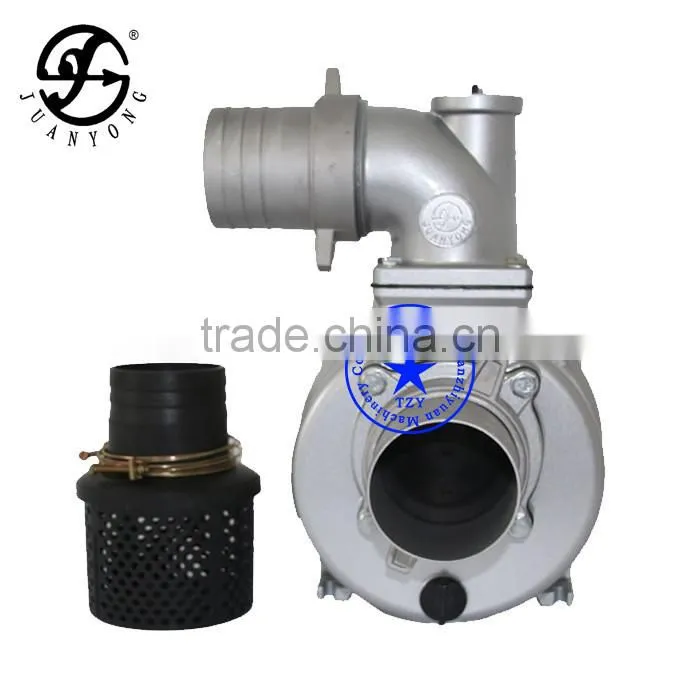

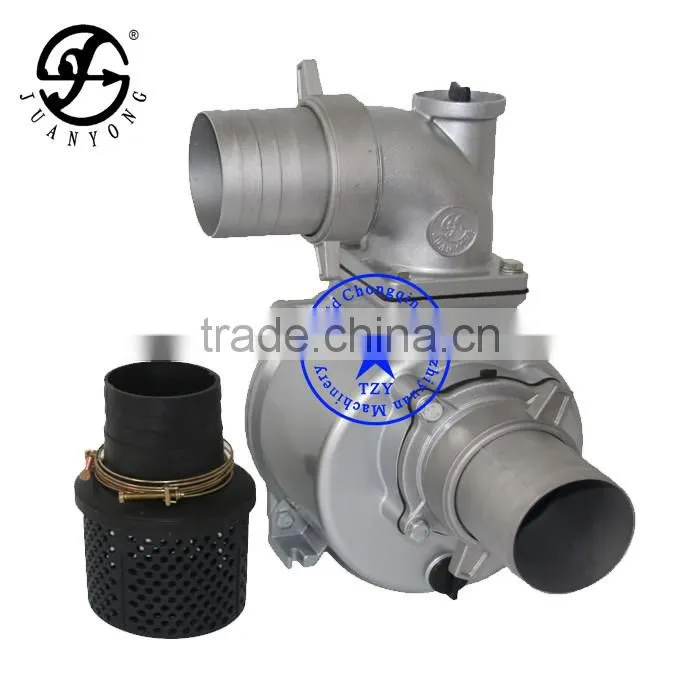

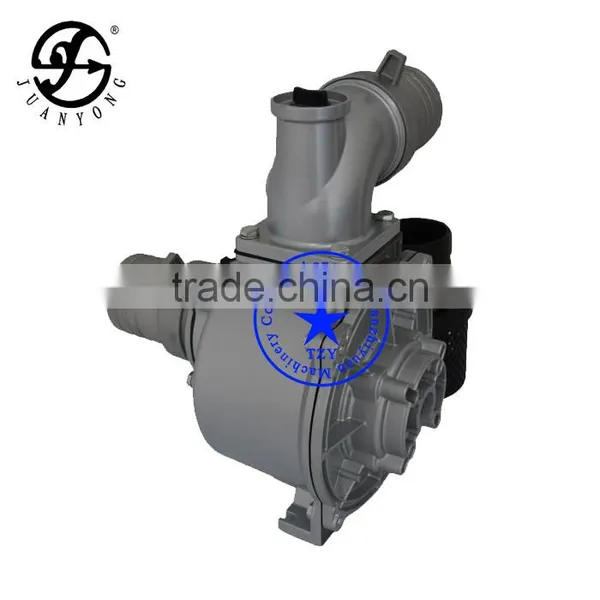

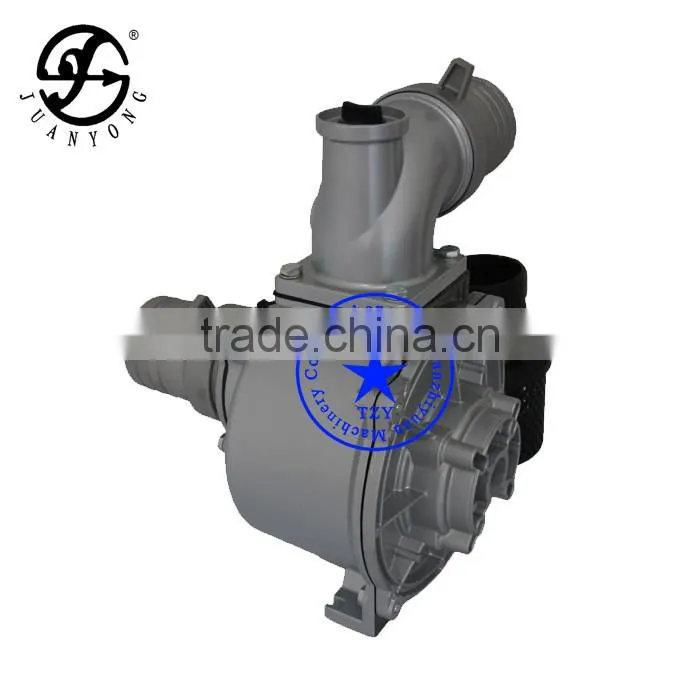

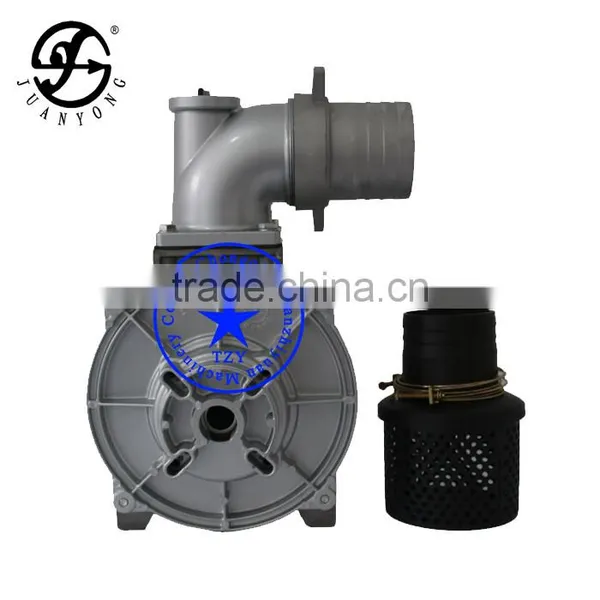

Product photos
