Help CenterJUANYONG Brand Solar 12 Volt Water Pump Agricultural Irrigation Made in China
Related Products
-
Chongqing JUANYONG Brand 1 Inch Gasoline Water Pump Usage in Moter HomeUS$ 12 - 22MOQ: 10 Sets -
Chongqing JUANYONG Brand 4 Inch Diesel Water Pump High Flow Water Pump Price of Water Pump SetUS$ 40 - 50MOQ: 10 Sets
-
JUANYONG Brand Gasoline Water Pump Electric Water Pump Motor Price Made in ChinaUS$ 24 - 34MOQ: 10 Sets
-
KINGWAY 3 Inch Gasoline Engine Pump, With Chemical Use Gasoline Water Pump for Garden Line Solar ProductUS$ 50 - 60MOQ: 10 Sets
-
12v Mini Submersible Self Priming Water Pump Gasoline Pump PriceUS$ 14 - 24MOQ: 10 Sets
Company information
Tianzhiyuan Machinery Company has been in water pumps industry close to 7 years. Tianzhiyuan provide self-priming water pumps for a wide range of water supply applications- agricultural irrigation, orchard cultivation, drinking water, forestry and firework. Put our advance water pumps and innovation to the world. Tianzhiyuan Machinery Company within concentrated operation of self-priming water pump, include farm irrigation high lift self priming pump, water pumps with 2-6 inches, self priming clear water pump, self priming dirty pumps, high lift water pump, chemical pump/ agriculture irrigation water pump, sewage water pump and related machine components. Tianzhiyuan water pumps have been sold to more than 40 countries all over the world.
Tianzhiyuan is actively expanding its existing business and assessing new opportunities throughout China and the globe. Through various functions, we are working to provide the right products and services to customers at home and abroad. Now we are cooperating with LONCIN, RATO, Dajing, Lianlong etc. Tianzhiyuan develop it services according to its customer’s requirement.
Introduction of water pump
We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of slef primingwater pump is designed for irrigation, which can work efficiently and stably.

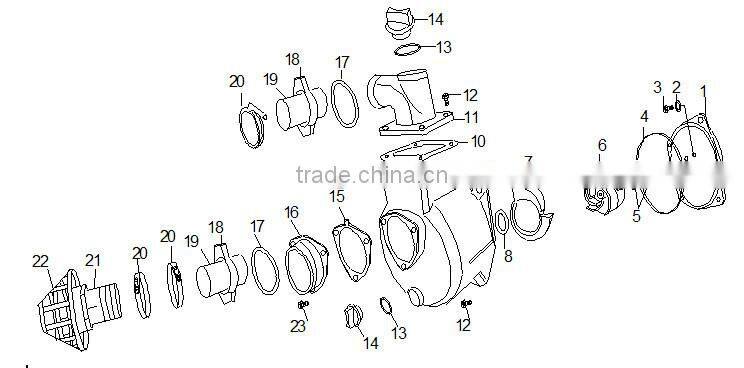

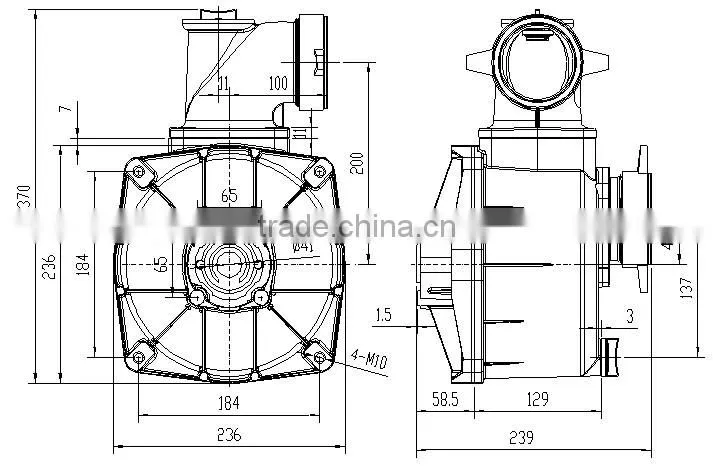

Product description
Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
Aluminum flat washer φ8×φ16×1.5 |
4 |
3 |
Bolt M8×65 GB5787 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Outlet gasket |
1 |
11 |
The water outlet joint |
1 |
12 |
Bolt M10 |
11 |
13 |
Rubber plug gasket |
2 |
14 |
Threaded plug pump |
2 |
15 |
Inlet sealing gasket |
1 |
16 |
Inlet joint |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Pipe joint connecting nut |
2 |
19 |
Pipe joint |
2 |
20 |
Clamp |
3 |
21 |
The filtering orifices |
1 |
22 |
Filter cover |
1 |

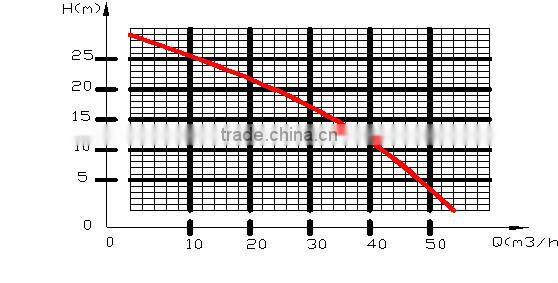

Performance curve

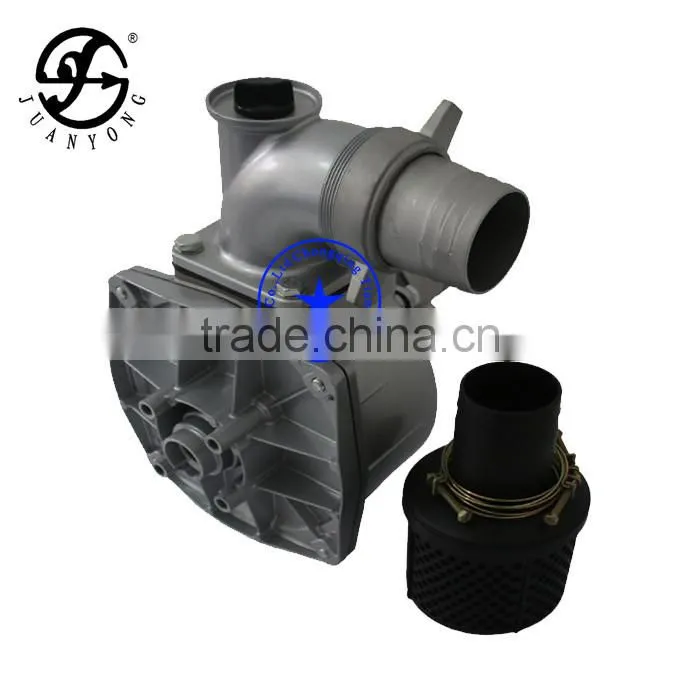

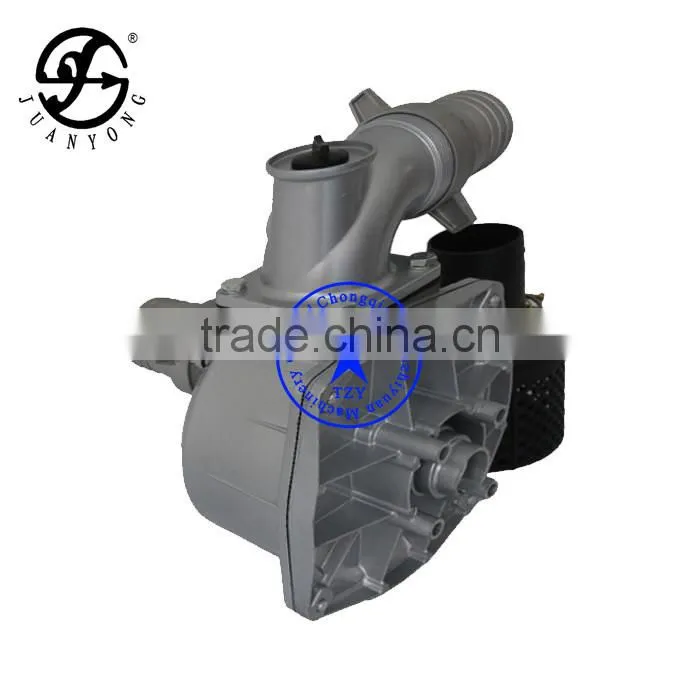

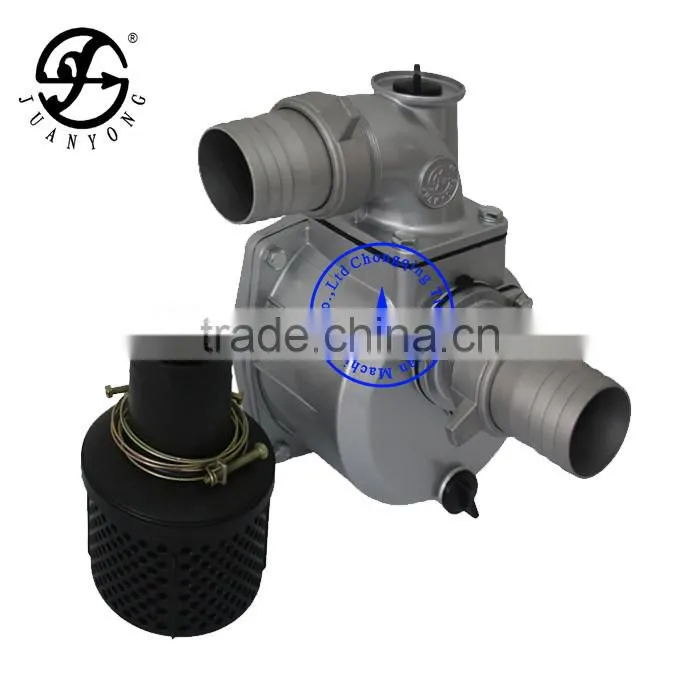

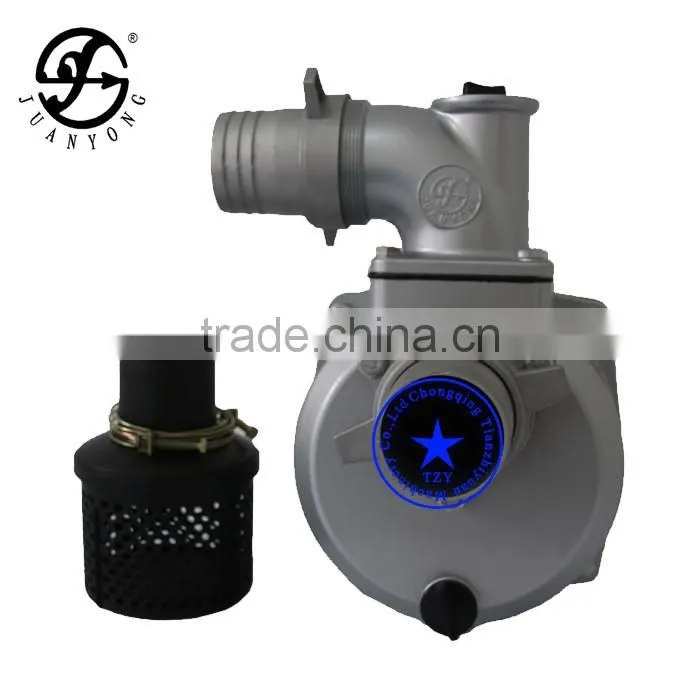

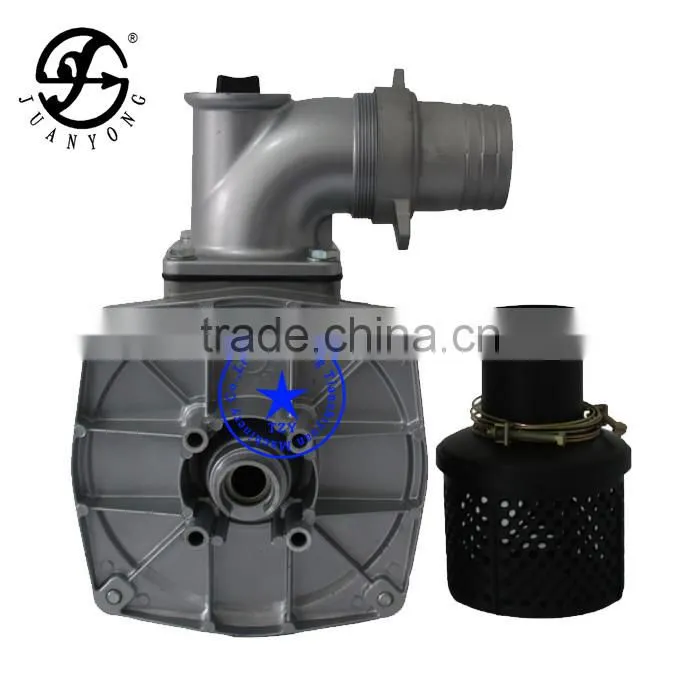

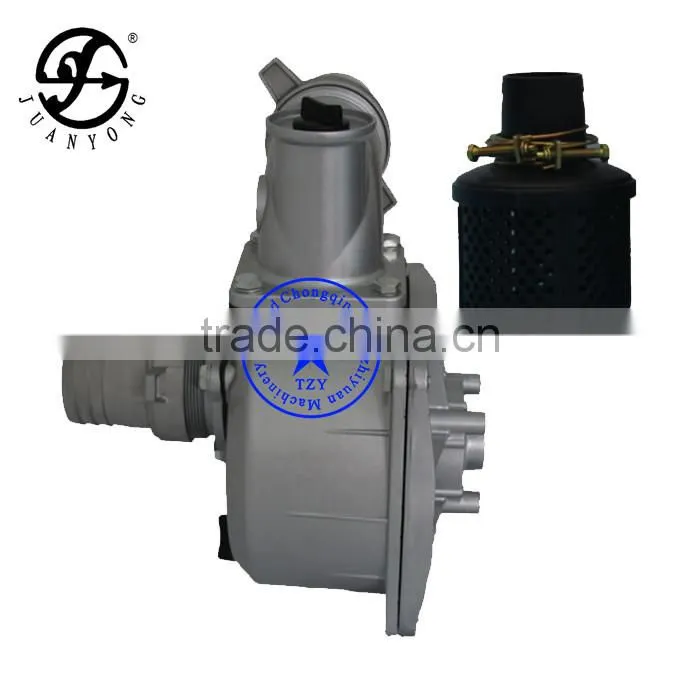

Product photos
