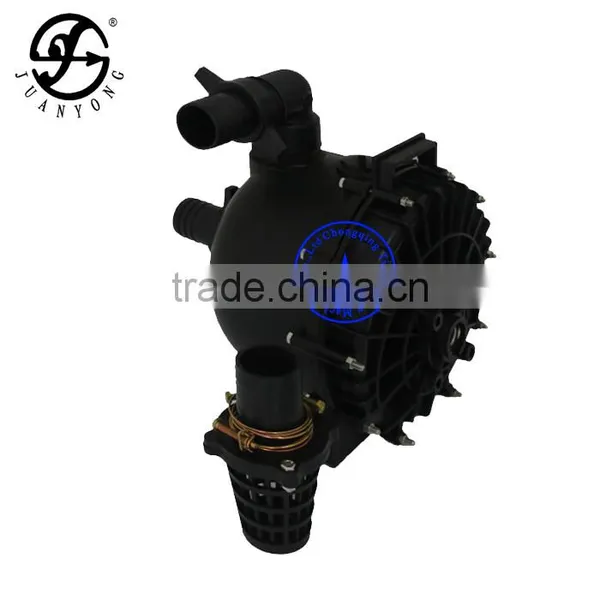

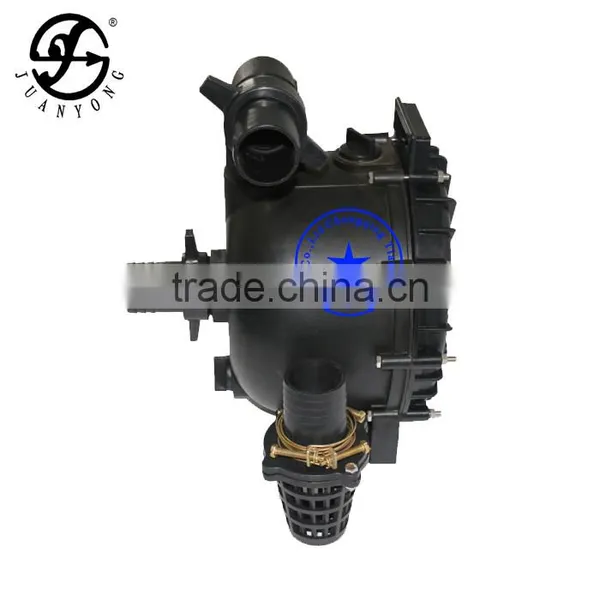

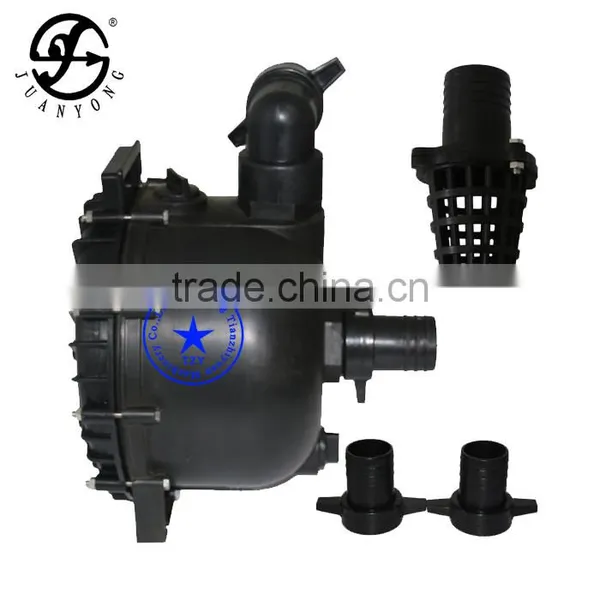

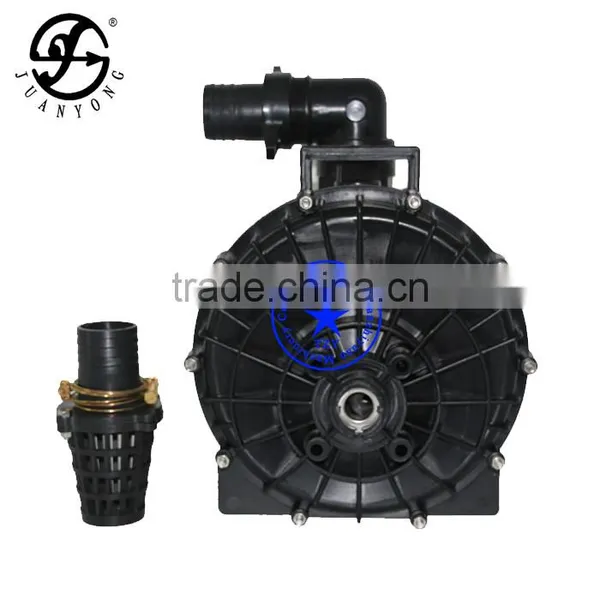

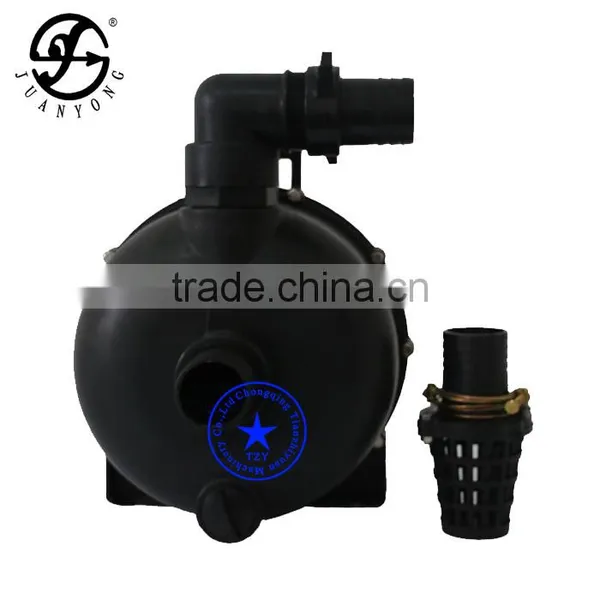

Introduction of water pump

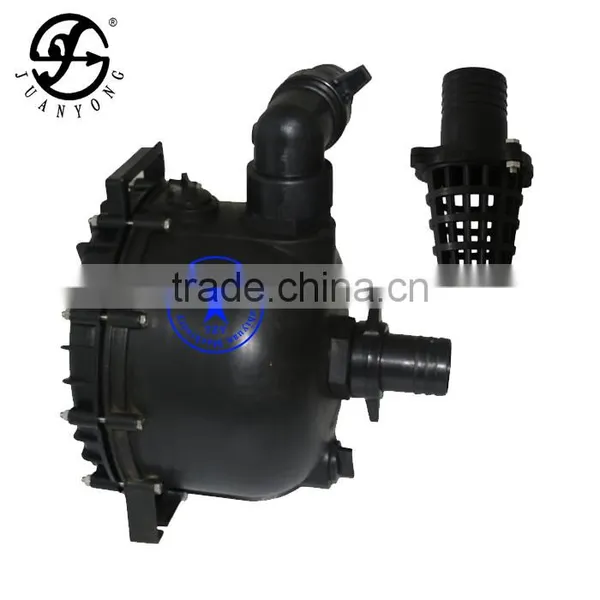

We specilize in water pump for many years, which has enjoyed great popularity in world market.This kind of chemical water pump is designed for submersible with 168F engine, which can work efficiently and stably.
product parameter
ITEM |
FTB50 |
Outlet Size(mm) |
50 |
Inlet Size(mm) |
50 |
Speed(rpm) |
3600 |
Displacement Q.max(m3/h) |
25 |
Lift H.max(m) |
22 |
Suction(m) |
7 |
Engine Model |
168F |

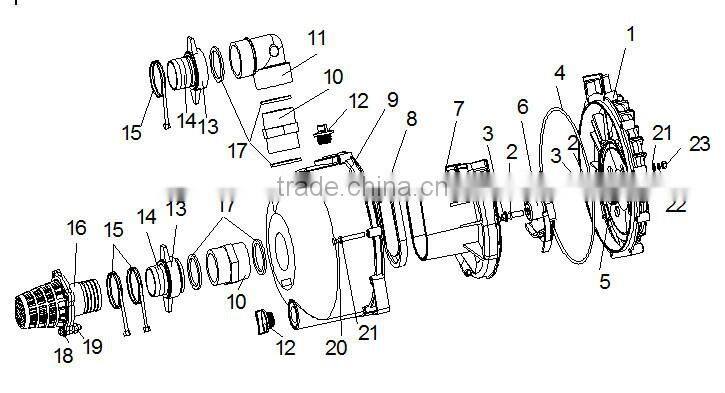

Serial number |
Name
|
Number
|
1 |
Water pump cover |
1 |
2 |
Rubber ringφ12×φ6×3.1 |
4 |
3 |
BoltM8×35 |
4 |
4 |
Pump sealing ring |
1 |
5 |
Mechanical seal / ceramic |
1 |
6 |
Impeller |
1 |
7 |
Eddy shell |
1 |
8 |
Eddy shell sealing ring |
1 |
9 |
Water pump body |
1 |
10 |
Inlet joint |
2 |
11 |
The water outlet joint |
1 |
12 |
Threaded plug pump |
2 |
13 |
Pipe joint connecting nut |
2 |
14 |
Pipe joint |
2 |
15 |
Clamp |
3 |
16 |
Filter cover |
1 |
17 |
Pipe joint sealing gasket |
2 |
18 |
Bolt M6×20 |
2 |
19 |
Nut M6 |
2 |
20 |
Bolt M6×65 |
10 |
21 |
Shim |
20 |
22 |
Spring pad |
10 |
23 |
Nut M6 |
10 |

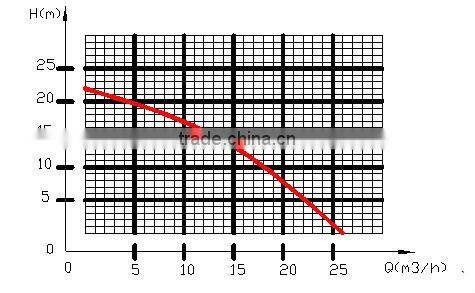

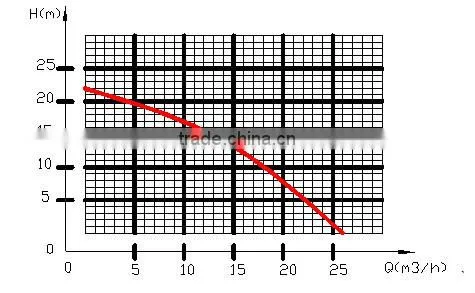

Performance curve
Advantages we have:
A. Experienced slate products supplier.
B. Professional design team and sales department for your service.
C. Alibaba golden supplier, factory recognized by "CE/IS9001"and so no.
D. 7/24 service for you all the question will be dealed within 24 hours.
Benelit you got:
A. stable quality-coming from good material and technic.
B. lower price-not cheapest but the lowest at the same quality.
C. good service-satisfactory service before and after sale.
D. delivery time10-15 days for mass production.
Quality Control:
1: On line inspection, we perform 100% on line inspection during production not to release any problem during production.
2: 100% inspection on each finished products.
3: Customer’s own inspection.
4: Third party inspection.
5: Testing: UT, PT, MT, X-ray testing etc.
6: GB/T6402-91, JB4730-2000, JB4726-2000, JB4727-2000, JB4728-2000 and JB/T5000.8-1998.
Product certification
