Specifications
1.plate air to air heat exchanger price2.H with aluminium core
3.Flexible instalation
4.Home/Office/Meetin
plate air to air heat exchanger price
Specifications
| Packaging Details: | Crate/Wooden case/Carton |
|---|---|
| Delivery Detail: | Within 5 days after received remittance |

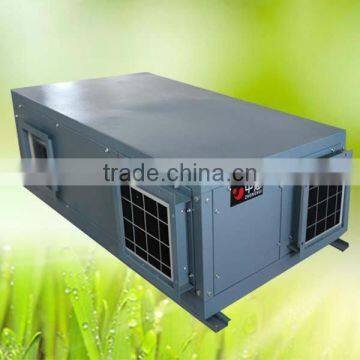

AIR-ERV HVAC Equipment H-02DT Vents system with CE
Product description
HVAC Equipment H Series heat recovery unit is built with high efficient heat exchanger core and AC fan, though the exchange of indoor and outdoor air, the unit not only can provides new air and comfortable temperature to indoor, but also recover energy and save power.

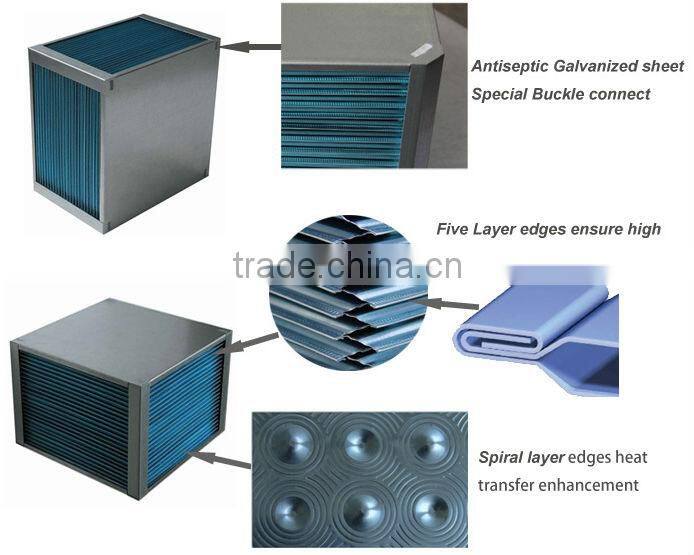

Detail of ERA heat exchanger core
Features:
1.Energy Saving
Crossflow energy recovery unit, use patent technology, improved the energy recovery efficiency, reduced the air flow resistance
2.Application Range
Air flow 200~6000m3/h, suitable for residence, meeting room, office, machine room and industrial occasions which contains stink, dust, bacteria, viruses.
3.Convenient Installation
Machine installed in ceiling, do not occupy in-room space, do not affect interior decoration, various tuyeres, multiple choice, easy to installation.
4.Low Noise
Optimized structure design, used sound-absorbing material and nonmetallic impeller, guaranteed the good static sound effect.
5.Complete Function
Two-way air exchange, air purification, energy recovery and so on, easy to control.
Performance Parameter
| Model | Air Volume(m3/h) | Static Pressure(Pa) | Volts/Hz | Motor Power (Kw) | Temperature Efficiency (%) | Noise [dB(A)] | Dimension (mm) | Re. Weight (kg) |
| H-02D | 200 | 40 | 220V-1-50Hz | 0.016*2 | 77 | 30 | 665x580x293 | 30 |
| H-03D | 300 | 50 | 220V-1-50Hz | 0.03*2 | 77 | 32 | 745x600x293 | 35 |
| H-04D | 400 | 55 | 220V-1-50Hz | 0.04*2 | 78 | 34 | 745x800x293 | 42 |
| H-06D | 600 | 110 | 220V-1-50Hz | 0.15*2 | 76 | 35 | 820x900x293 | 50 |
| H-08D | 800 | 110 | 220V-1-50Hz | 0.15*2 | 76 | 37 | 1110x880x413 | 76 |
| H-10D | 1000 | 130 | 220V-1-50Hz | 0.20*2 | 75 | 38 | 1110x1135x413 | 96 |
| H-16D | 1500 | 150 | 380V-3-50Hz | 0.37*2 | 73 | 48 | 1350x940x500 | 142 |
| H-20D | 2000 | 150 | 380V-3-50Hz | 0.45*2 | 73 | 53 | 1460x1020x500 | 166 |
| H-25D | 2500 | 160 | 380V-3-50Hz | 0.55*2 | 74 | 56 | 1460x1020x600 | 182 |
| H-30D | 3000 | 190 | 380V-3-50Hz | 0.80*2 | 74 | 59 | 1600x1100x540 | 196 |
| H-35D | 3500 | 100 | 380V-3-50Hz | 2345 | 70 | 61 | 1600X1100X620 | 230 |
| H-40D | 4000 | 210 | 380V-3-50Hz | 1.00*2 | 75 | 62 | 1750X1210X600 | 260 |
| H-55D | 5000 | 210 | 380V-3-50Hz | 1.80*2 | 75 | 65 | 1800X1210X760 | 330 |
| H-60D | 6000 | 240 | 380V-3-50Hz | 1.80*2 | 76 | 66 | 1850X1210X900 | 370 |
Installation drawing
CE Certification:
