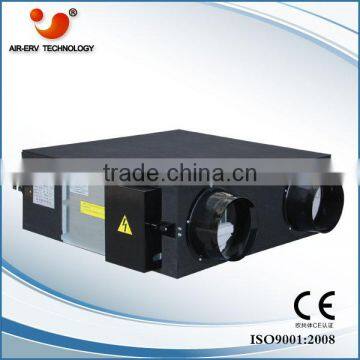

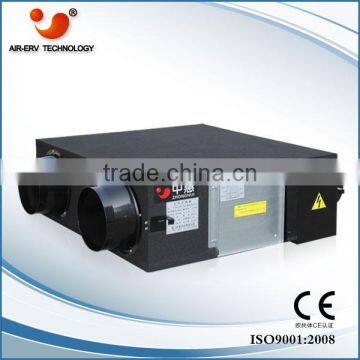

90--400M3/H Air Volume Plate Sensible Heat Exchanger With Direct-current and 5-speed Switch Without LCD Control or Bypass System

Item No:H-02DE

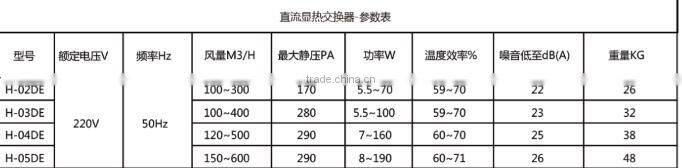

Specification

Function: Heating .cooling

Power: 5.5--100W

Airflow: 90--400m3/h

Warranty: 2years

power swich: 5 files

size: 745x600x293 (mm)

Color: Black /White

Rated voltage: 220V

Maximum static pressure: 280 Pa

Temperature efficiency: 59%--70%

Low noise:23 dB(A)

Net weight:32kg

Feature& Advantage

•  Summer run, the new exhaust cooling air from the air conditioner can be obtained so that the temperature decreases, at the same time, the new wind in the partial pressure of water vapor in the exhaust air to penetrate into effect
• Winter operation, the new wind energy from exhaust air conditioning, the temperature rises, the water vapor in the exhaust air to penetrate into the fresh air
• Energy Recovery.  The quality of the sensible heat exchange core, hydrophilic aluminum foil material, high heat transfer efficiency, easy maintenance, the core lifelong free replacement, no secondary pollution. It offers comfortable temperature of the air at the same time, energy recovery, resource conservation
• Slim. New research and development, user-friendly design, suitable for home installation, simple construction, does not affect the architectural appearance.
• Perfect muted. The introduction of new air duct design, smaller and more compact, can be more effectively suppress noise side after installation prone



Product Description

Have a look at our high energy recovery air recuperator,to see what features and advantages our H-02DT have.

 - Airflow various from 50-2000m3/h,

- With high efficiency Aluminum cross flow plate heat exchanger built-in,efficiency up to 75%.

- Suspended installation,easy installtion to the roof, balcony, basement, etc.

- Optional bypass-function

- Optional  standard controller and  intelligent controller

-With DC motor and EC centrifugal fans, low energy consumption and high static pressure.

-Long service life,generally 15 years

************************************************************************************************************

If you are insteresting in our high energy recovery air recuperator,click here to contact with Jenny Yang.

************************************************************************************************************

What benifits can you get when you purchase our high energy recovery air recuperator?

You can save electricity power 30W every hour.Every day save electricity power 0.7KWH.One year

save electricity power 252 KWH.

Why our high energy recovery air recuperator can have such high efficiency?

Have a look at our high energy recovery air recuperator explanation below.

Model	Air Volume (m3/h)		Static Pressure  (Pa)		Volts/Hz	Input Power ( W )		TemperatureEfficiency ( % )	Noise [dB(A)]		Dimension (mm)
	High	Low	High	Low		High	Low		High	Low	L	W	H
H-02DT	200	150	70	75	220V/50Hz	70	55	77	30	27	665	580	293
H-03DT	300	150	50	50	220V/50Hz	105	75	77	32	29	745	600	293
H-04DT	400	250	75	50	220V/50Hz	155	105	78	34	30	745	800	293
H-06DT	500	300	100	70	220V/50Hz	190	150	76	35	32	820	900	293
H-08DT	800	600	120	100	220V/50Hz	410	295	76	37	35	1110	880	413
H-10DT	1000	700	80	80	220V/50Hz	435	330	75	38	36	1110	1135	413

************************************************************************************************************

If you are insteresting in our high energy recovery air recuperator,click here to contact with Jenny Yang.

************************************************************************************************************

Installation

Heat exchanger of our high energy recovery air recuperator

Working principle of our high energy recovery air recuperator
AIR-ERV heat & energy recovery ventilator can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.

************************************************************************************************************

If you are insteresting in our high energy recovery air recuperator,click here to contact with Jenny Yang.

************************************************************************************************************

  AIR-ERV Factory

AIR-ERV is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 1996, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to ShangHai foreign trade building and Guangdong exhibition center, works together with domestic and international brands like Midea, Haier, Hitachi, etc.

AIR-ERV partner

AIR-ERV cooperate with world famous brand or offer OEM service including Midea,Shenling,Daikin, etc.

AIR-ERV certificate

AIR-ERV products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, Eurovent, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.

Use our high energy recovery air recuperator to bring you health and fresh air.
