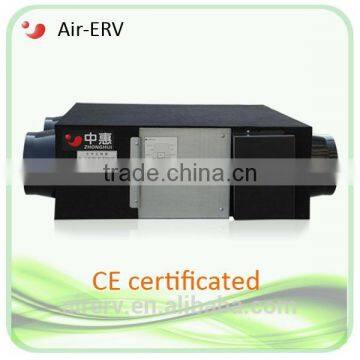

600--800M3/H Air Volume AC Heat Exchanger Energy Recovery Ventilators

Item No:H-08DT

Specification

Type:Plate and  hexagon  heat exchanger supplier

weight: 76kg

Power Source: Electric

Certification: CE

Power type:AC

Application: Heat and energy recovery

Rated air flow: 600--800 M3/H

static pressure: 130 Pa

Input power: low:400W/ high415W

Temperature efficiency: low:70%/ high72%

Operating noise: low:35dB/ high37dB

Size(length/width/hight) :1110x880x413 mm

power : 220V --1--50Hz

Product Description



Have a look at our air recuperator heat exchanger explanation below.

Model	Air Volume (m3/h)		Static Pressure  (Pa)		Volts/Hz	Input Power ( W )		TemperatureEfficiency ( % )	Noise [dB(A)]		Dimension (mm)
	High	Low	High	Low		High	Low		High	Low	L	W	H
H-02DT	200	150	70	75	220V/50Hz	70	55	77	30	27	665	580	293
H-03DT	300	150	50	50	220V/50Hz	105	75	77	32	29	745	600	293
H-04DT	400	250	75	50	220V/50Hz	155	105	78	34	30	745	800	293
H-06DT	500	300	100	70	220V/50Hz	190	150	76	35	32	820	900	293
H-08DT	800	600	120	100	220V/50Hz	410	295	76	37	35	1110	880	413
H-10DT	1000	700	80	80	220V/50Hz	435	330	75	38	36	1110	1135	413

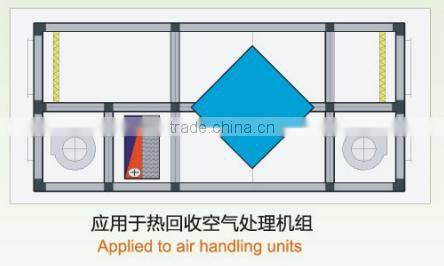

Heat exchanger of our  air recuperator heat exchanger

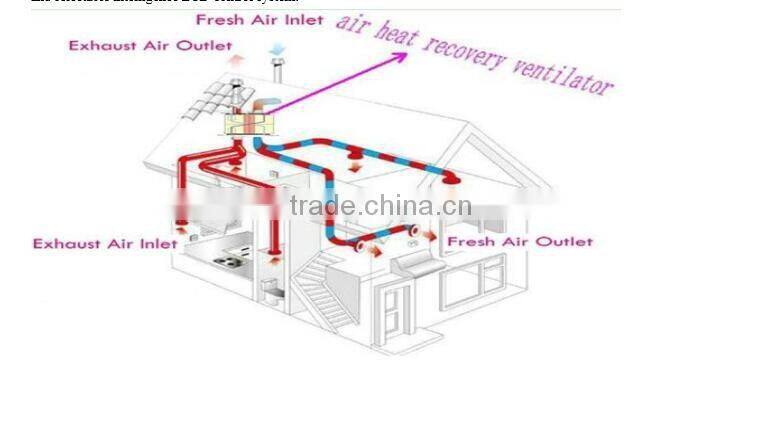

Working principle of our air recuperator heat exchanger
AIR-ERV heat & energy recovery ventilator can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.

  AIR-ERV Factory

AIR-ERV is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 1996, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to ShangHai foreign trade building and Guangdong exhibition center, works together with domestic and international brands like Midea, Haier, Hitachi, etc.

AIR-ERV partner

AIR-ERV cooperate with world famous brand or offer OEM service including Midea,Shenling,Daikin, etc.

AIR-ERV certificate

AIR-ERV products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, Eurovent, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.

Use our air recuperator heat exchanger to bring you health and fresh air.
