Help Center500--600M3/H Air Volume AC Heat Exchanger Energy Recovery Ventilators
Related Products
-
300--400M3/H Air Volume AC Heat Exchanger Energy Recovery VentilatorsUS$ 250 - 1,000MOQ: 1 Piece -
250--300M3/H Air Volume AC Heat Exchanger Energy Recovery VentilatorsUS$ 250 - 1,000MOQ: 1 Piece
-
150-650M3/H Air Volume Plate Sensible Heat Exchanger in Direct-current and 5-speed Switch Without LCD Control or Bypass SystemUS$ 1 - 1,000MOQ: 1 Piece
-
120-520 M3/H Air Volume Plate Sensible Heat Exchanger in Direct-current and 5-speed Switch Without LCD Control or Bypass SystemUS$ 1 - 1,000MOQ: 1 Piece
-
90--400M3/H Air Volume Plate Sensible Heat Exchanger With Direct-current and 5-speed Switch Without LCD Control or Bypass SystemUS$ 1 - 1,000MOQ: 1 Piece
Item No:H-06DT
Specification
Type:Plate and hexagon heat exchanger supplier
weight: 50kg
Power Source: Electric
Certification: CE
Power type:AC
Application: Heat and energy recovery
Rated air flow: 500--600 M3/H
static pressure: 100 Pa
Input power: low:192W/ high200W
Temperature efficiency: low:70%/ high71%
Operating noise: low:34dB/ high35dB
Size(length/width/hight) :820x900x293 mm
power : 220V --1--50Hz
Have a look at our air recuperator heat exchanger explanation below.
Model | Air Volume (m3/h) | Static Pressure (Pa) | Volts/Hz | Input Power ( W ) | TemperatureEfficiency ( % )
| Noise | Dimension (mm) | ||||||
High | Low | High | Low | High | Low | High | Low | L | W | H | |||
H-02DT | 200 | 150 | 70 | 75 | 220V/50Hz | 70 | 55 | 77 | 30 | 27 | 665 | 580 | 293 |
H-03DT | 300 | 150 | 50 | 50 | 220V/50Hz | 105 | 75 | 77 | 32 | 29 | 745 | 600 | 293 |
H-04DT | 400 | 250 | 75 | 50 | 220V/50Hz | 155 | 105 | 78 | 34 | 30 | 745 | 800 | 293 |
H-06DT | 500 | 300 | 100 | 70 | 220V/50Hz | 190 | 150 | 76 | 35 | 32 | 820 | 900 | 293 |
H-08DT | 800 | 600 | 120 | 100 | 220V/50Hz | 410 | 295 | 76 | 37 | 35 | 1110 | 880 | 413 |
H-10DT | 1000 | 700 | 80 | 80 | 220V/50Hz | 435 | 330 | 75 | 38 | 36 | 1110 | 1135 | 413 |
************************************************************************************************************
If you are insteresting in our Sensible heat recovery ventilator HRV,click here to contact with Jenny Yang.
************************************************************************************************************

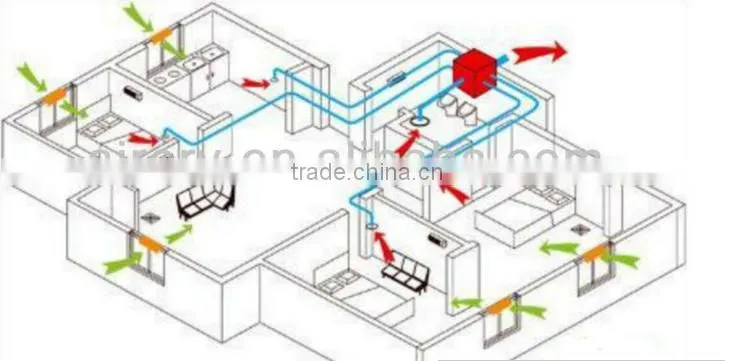

Installation

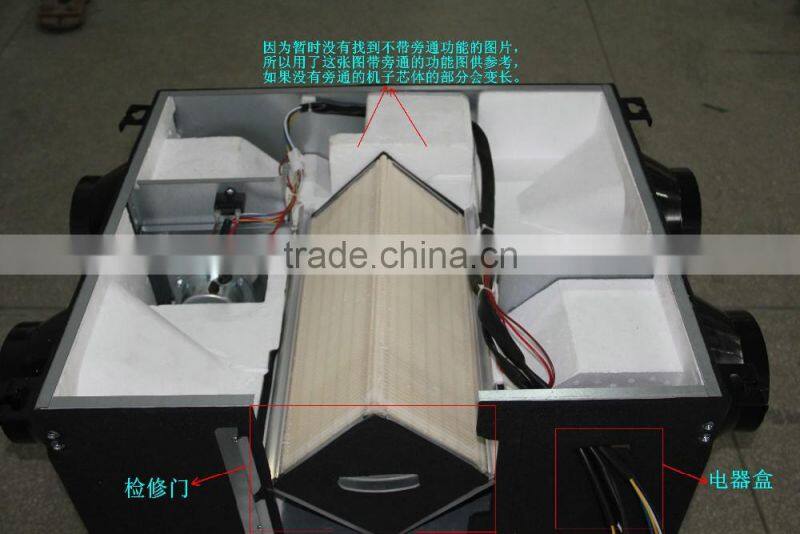

Heat exchanger of our air recuperator heat exchanger

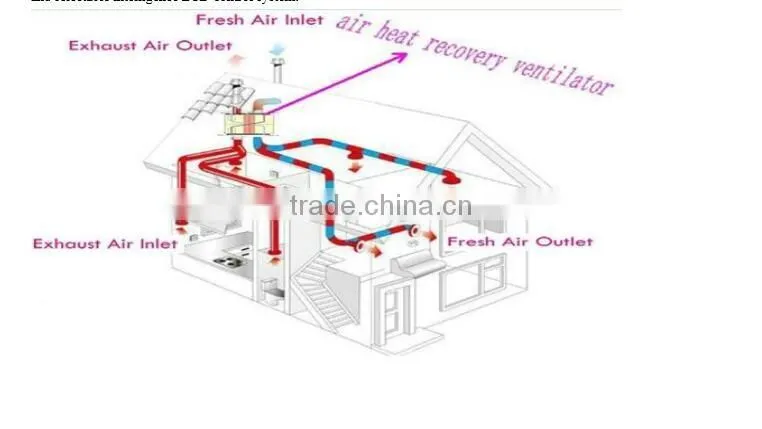

Working principle of our air recuperator heat exchanger
AIR-ERV heat & energy recovery ventilator can expel the stale air indoor out of room, meanwhile supplying the fresh air outside into the room, by using the advanced heat/energy recovering technology, the energy can exchange taking advantage of the difference of the temperature and humidity between indoor and outdoor air. By this means, it can not only smooth away the problem of indoor pollution, but also saving energy.
************************************************************************************************************
AIR-ERV Factory
AIR-ERV is one of the best manufacturer in ERV/HRV, heat exchanger and AHU area in China, founded in 1996, areas covered more than 30,000 square meters, turnover of 2012 is 42 million dollars, we have enthalpy testing lab. for products test. As a leader in energy/heat recovery equipments, we cooperate with more than 30 famous companies who located in Europe, the Middle east, Korea, Southeast Asia, Taiwan, etc. supplied equipment to ShangHai foreign trade building and Guangdong exhibition center, works together with domestic and international brands like Midea, Haier, Hitachi, etc.
AIR-ERV partner
AIR-ERV cooperate with world famous brand or offer OEM service including Midea,Shenling,Daikin, etc.
AIR-ERV certificate
AIR-ERV products stand for TOP quality in heat recovery ventilation filed in China, certificated by CE, Eurovent, ISO and other different approved tests like anti-flaming test, anti-mold test, energy saving product test. Etc.
We care about all the details in the product process.
As air recuperator heat exchanger has the soft character to cause the easy deformation and broken, we focus on the safe packing in different transportation way.
| Full container | PVC bag + strong carton (pallet for option) |
| LCL | PVC bag + special strong carton + pallet |
| By air / courier | PVC bag + carboard inserted in carton + special strong carton |
1. AIR-ERV can supply OEM service for customers.
2. Produce ERV/HRV, heat exchanger according to customer's special demands.
3. Supply spare parts according to order quantity.
4. General testing and operational test carried out for every units before delivery.
5. Long warranty period.
Use our air recuperator heat exchanger to bring you health and fresh air.
