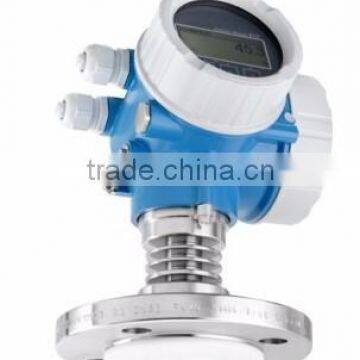

Radar Measurement Time-of-Flight Micropilot FMR52 photo-2

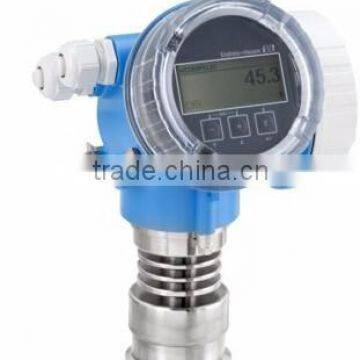

Radar Measurement Time-of-Flight Micropilot FMR52 photo-3
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Model Number:
FMR52
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Xi'an
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Model Number FMR52

Radar measurement Time-of-Flight Micropilot FMR52



For level measurement in aggressive liquids or applications with hygiene requirements



Product Overview


For applications in aggressive liquids Micropilot FMR52 offers extraordinary advantages with its completely PTFE-filled and flush-mounted horn antenna. The FMR52 is also the sensor for hygiene-sensitive applications in the food and life sciences industry - ASME BPE, USP Class VI, 3-A and EHEDG approvals. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors.

Benefits

  • Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)

  • Reliable non-contact measurement even for changing product and process conditions

  • HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics

  • Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation

  • Seamless integration into control or asset management systems

  • Intuitive, menu-guided operation concept (on-site or via the control system)

  • World's easiest proof test concept for SIL and WHG saves time and cost

Field of application

Flush-mounted, completely PTFE-encapsulated horn antenna.

  • Process connections: Flush-mounted with cladded flange, process connections for hygiene requirements (Tri-Clamp, 11851)

  • Temperature: -40 to +200°C (-40 to +392°F)

  • Pressure: -1 to +16bar (-14.5 to +232psi)

  • Maximum measuring range: 40m (131ft), 60m (197ft) for enhanced dynamics

  • Accuracy: ±2mm

  • K-band: 26GHz

  • International explosion protection certificates, WHG overfill prevention, SIL, 3-A, EHEDG,
    CoC-ASME BPE, ship building approval

Technical information

Measuring PrincipleLevel radar
Characteristic / ApplicationPremium device for continuous non-contact level measurement, in which aggressive media are used as well as for highest hygiene requirements (ASME BPE, USP Class VI);
Flush mounted, fully PTFE filled horn antenna
Supply / Communication2-wire (HART / PROFIBUS PA/ FOUNDATION Fieldbus)
4-wire (HART)

FrequencyK-band (~26 GHz)
Accuracy+/- 2 mm (0.08 in)
Ambient temperature-40...+80 °C
(-40...+176 °F)
Process temperature-40...+200 °C
(-40...+392 °F)
Process pressure absolute / max. overpressure limitVacuum...16 bar
(Vacuum...232 psi)
Main wetted partsPTFE
Process connectionFlange:
DN50...DN150
ASME 2"...6"
JIS 10K
Process connection hygienicTri-Clamp ISO2852
DIN11851
Max. measurement distanceStandard: 40 m (131 ft)
With enhanced dynamics: 60 m (197 ft)
Output4...20 mA HART
PROFIBUS PA
FOUNDATION Fieldbus

Certificates / ApprovalsATEX, FM, CSA, CSA C/US, IEC Ex, NEPSI, INMETRO, KC
Overfill prevention WHG
SIL
EN 10204-3.1
3A, EHEDG
CoC-ASME BPE
OptionsDisplay,
Customized parameterization
Gas-tight feed through
PWIS free
SpecialitiesSIL 2 according to IEC 61508,
Safety and reliability with Multi-Echo Tracking,
HistoROM
Application limitsMaximum measuring range is dependent on the tank form and/or application

Ammoniacal gas phase:
FMR54 in stilling well
Strong buildup formation:
FMR54 with air purge
Custody transfer measurement:
FMR5xx
